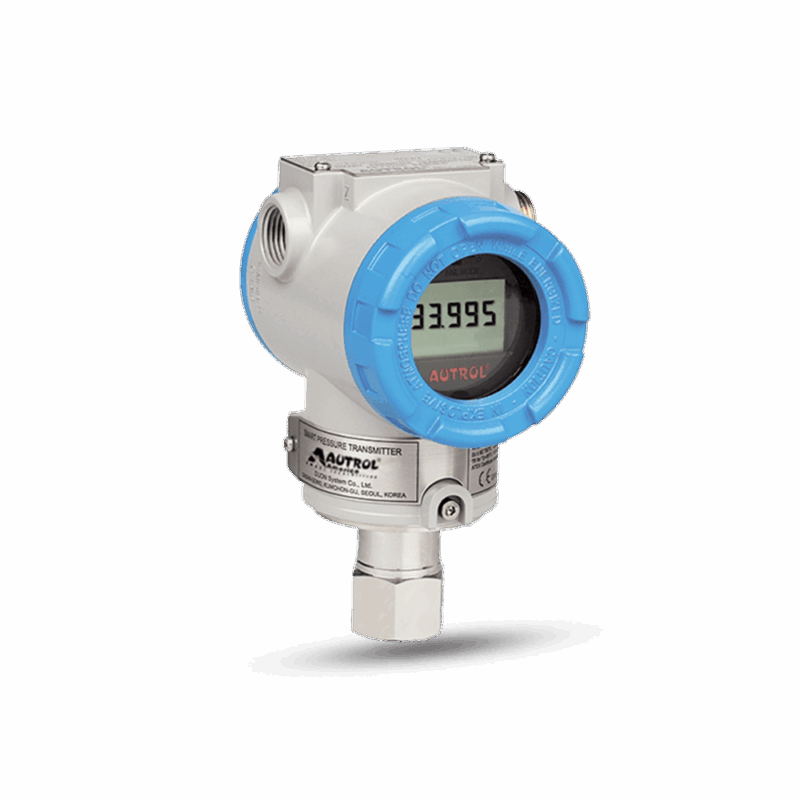

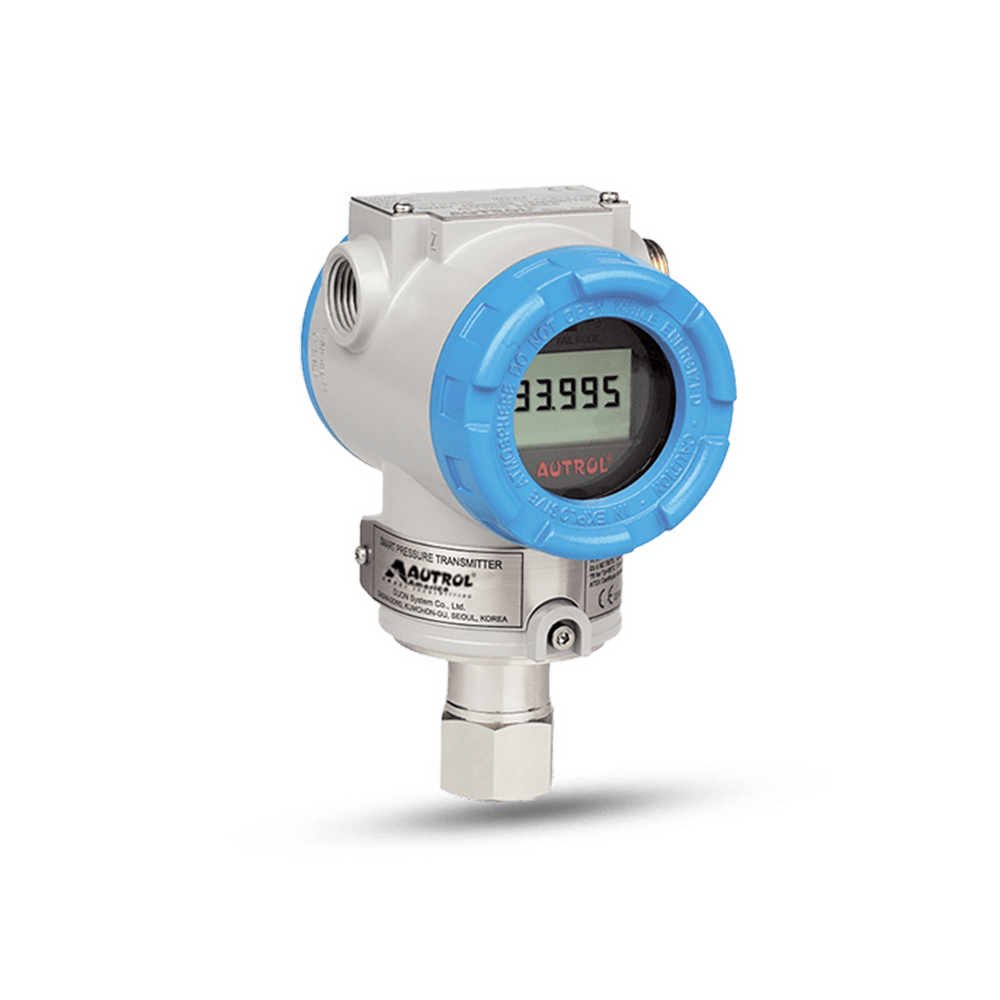

AUTROL APT3200-G5M11F11S1-M1 SMART PRESSURE TRANSMITTER APT3200 SERIES
Model Name: APT3200
Protocol: Digital Communication, HART 5
Description
Specifcations
| Model Name | APT3200 |
| Protocol | Digital Communication, HART 5 |
| Trim ability | Zero, DAC, FULL |
| Power supply & Load Requirement | 250 to 550 ohm @ 24 Vdc, Loop Powered |
| Failure Mode | Low ≤ 3.78 mA, High ≥ 21.1 mA |
| External Buttons | Zero & Span 2 buttons for device configuration |
| Process Temp. limit | -40 to 120℃ ( -104 to 248℉ ) |
| Firmware Version | 6.X, 7.X |
| Range Abilitiy | 100 : 1 |
| Stability | ±0.125% URL for 36 months |
Function
| Type | Gauge/ Absolute(PIT), Level (LIT), High Static pressure |
| Certificate | SIL2 (TUV, FMEDA), Ex d, Ex ia, FM, ATEX, TR CU(EAC), INMETRO, CE, Rohs, BV, LR, KR, DNV, ABS, KCs, IP66/67, NEMA 4X |
| Feature | 4 to 20mA, HART, Loop Powered |
| Accuracy | ±0.075% (option ± 0.04%) of CS* 3 lines LCD display, Self Diagnostic Function, External Buttons, DAC, Zero Trim, Eng mode |
| Application | Pressure, Level measurement for Oil & Gas(up & downstream), Liquid, Water, Maine & offshore, Vessel, Power, Chemical Plants, and Refinery |
