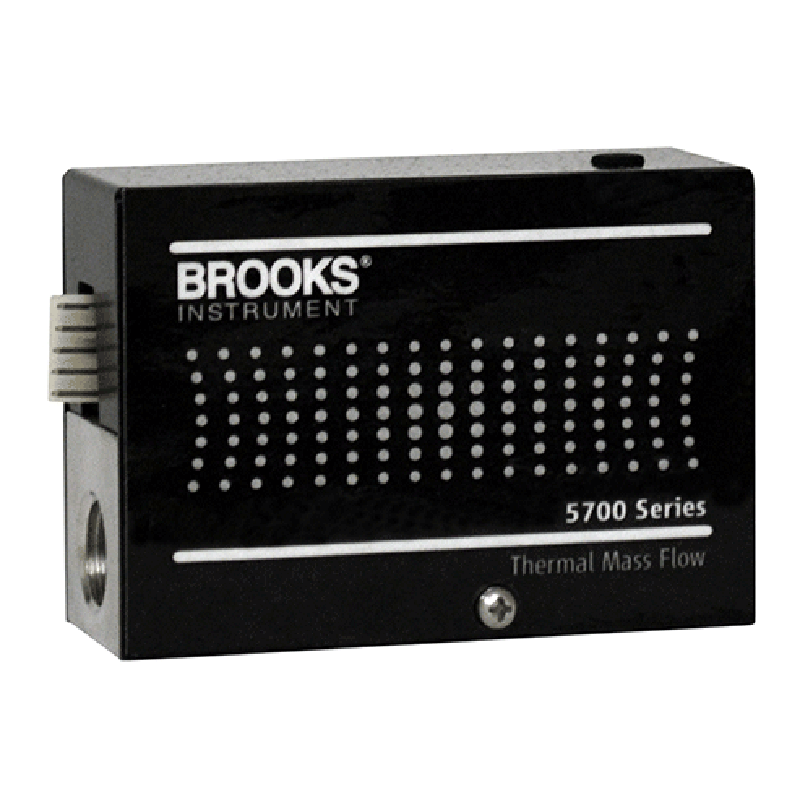

BROOKS 5700 Series Elastomer Sealed Mass Flow Meters
Cost-effective gas flow metering for targeted applications.
Description
Cost-effective gas flow metering for targeted applications.
Models 5700
| Flow Range (Full Scale Capacity) | 0 sccm -50 slpm |
| Accuracy | 5% full scale including linearity |
| Repeatability | 0.5% F.S. |
| Response Time | N/A |
| Max Pressure | 150 psig |
| Analog Communication | 0-5V |
Features:
- Metering only functionality
- Wide range of flow rates
- Stainless steel wetted materials
- Single-sided power input
- 0.5 Volt output signal
Benefits:
- Mass flow measurement without the need for temperature or pressure correction
- Suitable for most applications
- Rugged, all stainless steel construction with no moving parts, providing superior corrosion resistance and long-term reliability for compatibility with various process/test gases
- Simple and cost-effective installation
- Electrical output signal enables flow indication, trending, and totalizing
- Excellent choice for upgrading from variable area flow meters
Applications:
- Purge gas measurement
- Gas and moisture analyzers
- Particle monitors
- Medical/anesthesiology oxygen systems
- Aeration/foaming systems
