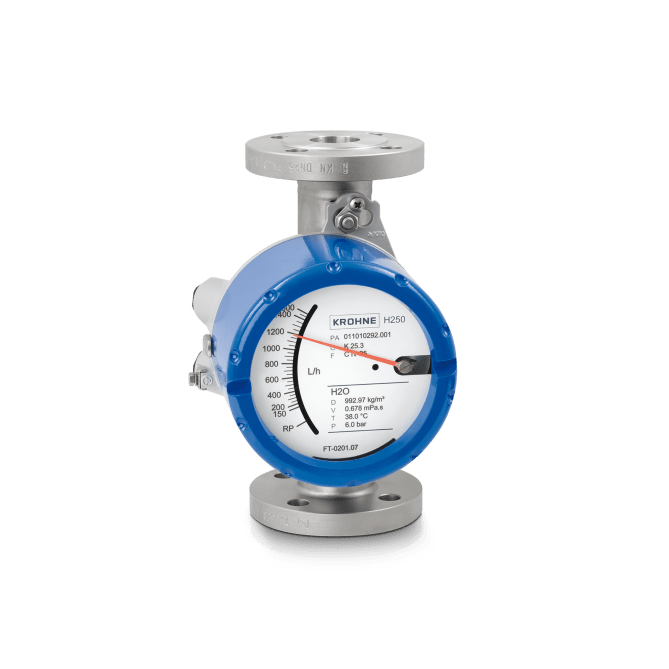

KROHNE H250 M40 Variable area flowmeter for liquids and gases
Product family name: H250
Measured media: Measured media
Description
Specifications
Depending on selected device configuration
Operating conditions
| Process pressure | max. 1000 barg(14500 psig) |
| Process temperature | -196…+400°C(-320…+752°F) |
Materials
| Measuring tube | Austenitic stainless steel (1.4404/316L), Austenitic stainless steel (1.4435/316L), Austenitic alloy (2.4610/Alloy C4), Nickel alloy (2.4360/Alloy 400), Titanium alloy (3.7035/Ti-Grade 2), Austenitic stainless steel (1.4571/316Ti), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Nickel-chromium-molybdenum-niobium alloy (2.4856/Alloy 625), Austenitic stainless steel (1.4547/6Mo) |
| Gaskets | None |
| Process connection | Austenitic stainless steel (1.4404/316L), Austenitic stainless steel (1.4571/316Ti), Nickel alloy (2.4360/Alloy 400), Austenitic alloy (2.4610/Alloy C4), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Nickel-chromium-molybdenum-niobium alloy (2.4856/Alloy 625), Titanium alloy (3.7035/Ti-Grade 2), Austenitic stainless steel (1.4547/6Mo) |
Process connections
| Flange connections | EN (1092-1): DN15…150 ASME (B 16.5): ½…6″ JIS (B 2220): 15…100A |
| Flange connections | EN (1092-1): DN15…150 ASME (B 16.5): ½…6″ JIS (B 2220): 15…100A |
| Thread connections | Female: G½, G¾, G1¼, G1, G1½, G1¾, G2 ½ NPT, ¾ NPT, 1 NPT, 2 NPT |
| Hygienic connections | Clamp (DIN 32676): DN15, DN25, DN32, DN40, DN50, DN80 Clamp (ISO 2852): 25, 40, 51, 76.1 Tri-Clamp: ½”, 1″, 2″; Threaded ferrule (DIN 11851): DN15, DN25, DN40, DN50, DN80 Threaded ferrule (DIN 11864-1A,series C): 1″, 2″ Flange with groove (DIN 11864-2): DN15, DN25, DN50, DN80 Threaded ferrule (SMS 1146): 25 mm, 51 mm, 76 mm |
Approvals/Standards
| Certificates/Approvals Others | CRN, NACE |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex, cFMus, INMETRO, KCs, PESO, JPNEx |
| Certificates/Approvals Hygienic | FDA, EC 1935/2004, GB 4806 |
| Certificates/Approvals Marine | RINA |
| Certificates/Approvals Nuclear | Nuclear qualification on request (e.g. acc. to ASME III, RCC-M/E, etc.) |
| Certificates/Approvals Safety | SIL 2 |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse |
| Digital outputs | FOUNDATION™ fieldbus, HART®, Profibus-PA |
