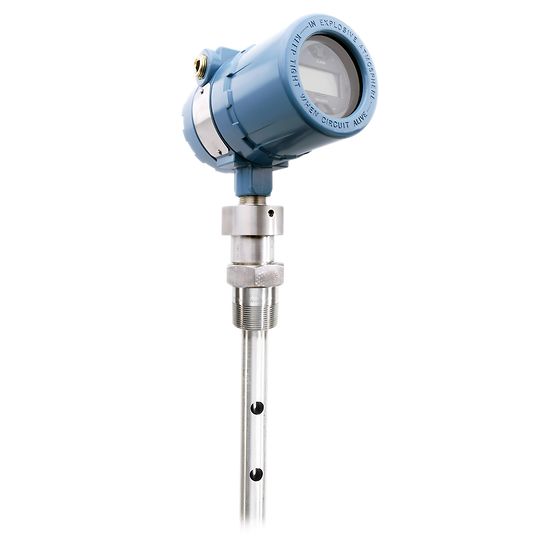

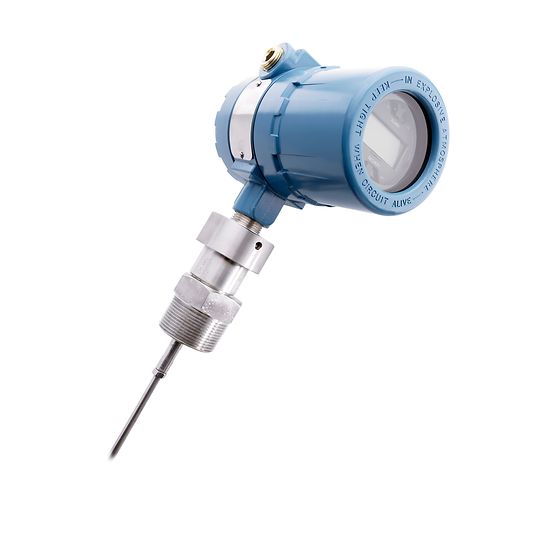

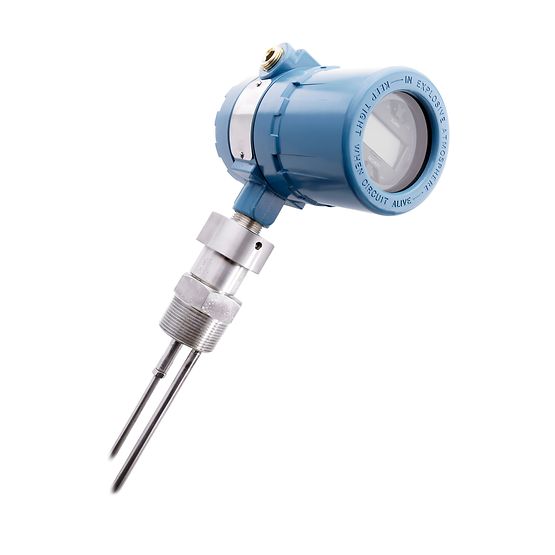

EMERSON Rosemount 3302 Level Transmitter – Guided Wave Radar
The Rosemount 3302 Level Transmitter offers a dependable and cost-effective solution for level and interface measurements in liquid applications. This transmitter is designed without any moving parts, eliminating the need for calibration and ensuring its resilience to process conditions. With its capability for top-down level and interface measurements, the Rosemount 3302 puts you in complete control of your level monitoring.
The Rosemount 3302 Level Transmitter offers a dependable and cost-effective solution for level and interface measurements in liquid applications. This transmitter is designed without any moving parts, eliminating the need for calibration and ensuring its resilience to process conditions. With its capability for top-down level and interface measurements, the Rosemount 3302 puts you in complete control of your level monitoring.
Specifications
| Operating Pressure |
Full vacuum to 580 psi (Full vacuum to 40 bar)
|
| Operating Temperature | -40 to 302°F (-40 to 150°C) |
| Communication Protocol | 4-20 mA/HART™, Modbus® |
| Probe Types | Rigid single lead, Segmented single lead, Flexible single lead, Flexible twin lead, Coaxial, PTFE coated probes |
Download
