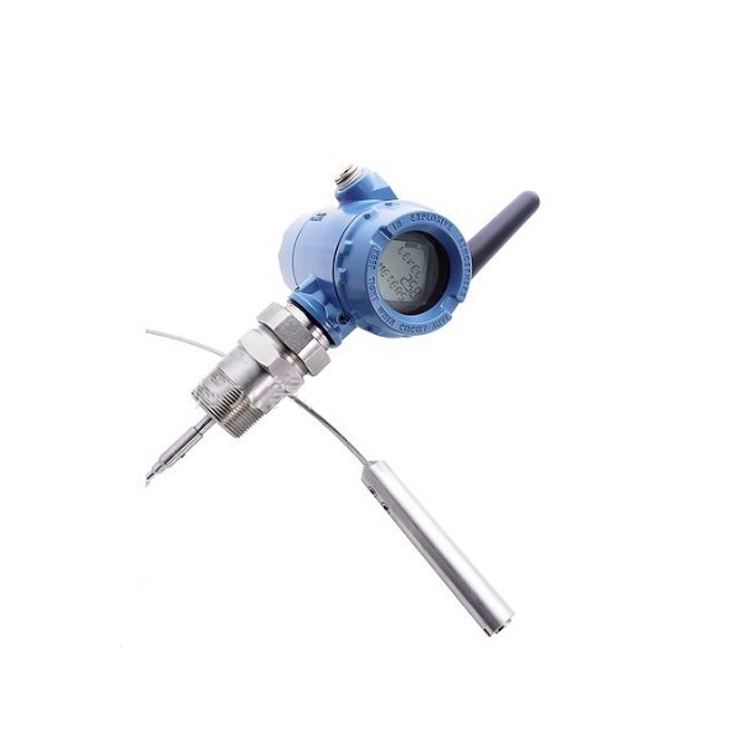

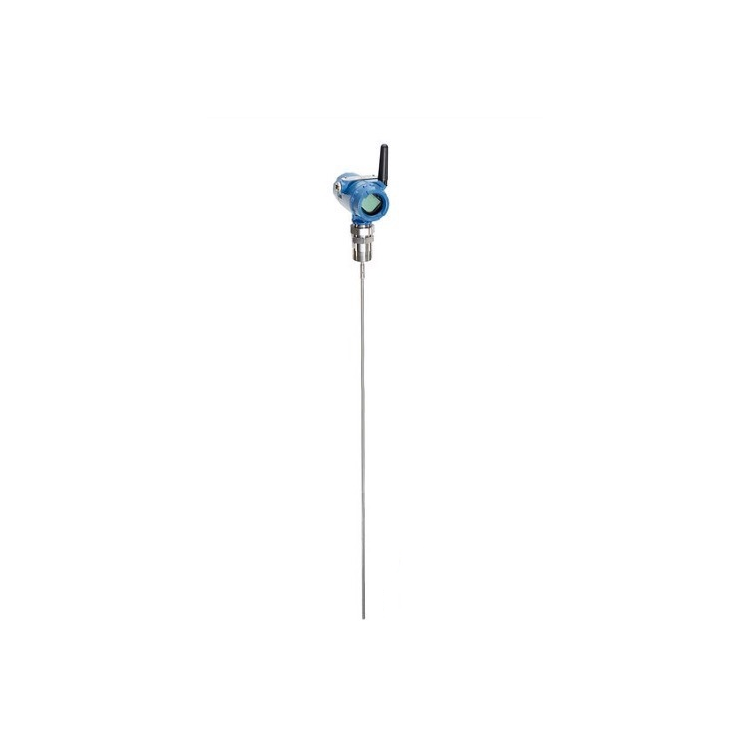

EMERSON Rosemount 3308 Wireless Level Transmitter – Guided Wave Radar

The Rosemount 3308 Wireless Level Transmitter revolutionizes level and interface measurements by enabling automation in previously inaccessible locations. By automating processes that were previously challenging to automate, cost savings of up to 60% can be achieved. The Rosemount 3308 offers numerous advantages, including easy installation without the need for wiring, calibration-free operation, and immunity to changing process conditions. With remote access to process data and enhanced diagnostics for predictive maintenance, the need for visual inspections is eliminated.

Category: EMERSON ROSEMOUNT

Send Inquiry

Description

Automates level & interface measurements in hard to reach locations, simple no wire installation with a self-organizing wireless network.

Product Description:
The Rosemount 3308 Wireless Level Transmitter revolutionizes level and interface measurements by enabling automation in previously inaccessible locations. By automating processes that were previously challenging to automate, cost savings of up to 60% can be achieved. The Rosemount 3308 offers numerous advantages, including easy installation without the need for wiring, calibration-free operation, and immunity to changing process conditions. With remote access to process data and enhanced diagnostics for predictive maintenance, the need for visual inspections is eliminated.

Specifications

Accuracy	± 0.12 in. (3 mm)
Repeatability	± 0.08 in. (2 mm)
Measurement Range	Up to 56 ft (17 m)
Operating Pressure	Full vacuum to 580 psi (Full vacuum to 40 bar)
Operating Temperature	-40 to 302°F (-40 to 150°C)
Communication Protocol	WirelessHART®
Battery Life	9 years @ 1 min update rate
Diagnostics	-Enhanced diagnostics which enables proactive maintenance
Probe Types	Rigid single lead, Segmented single lead, Flexible single lead, Flexible twin lead, Coaxial, PTFE coated probes
