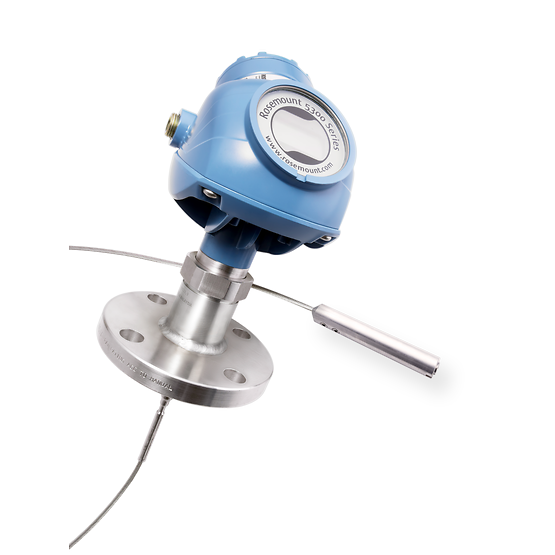

EMERSON Rosemount 5300 guided wave radar level gauge 5302 contact radar level gauge

The Rosemount 5300 Level Transmitter is specifically designed for challenging level and interface measurements on liquids, slurries, and solids. It provides exceptional reliability and incorporates advanced safety features. The Rosemount 5300 offers numerous advantages, including easy installation, calibration-free operation, and resilience to process conditions. Additionally, it is SIL 2 certified, making it an optimal choice for safety-critical applications. With its robust construction and powerful built-in diagnostics, the Rosemount 5300 allows you to prioritize your plant operations with confidence.

Category: EMERSON ROSEMOUNT

Send Inquiry

Description

Liquid and semi-liquid levels and/or liquid/liquid interfaces or solid material levels

5301 type: Used for liquid level or immersion interface measurement.
5302 type: Used for liquid level and interface measurement.
5303 type: Used for solid material level measurement.

Specifications

Measurement principle	Time domain reflection (TDR).
Microwave output power	Rated 300 µW, maximum 45 mW.
Telecommunications (FCC and R&TTE)	Compliant with FCC Part 15 (1998) Subpart B and R&TTE (EU Directive 99/5/EC). It is considered an unintentional radiator according to Part 15.
Humidity	0-100% relative humidity.
Start time	<40 seconds.
Internal power consumption	<50 mW during normal operation.
Output	Two-wire system, 4-20 mA. The stacking of digital process variables in a 4-20 mA signal is suitable for any host compliant with the HART protocol. The HART signal can be used in multi-point mode.
Signal wiring	It is recommended to use shielded twisted pair cables, 18-12 AWG, for output cables.
HART triple loop	By sending a digital HART signal to the optional HART triple loop, up to three additional 4-20 mA analog signals can be obtained.
Smart wireless THUM adapter	The optional smart wireless THUM adapter can be directly installed on the transmitter or used with a remote installation kit. It supports IEC 62591 (WirelessHART) for accessing multivariate data and diagnostic information, adding wireless capabilities to almost any measurement point.

External power supply
HART input voltage (UI)	16-42.4 Vdc (16-30 Vdc in intrinsically safe applications and 20-42.4 Vdc in flameproof/flameproof applications). For fire/explosion-proof installations, the Rosemount 5300 series transmitters have built-in isolation barriers, eliminating the need for external isolation barriers. When equipped with an intelligent wireless THUM adapter, it increases the voltage drop by up to 2.5 Vdc in the connected circuit.
Minimum input voltage (UI) at different currents
Current	3.75 mA
Non-hazardous and intrinsically safe installations	16 Vdc
Explosion-proof/fireproof installations	20 Vdc
Current	21.75 mA
Non-hazardous and intrinsically safe installations	11 Vdc
Explosion-proof/fireproof installations	15.5 Vdc
Integrated display screen (option code M1)	The integrated digital display can switch between the following values: liquid level, air height, volume, internal temperature, interface distance, interface liquid level, maximum amplitude, interface thickness, range percentage, and analog current output.
Remote indication	Data can be read from the integrated display screen option for 4-20 mA/HART or remotely using the Rosemount 751 field signal indicator. For FOUNDATION™ Fieldbus, it can be read using the Rosemount 752 remote indicator.
Output unit	Liquid level, interface, and air height: Feet, inches, meters, centimeters, or millimeters.
Liquid level change rate	Feet/second, meters/second, inches/minute, meters/hour.
Volume	ft³, inches, US gallons, English gallons, yd³, m³, or liters.
Temperature	°F and °C.
Diagnosis	The transmitter includes diagnosis and alarm functions for hardware and software errors, electronic device temperature, waveguide rod faults, as well as invalid measurement and configuration error diagnosis. The echo curve and variable recording function, including signal strength, aid in online fault diagnosis.
Advanced Diagnosis	The signal quality detection function monitors the decrease in liquid level signal quality related to excessive noise. It helps in making guide rod cleaning plans or detecting and monitoring turbulence, boiling, foam, and emulsification. This feature can be ordered by selecting the D01 or DA1 options.
Damping	0-60 seconds (2 seconds default).
Storage temperature	-50 °C to 90 °C (-58 °F to 194 °F) with integrated display screen: -40 °C to 85 °C (-40 °F to 185 °F).
