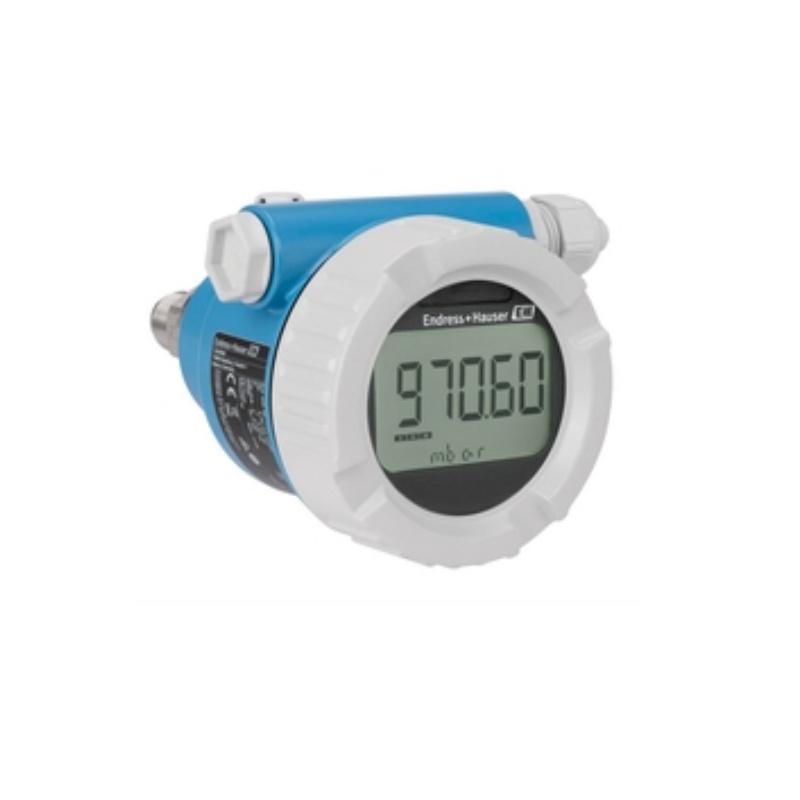

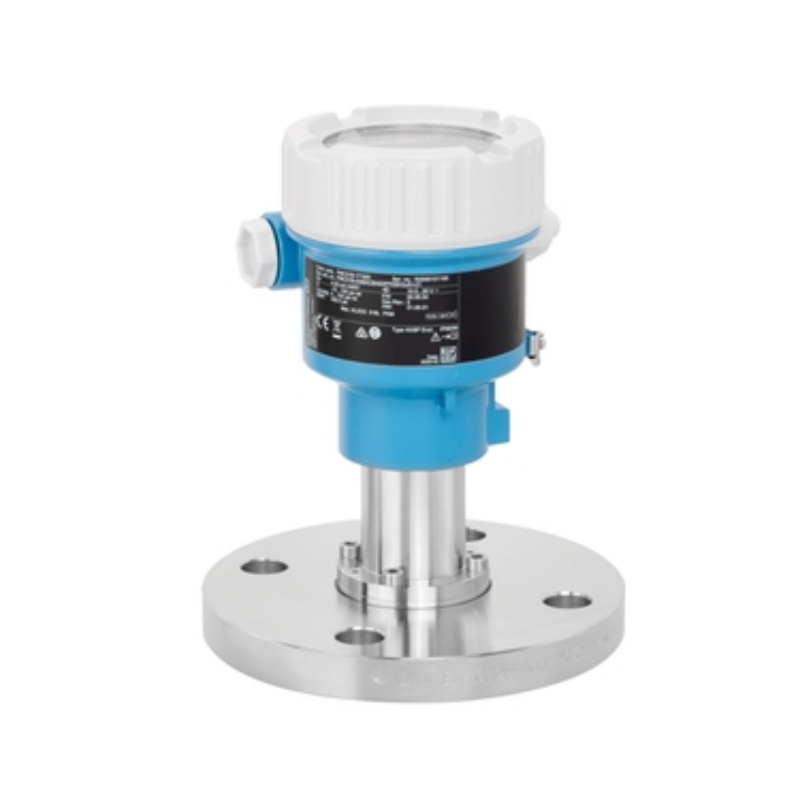

Endress+Hauser Cerabar PMC51B – pressure transmitter

Smart transmitter with ceramic membrane for highly accurate measurement of liquids and gases

Category: E+H

Smart transmitter with ceramic membrane for highly accurate measurement of liquids and gases

Characteristic	Pressure transmitter with ceramic process membran for accurate measurement in liquid or gases. Intuitive and clear wizard for commissioning
Supply voltage	Ex d, Ex e, non-Ex: 10.5…35V DC Ex i: 10.5…30V DC
Reference Accuracy	Standard: up to 0.075 % Platinum: up to 0.055 %
Long term stability	0.10% of URL/ year 0.25% of URL/ 5 years 0.40% of URL/ 10 years
Process temperature	-40°C…+100°C (-40°F…+212°F)
Ambient temperature	-40°C…+85°C (-40°F…+185°F)
Measuring cell	100 mbar…40 bar (1.5 psi…600 psi)
Smallest calibratable span	5 mbar (0.075 psi)
Vacuum resistance	0 mbar abs.
Max. Turn down	100:1
Max. overpressure limit	60 bar (900 psi)
Process connection	Thread: G1/2…G2, R1/2, MNPT1/2…MNPT2, FNPT1/2 Flange: DN25…DN80, NPS 1″…4″
Material process membrane	Ceramic
Material gasket	FKM, EPDM, HNBR, FFKM
Fill fluid	none, dry measuring cell
Material housing	Aluminium
Communication	…20 mA, 4…20 mA HART PROFINET with Ethernet-APL Bluetooth® wireless technology and app (optional)
Certificates / Approvals	ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex
Safety approvals	SIL
Design approvals	EN10204-3.1 NACE MR0175, NACE MR0103
Drinking water approvals	NSF, KTW
Specialities	Bluetooth® Operation and maintenance SmartBlue App, RFID TAG for easy identification, Plug and play functionalities
