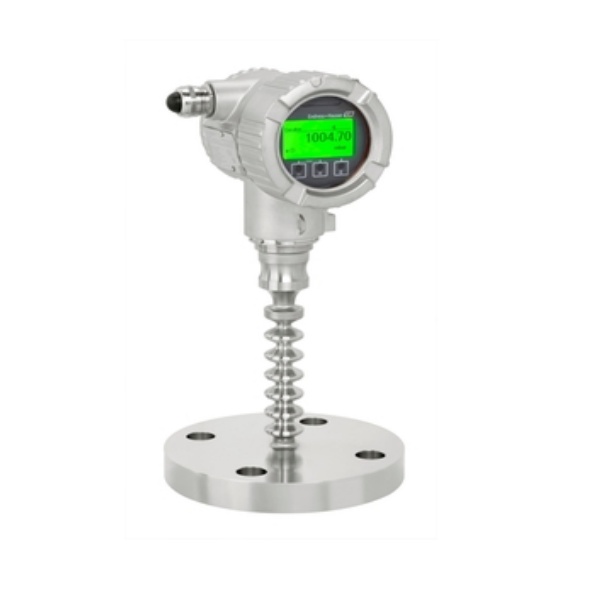

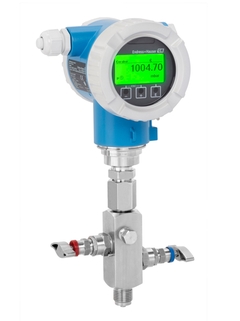

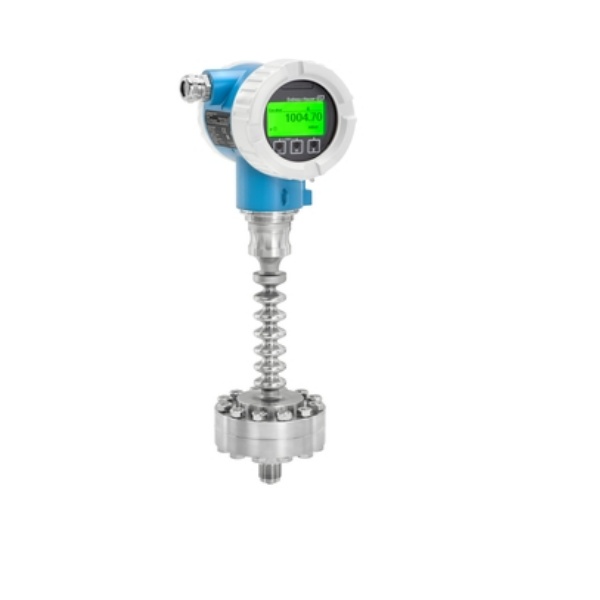

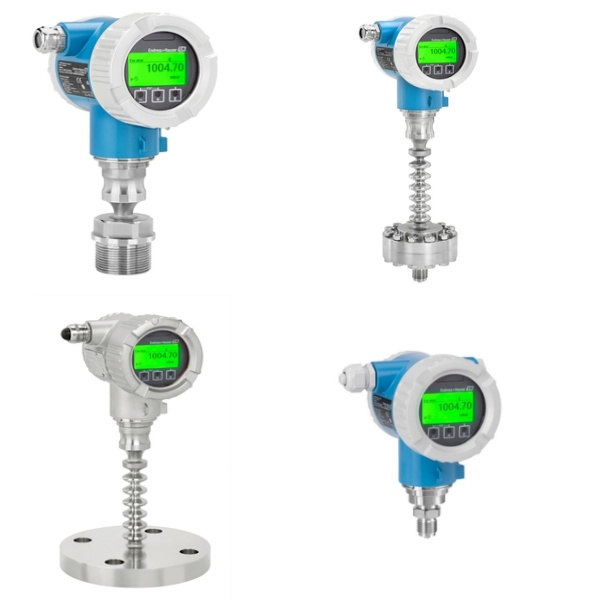

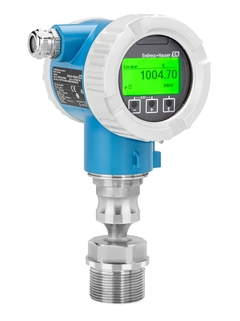

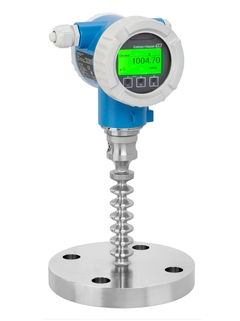

Endress+Hauser Cerabar PMP71B – pressure transmitter

Smart pressure transmitter – its health can be verified without process interruption

Category: E+H

Smart pressure transmitter – its health can be verified without process interruption

Pressure measuring range	400 mbar…700 bar (1.5 psi…10,500 psi)
Accuracy	Standard: up to 0.05 % Platinum: up to 0.025 %
Main wetted parts	316L, AlloyC, Tantal, Monel, PTFE, Gold
Process temperature	Standard: -40°C…+125°C (-40°F…+257°F) Diaphragm seal: -40°C…+400°C (-40°F…+752°F)
Material process membrane	316L, AlloyC, Tantal, Monel, PTFE, Gold
Measuring cell	400 mbar…700 bar (6 psi…10,500 psi)
Field of application	This transmitter belongs to the new Cerabar generation. The transmitter is robust and can be remotely controlled via app on a mobile device using a secure Bluetooth connection. The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device. Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.
Process temperatures	up to 400°C (752 °F) with diaphragm seal
Measuring range	up to 700 bar (10500 psi)
Accuracy	up to +/- 0.025%
Benefits	With Heartbeat Technology you are able to verify the health of the device while the process is running. Simple indication of device status – display changes from green to red when diagnostic messages occur Reduce systematic failures – error free SIL commissioning and instrument guided proof testing Wireless control of the device in the process area with the SmartBlue App
