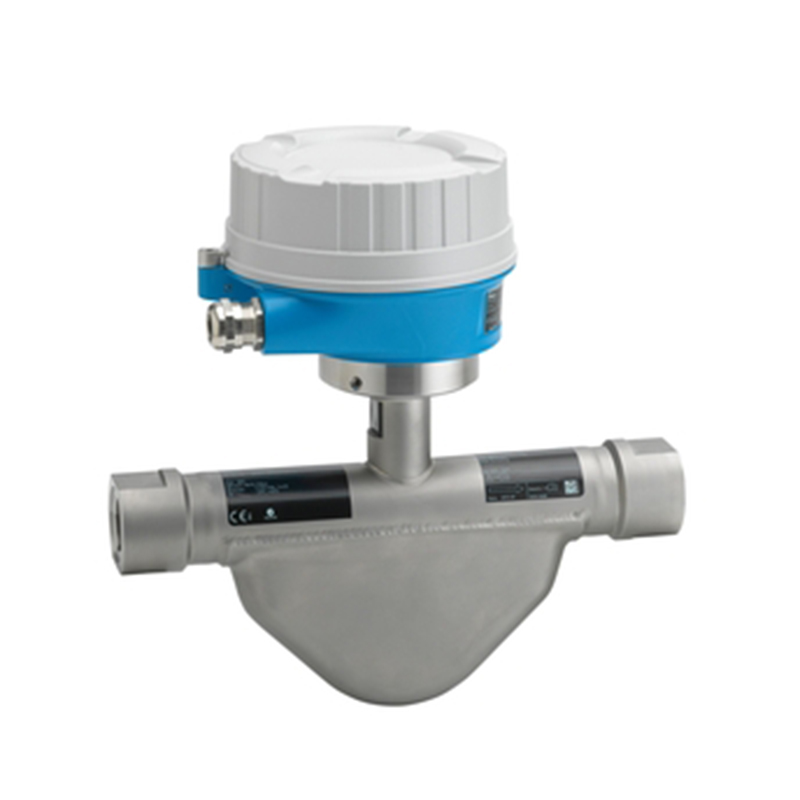

Endress+Hauser CNGmass D8CB Coriolis flowmeter

Refueling application flowmeter with easy system integration

Category:
Description

Refueling application flowmeter with easy system integration

Specification

Measuring principle Coriolis
Product headline
The refueling application flowmeter with seamless system integration. Accurate measurement of compressed natural gas (CNG) in high pressure refueling applications.
Sensor features Ensure excellent operational safety with reliability under extreme process conditions. Reduce the number of process measuring points with multivariable measurement capabilities for flow, density, and temperature. Save space with an installation that requires no inlet or outlet runs. Handle flow rates up to 150 kg/min (330 lb/min) and process pressures up to 350 bar (5080 psi).
Transmitter features Compact and space-saving transmitter with full functionality packed into the smallest footprint possible. Facilitates fast commissioning with pre-configured devices and ensures automatic data recovery for easy servicing. Housed in a robust and compact enclosure, it supports Modbus RS485 for seamless integration into industrial communication networks.
Nominal diameter range DN 8 to 25 (⅜ to 1″)
Wetted materials Mesuring tube: 1.4435 (316L)
Connection: 1.4404 (316/316L)
Measured variables Mass flow, density, temperature, volume flow, corrected volume flow, reference density
Max. measurement error Mass flow: ±0.5 % of batch
Measuring range 0 to 150 kg/min (0 to 330 lb/min)
Max. process pressure 350 bar (5080 psi)
Medium temperature range –50 to +125 °C (–58 to +257 °F)
Ambient temperature range –40 to +60 °C (–40 to +140 °F)
Sensor housing material 1.4301 (304), corrosion resistant
Transmitter housing material AlSi10Mg, coated
Degree of protection IP66/67, type 4X enclosure
Display/Operation No local Operation
Configuration via operating tools possible
Outputs None
Inputs None
Digital communication Modbus RS485
Power supply DC 20 to 30 V
Hazardous area approvals ATEX, IECEx, cCSAus, NEPSI, INMETRO
Metrological approvals and certificates Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Pressure approvals and certificates CRN
Material certificates 3.1 material
