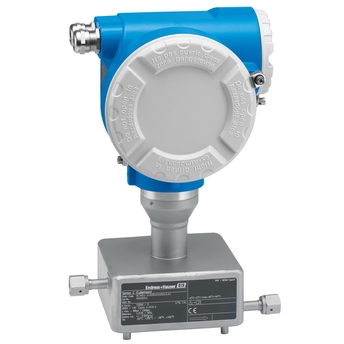

Endress+Hauser Cubemass Coriolis flowmeter

Endress+Hauser Cubemass Coriolis flowmeter

Category:
Description

Compact sensor for smallest quantities with easy system integration

Specification

Measuring principle Coriolis
Product headline
This compact sensor is designed for easy integration into systems, enabling the accurate measurement of even the smallest quantities of liquids and gases. Its small size makes it well-suited for applications requiring precise monitoring of minimal fluid or gas volumes. The sensor’s capabilities allow it to provide reliable, precise measurements in a space-efficient package that can be seamlessly incorporated into a variety of systems.
Sensor features The sensor’s compact, single-tube design enables space-saving installation. By offering multivariable measurement of flow, density, and temperature, the number of required process measuring points is reduced. Suitable for use on skids, the lightweight sensor design makes it easy to incorporate. The sensor is available in nominal diameters ranging from DN 1 to DN 6 (1/24″ to 1/4″). It can withstand process pressures up to 400 bar (5800 psi) and medium temperatures up to +200°C (+392°F), expanding its application potential.
Transmitter features This sensor delivers cost savings through its very low power consumption. Fast commissioning is enabled by the use of pre-configured devices. Automatic data recovery facilitates servicing and maintenance of the sensor. The robust transmitter housing ensures reliable operation. The sensor provides Modbus RS485 communication and pulse output capabilities, allowing for easy integration into a variety of systems.
Nominal diameter range DN 1 to 6 (¹⁄₂₄ to ¹⁄₄”)
Wetted materials Measuring tube: 1.4539 (904L)
Connection: 1.4539 (904L); 1.4404 (316/316L)
Measured variables Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. measurement error Mass flow (liquid): ±0.1 %
Volume flow (liquid): ±0.1 %
Mass flow (gas): ±0.5 %
Density (liquid): ±0.0005 g/cm3
Measuring range 0 to 1000 kg/h (0 to 37 lb/min)
Max. process pressure PN 40, Class 300, 10K, 400 bar (5800 psi)
Medium temperature range –50 to +200 °C (–58 to +392 °F)
Ambient temperature range Standard: –20 to +60 °C (–4 to +140 °F)
Option: –40 to +60 °C (–40 to +140 °F)
Sensor housing material 1.4301 (304), corrosion resistant
Transmitter housing material Powder‐coated die‐cast aluminium
Degree of protection IP67, type 4X enclosure
Display/Operation No local operation
Configuration via operating tools possible
Outputs Pulse/frequency/switch output (passive), phase‐shifted pulse
Inputs None
Digital communication Modbus RS485
Power supply DC 10 to 30 V
AC 20 to 28 V
Hazardous area approvals ATEX, IECEx, NEC/CEC, NEPSI
Other approvals and certificates 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), custody transfer
CRN
Pressure approvals and certificates CRN
Material certificates 3.1 material
