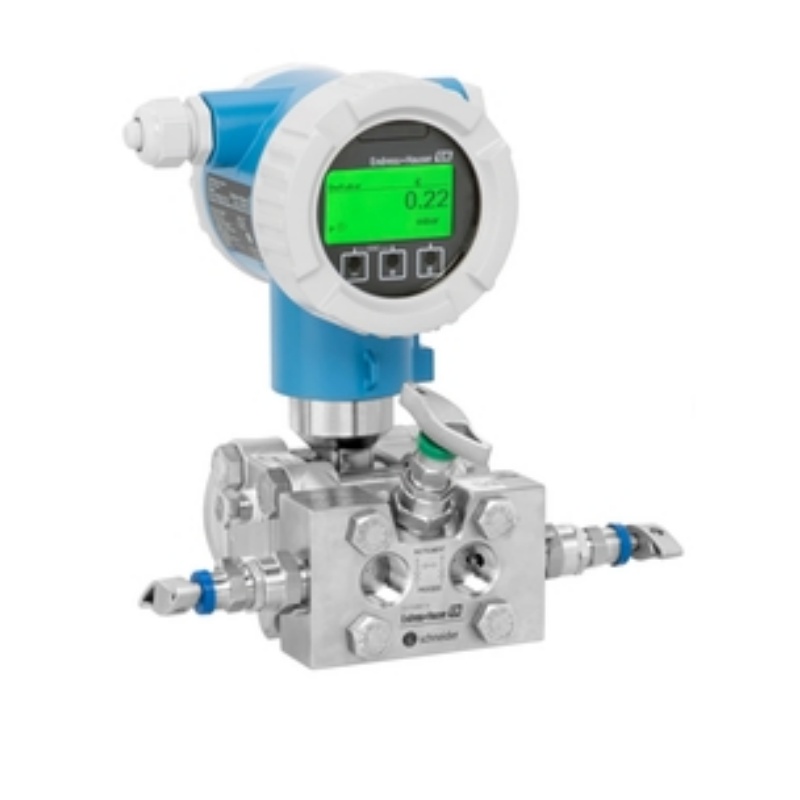

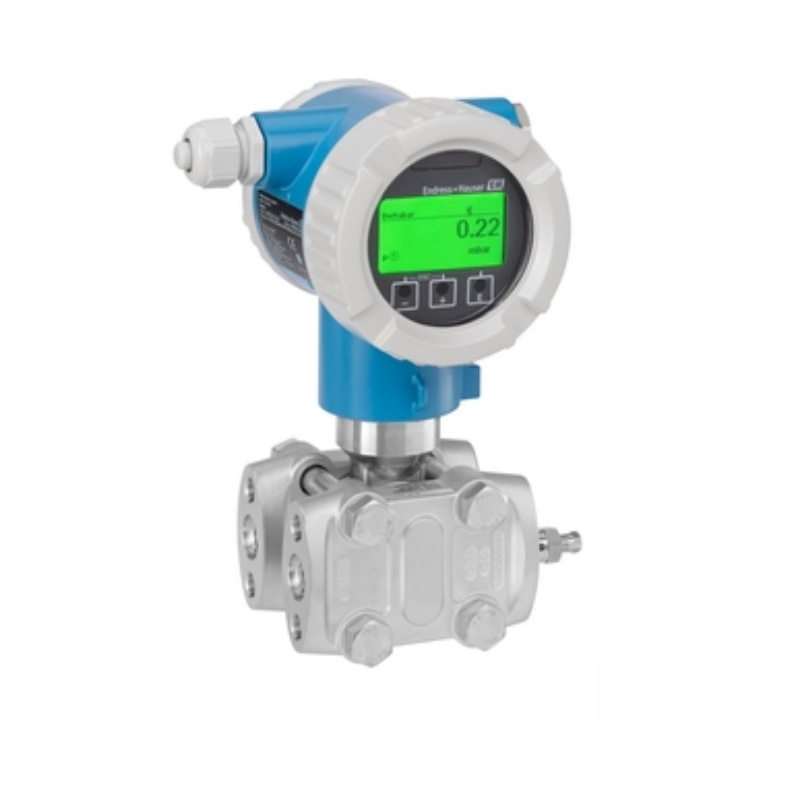

Endress+Hauser Deltabar PMD75B – differential pressure transmitter

Smart pressure transmitter which detects process anomalies like plugged impulse lines

Category: E+H

Smart pressure transmitter which detects process anomalies like plugged impulse lines

Pressure measuring range	10 mbar…250 bar (0.15 psi…3750 psi)
Accuracy	Standard: up to 0.05 % Platinum: up to 0.035 %
Main wetted parts	316L, AlloyC, Tantal, Monel, Gold
Process temperature	-40°C…+110°C (-40°F…+230°F)
Material process membrane	316L, AlloyC, Tantal, Monel, Gold
Measuring cell	10 mbar…250 bar (0.15 psi…3750 psi)
Field of application	This transmitter belongs to the new Deltabar generation. The device is robust and can be remotely controlled via SmartBlue App using a secure Bluetooth connection. It allows condition based maintenance to increase plant availability. The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. plugged impulse lines.
Measuring range	up to 250 bar (3750 psi) (gauge/absolute) and 40 bar (600psi) (dp)
Accuracy	up to +/- 0.035%
Static pressure	up to 420bar (6300psi)
Benefits	With Heartbeat Technology you are able to verify the health of the device while the process is running. This increases plant availability. Simple indication of device status – display changes from green to red when diagnostic messages occur Reduce systematic failures – error free SIL commissioning and instrument guided proof testing Control the device wireless in hard to reach process areas with the SmartBlue App
