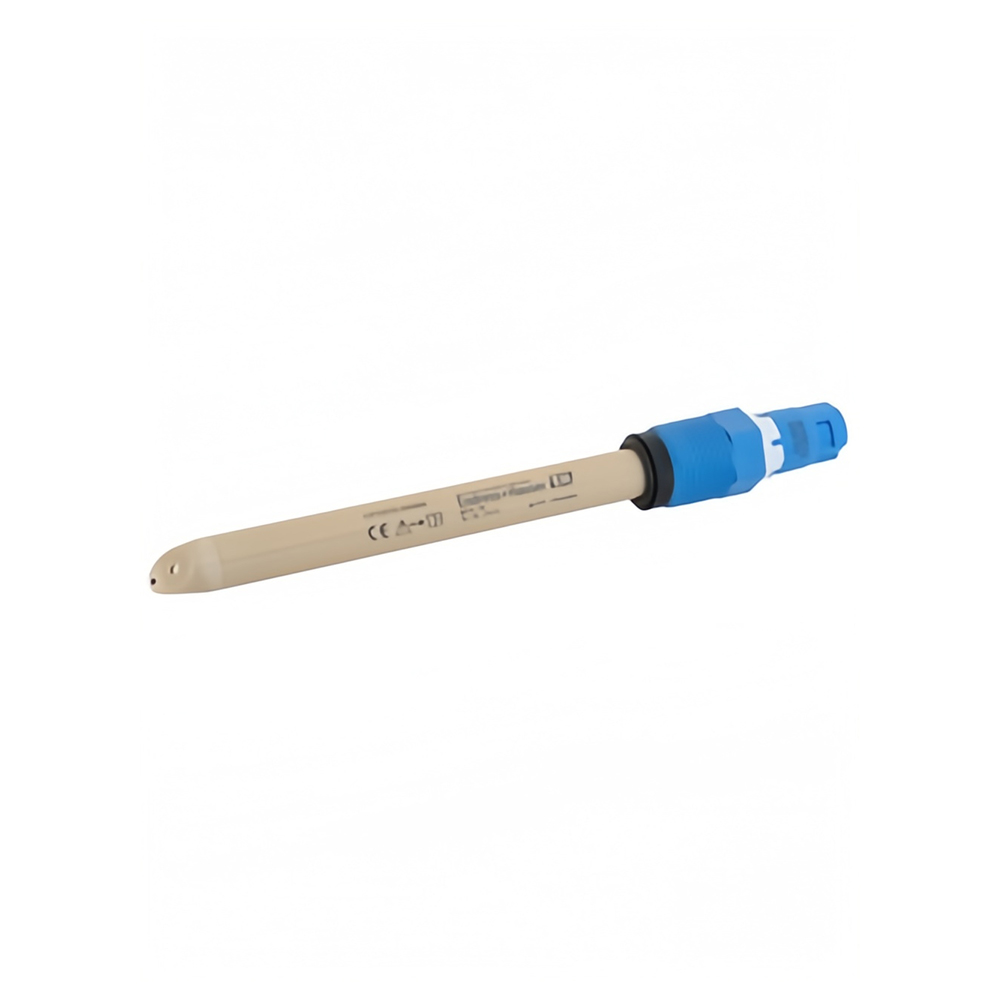

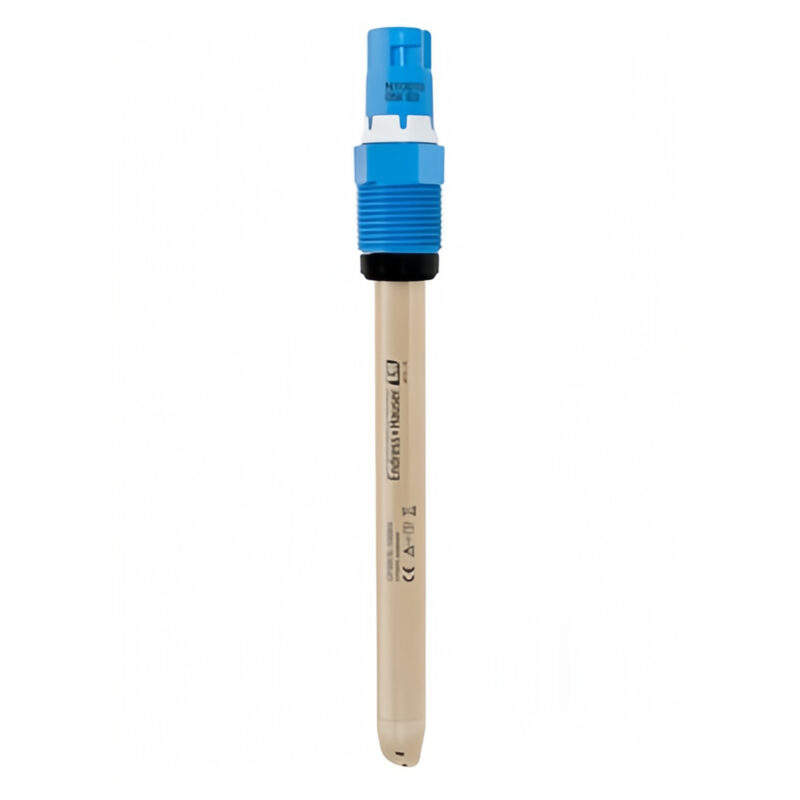

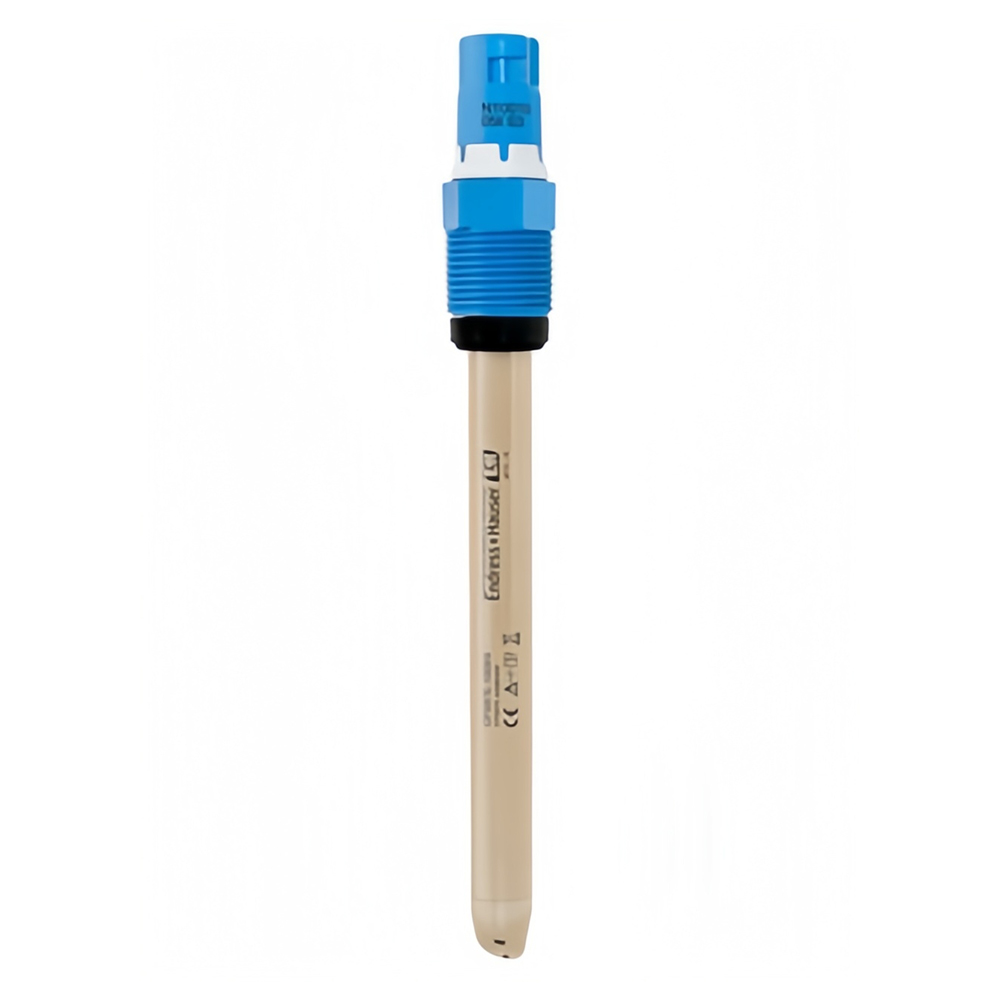

Endress+Hauser Digital non-glass pH sensor Memosens CPS97E
Memosens 2.0 ISFET pH sensor for polluted media in chemical processes, paper or pigment production
Description
Specifications
| Measuring principle | ISFET | |
| Application | Unbreakable pH sensor for use in highly polluting media |
Chemical industry
Pulp and paper industry
Mineral and metal industry
|
| Characteristic | Digital pH electrodes for with open aperture for clogging media e.g. suspended solides, dispersion, precipitation reaction Needs min. conductivity of >500µS/cm |
|
| Reference | Stabilized gel reference system | |
| Measurement range | pH 0 to 14 | |
| Material | Sensor shaft | PEEK |
| Sealings | FFKM | |
| Metal lead | Ag/AgCl | |
| O-ring | FKM | |
| Process coupling | PPS fiber-glass reinforced | |
| Nameplate | Ceramic metal oxide | |
| Dimension | Diameter | 12 mm (0.46 inch) |
| Shaft lengths | 120, 225, 360 and 425 mm (4.68, 8.77, 14.04 and 16.57 inch) |
|
| Process temperature | -15 to 110 °C (5 to 230 °F) | |
| Process pressure |
Max. 11 bar abs. at 100 °C (Max. 159.5 psi at 212 °F) |
|
| Temperature sensor |
Pt1000 | |
| Ex certification | With the following approvals for use in potentially explosive areas of Zone 0, Zone 1 and Zone 2: ATEX, IECEx, CSA C / US, NEPSI, JPN Ex, INMETRO, UKCA and Korea Ex | |
| Connection | Inductive, digital connection head with Memosens 2.0 technology | |
| Ingress protection | IP68 | |
Download
Related products
KROHNE wastewater applications
Rosemount 8705 Flanged Magnetic Flow Meter Sensors
EMERSON Rosemount 5300 Level Transmitter – Guided Wave Radar
Endress+Hauser Analog pH sensor Orbipore CPS91
EMERSON Rosemount 5300 guided wave radar level gauge 5301 contact radar level gauge

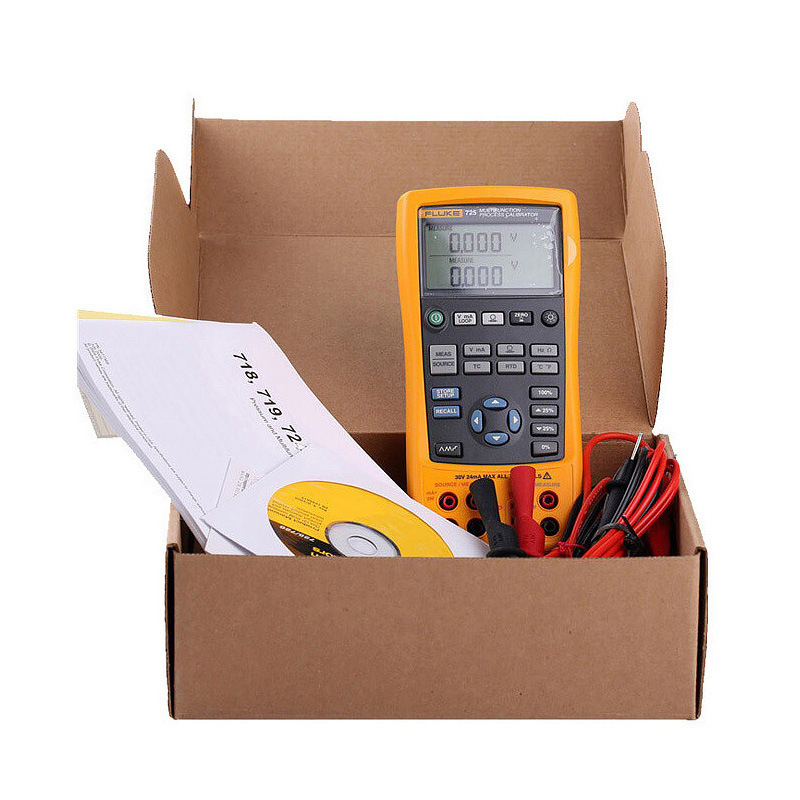

Multifunction Process Calibrator Fluke 725
