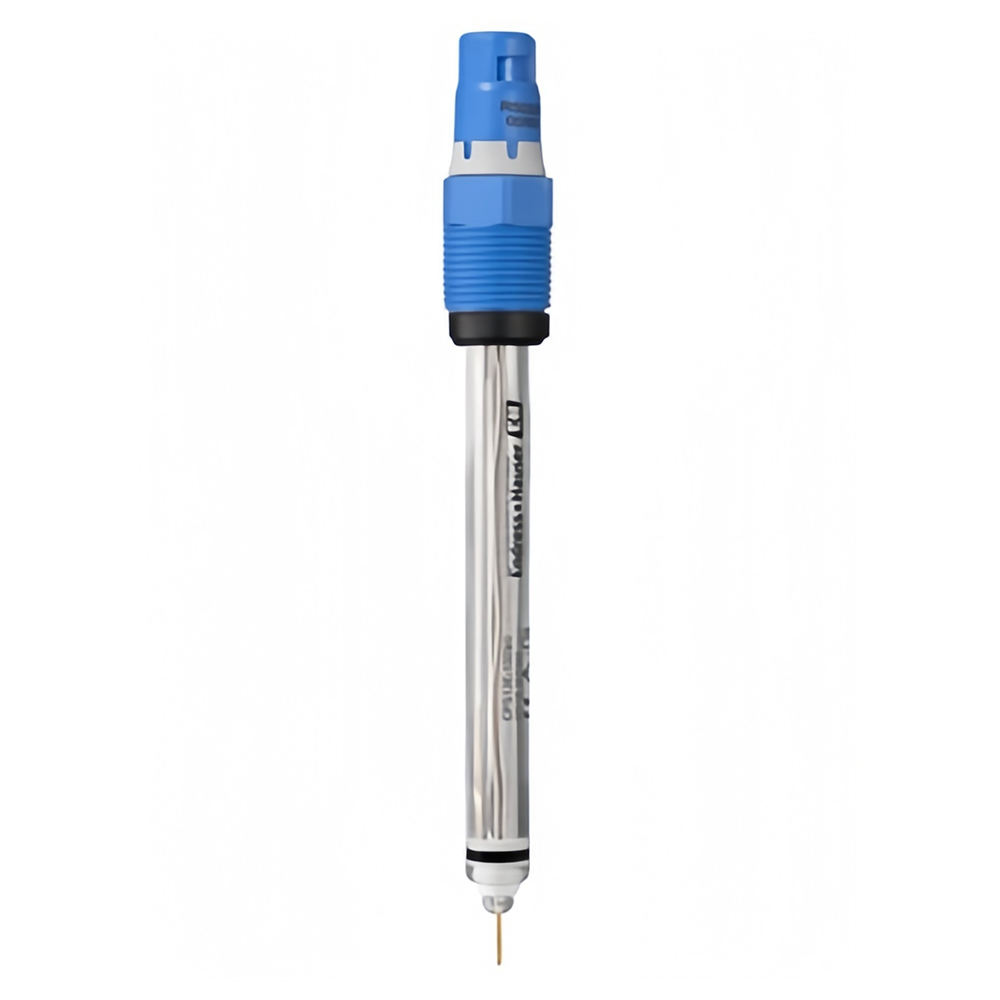

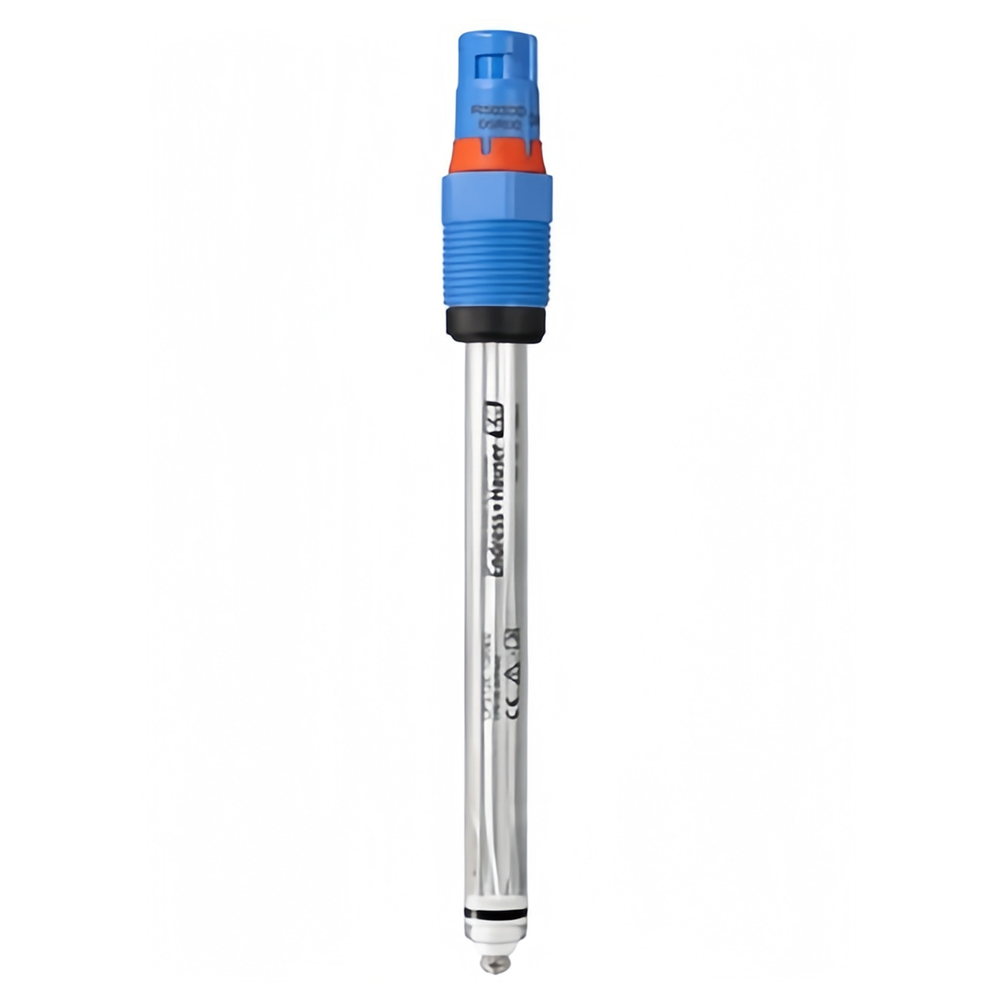

Endress+Hauser Digital ORP sensor Memosens CPS12E
Memosens 2.0 ORP electrode for standard applications in process and water & wastewater industries
Description
Specifications
| Measuring principle | Sensor ORP / Redox | |
| Application |
Long-term monitoring and limit control in processes with stable process conditions
Water treatment |
|
| Characteristic | Digital ORP sensor for standard applications in process technology and environmental engineering with dirt-repellent PTFE junction and integrated temperature sensor |
|
| Measurement range | -1500 mV to +1500 mV | |
| Measuring principle | Gel compact electrode with teflon junction and double gel reference Measuring part as gold-pin or platinum ring |
|
| Design |
All shaft lengths with temperature sensor
Advanced gel technology |
|
| Material | Sensor shaft | Glass to suit process |
| ORP measuring element | Platinum or gold | |
| Metal lead | Ag/AgCl | |
| Aperture | Ring-shaped PTFE diaphragm, sterilizable | |
| O-ring | FKM | |
| Process coupling | PPS fiber-glass reinforced | |
| Nameplate | Ceramic metal oxide | |
| Dimension | Diameter | 12 mm (0.46 inch) |
| Shaft lengths | 120, 225 and 360 mm (4.72, 8.86 and 14.17 inch) |
|
| Process temperature | -15 to 135 °C(5 to 275 °F) | |
| Process pressure |
0.8 to 17 bar (11.6 to 246.5 psi) absolute | |
| Temperature sensor |
NTC 30k | |
| Ex certification | With ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for use in hazardous areas Zone 0, Zone 1 and Zone 2 | |
| Connection | Inductive, digital connection head with Memosens 2.0 technology | |
| Ingress protection | IP68 | |
