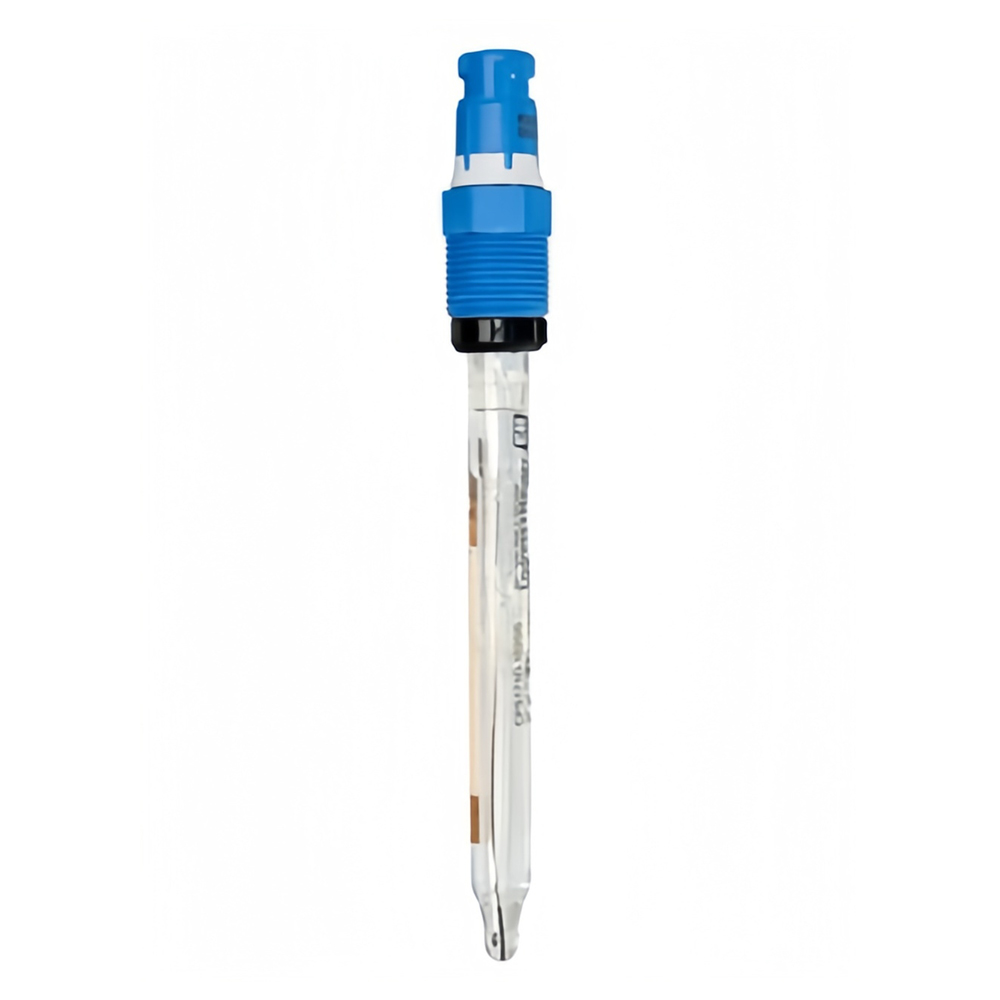

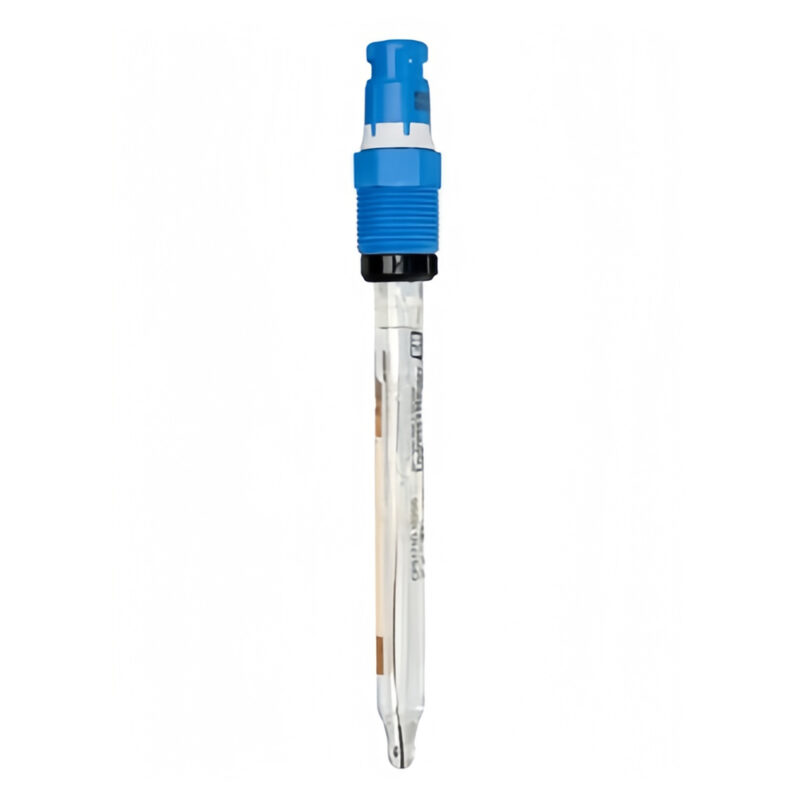

Endress+Hauser Digital pH sensor Memosens CPS171D
Memosens glass electrode for bioreactors in the biotech industry and for the food industry
Description
Specifications
| Measuring principle | Potentiometric | |
| Application |
Hygienic and sterile applications, bioreactor, fermenter, biotechnology, pharmaceutical industry, foods
|
|
| Characteristic | Digital pH electrodes for bioreactors and biotechnology production processes with ion-trap for long-term stable reference | |
| Measurement range | pH 0 to 14 | |
| Measuring principle | Ceramic diaphragm, ion-trap | |
| Design |
All shaft lengths with temperature sensor
Advanced gel technology Digital electrode with Memosens technology |
|
| Material | Glass and ceramic | |
| Dimension | Diameter | 12 mm (0.46 inch) |
| Shaft lengths | 120, 225, 360 and 425 mm (4.72, 8.86, 14.2 and 16.7 inch) |
|
| Process temperature | 0 to 135 °C (32 to 275 °F) | |
| Process pressure |
1 to 7 bar abs (14.5 to 101.5 psi) | |
| Temperature sensor |
NTC 30k | |
| Ex certification | IECEx, ATEX, NEPSI, FM, CSA | |
| Connection | Inductive, digital connection head with Memosens technology | |
