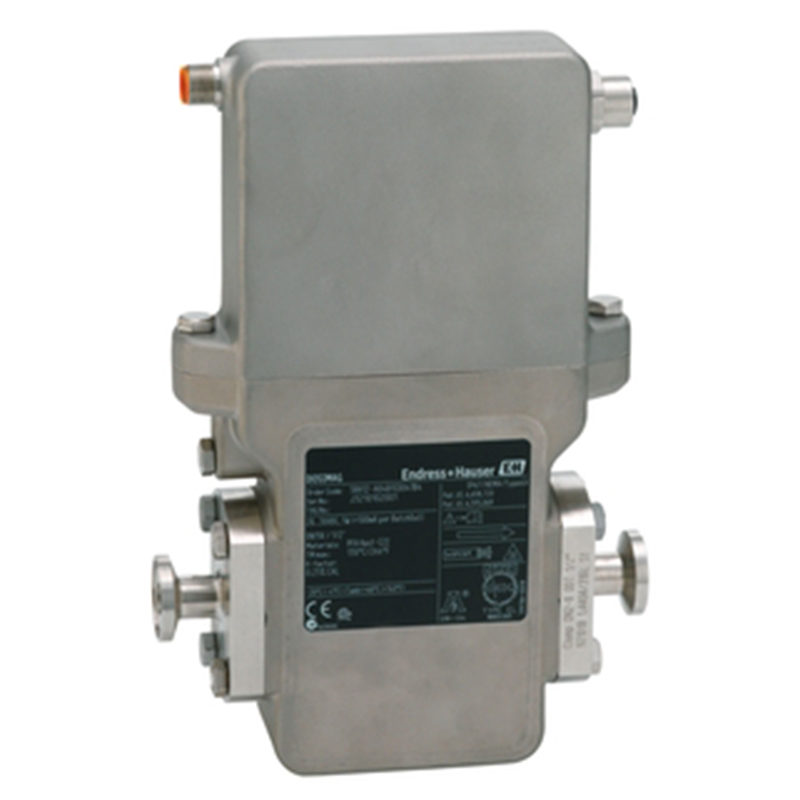

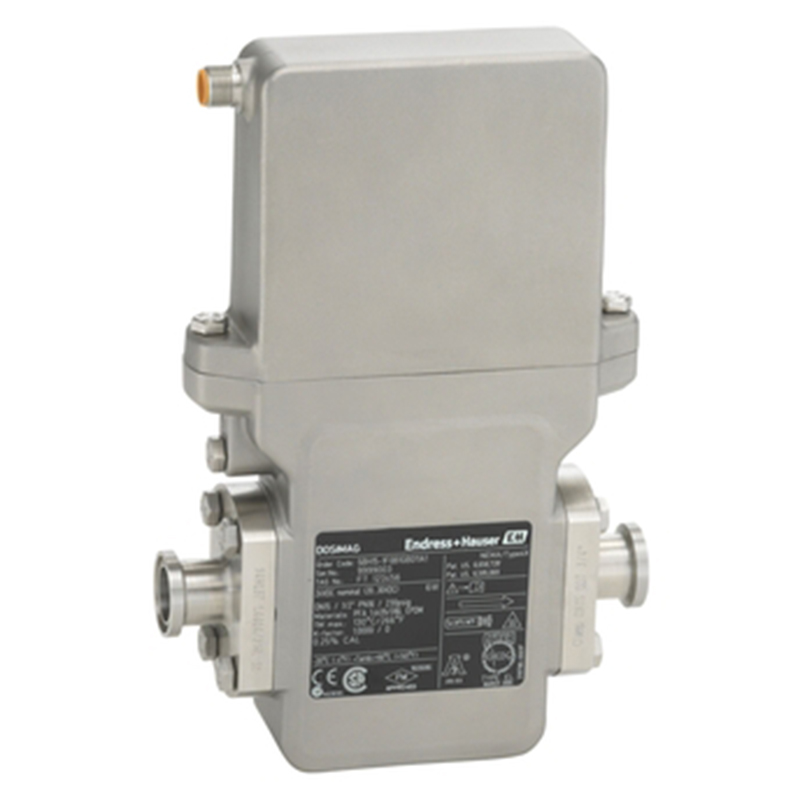

Endress+Hauser Dosimag electromagnetic flowmeter

Flowmeter with hygienic design, highest repeatability and an ultra-compact sensor

Category: E+H

Send Inquiry

Description

Flowmeter with hygienic design, highest repeatability and an ultra-compact sensor

Specification

Measuring principle	Electromagnetic
Product headline	Flowmeter with Hygienic Design, High Repeatability, and Ultra-Compact Sensor Designed for Demanding Dosing and Filling Applications
Sensor features	High Process Safety with High Accuracy and Repeatability for Fast Filling Energy-Saving Flow Measurement with No Pressure Loss Maintenance-Free Design with No Moving Parts Wetted Materials CIP/SIP Cleanable Nominal Diameters: DN 4 to 25 (1/8 to 1 inch) Measuring Device Conforms to FDA
Transmitter features	Versatile and Time-Saving Wiring with Plug Connector Industry-Optimized with Ultra-Compact Design Hygienic Stainless Steel Housing Pulse/Frequency/Switch Output, Modbus RS485 Custody Transfer Approvals (MID, NTEP) Excellent, Easily Cleanable Transmitter
Nominal diameter range	DN 4 (⁵⁄₃₂”), 8 (⁵⁄₁₆”), 15 (½”), 25 (1″)
Wetted materials	Liner: PFA Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum, Platinum
Measured variables	Volume flow
Max. measurement error	±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s) ±0.5 % o.r. ± 1 mm/s (0.04 in/s) ±5 % o.r.
Measuring range	0.14 to 1.66 l/s (0.035 to 0.44 gal/s)
Max. process pressure	PN 16
Medium temperature range	Seal material EPDM: –20 to +130 °C (–4 to +266 °F) Seal material Silicone: –20 to +130 °C (–4 to +266 °F) Seal material Viton: 0 to +150 °C (+32 to +302 °F)
Ambient temperature range	–40 to +60 °C (–40 to +140 °F)
Sensor housing material	1.4308 (304)
Transmitter housing material	1.4308 (304)
Degree of protection	IP66/67, type 4X enclosure
Display/Operation	No local Operation Configuration via operating tools possible
Outputs	Pulse/frequency/switch output (passive)
Inputs	None
Digital communication	Modbus RS485
Power supply	DC 20 to 30 V
Hazardous area approvals	ATEX, IECEx, cCSAus
Product safety	CE
Metrological approvals and certificates	Calibration performed on accredited calibration facilities (acc.to ISO/IEC 17025) NTEP
Pressure approvals and certificates	CRN, PED
Hygienic approvals and certificates	Sanitary approval: 3-A, EHEDG, seals acc. to FDA
