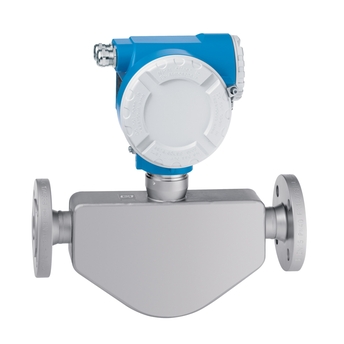

Endress+Hauser LPGmass Coriolis flowmeter

The refueling and distribution application flowmeter with easy system integration

Category: E+H

Send Inquiry

Description

The refueling and distribution application flowmeter with easy system integration

Specification

Measuring principle	Coriolis
Product headline	This flowmeter is designed for easy integration into refueling and distribution systems. It provides accurate measurement of liquefied petroleum gas (LPG) in these applications. The flowmeter’s capabilities make it well-suited for use in LPG refueling and distribution operations.
Sensor features	Excellent operational safety is ensured as this flowmeter remains reliable even under extreme ambient conditions. By offering multivariable measurement of flow, density, and temperature, the number of required process measuring points is reduced. The space-saving installation design eliminates the need for inlet or outlet runs. This flowmeter can handle flow rates up to 45,000 kg/h (1,654 lb/min). Additionally, it provides volume flow calculation in accordance with API Table 53 standards.
Transmitter features	Easy operation is achieved by tailoring the device to only the essential application requirements. Fast commissioning is enabled through the use of pre-configured devices. Automatic data recovery facilitates servicing and maintenance of the flowmeter. The transmitter housing is designed to be robust and ultra-compact. This flowmeter provides pulse output and Modbus RS485 communication capabilities, allowing for simple integration into a variety of refueling and distribution systems.
Nominal diameter range	DN 8 to 40 (³⁄₈ to 1½”)
Wetted materials	Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L)
Measured variables	Mass flow, density, temperature, volume flow, corrected volume flow
Max. measurement error	Mass flow (liquid): ±0.2 % Volume flow (liquid): ±0.3 %
Measuring range	0 to 45 000 kg/h (0 to 1650 lb/min)
Max. process pressure	PN 40, Class 300, 63K
Medium temperature range	–40 to +125 °C (–40 to +257 °F)
Ambient temperature range	–40 to +60 °C (–40 to +140 °F)
Sensor housing material	1.4301 (304), corrosion resistant
Transmitter housing material	Powder‐coated die‐cast aluminium
Degree of protection	IP67, type 4X enclosure
Display/Operation	No local operation Configuration via operating tools possible
Outputs	Pulse/frequency/switch output (passive), phase‐shifted pulse
Inputs	None
Digital communication	Modbus RS485
Power supply	DC 10 to 30 V AC 20 to 28 V
Hazardous area approvals	ATEX, IECEx, NEC/CEC, FM, CSA, NEPSI, UL
Other approvals and certificates	3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), custody transfer PED, CRN
Metrological approvals and certificates	Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), custody transfer
Pressure approvals and certificates	PED, CRN
Material certificates	3.1 material
