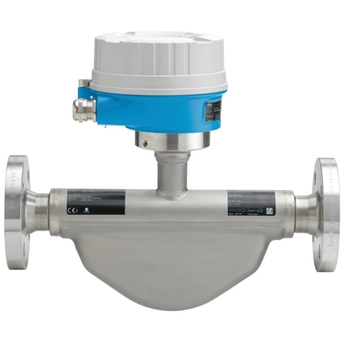

Endress+Hauser LPGmass D8EB Coriolis flowmeter

Category:
Description

The refueling and distribution application flowmeter with easy system integration

Specification

Measuring principle Coriolis
Product headline
A flowmeter designed for refueling and distribution applications, offering easy system integration and accurate measurement of liquefied petroleum gas (LPG).
Sensor features Ensure exceptional operational safety with reliability in extreme ambient conditions. Reduce the number of process measuring points with multivariable measurement capabilities for flow, density, and temperature. Save space with an installation that requires no inlet or outlet runs. Handle flow rates up to 70,000 kg/h (2570 lb/min) and calculate volume flow according to API table 53 standards.
Transmitter features Space-saving transmitter – full functionality on the smallest footprint. Fast commissioning – pre-configured devices. Automatic recovery of data for servicing. Robust, compact transmitter housing. Modbus RS485.
Nominal diameter range DN 8 to 50 (³⁄₈ to 2″)
Wetted materials Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)
Measured variables Mass flow, density, temperature, volume flow, corrected volume flow, reference density
Max. measurement error Mass flow (liquid): ±0.20 %
Volume flow (liquid): ±0.30 %
Measuring range 0 to 70 000 kg/h (0 to 2570 lb/min)
Max. process pressure PN 40, Class 300
Medium temperature range –50 to +125 °C (–58 to +257 °F)
Ambient temperature range –40 to +60 °C (–40 to +140 °F)
Sensor housing material 1.4301 (304), corrosion resistant
Transmitter housing material AlSi10Mg, coated
Degree of protection IP66/67, type 4X enclosure
Display/Operation No local Operation
Configuration via operating tools possible
Outputs None
Inputs None
Digital communication Modbus RS485
Power supply DC 20 to 30 V
Hazardous area approvals ATEX, IECEx, cCSAus, NEPSI, INMETRO
Product safety CE, C-Tick
Metrological approvals and certificates Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Pressure approvals and certificates CRN, PED
Material certificates 3.1‐Material

Download
