endress+hauser master meter control system dsk1mm

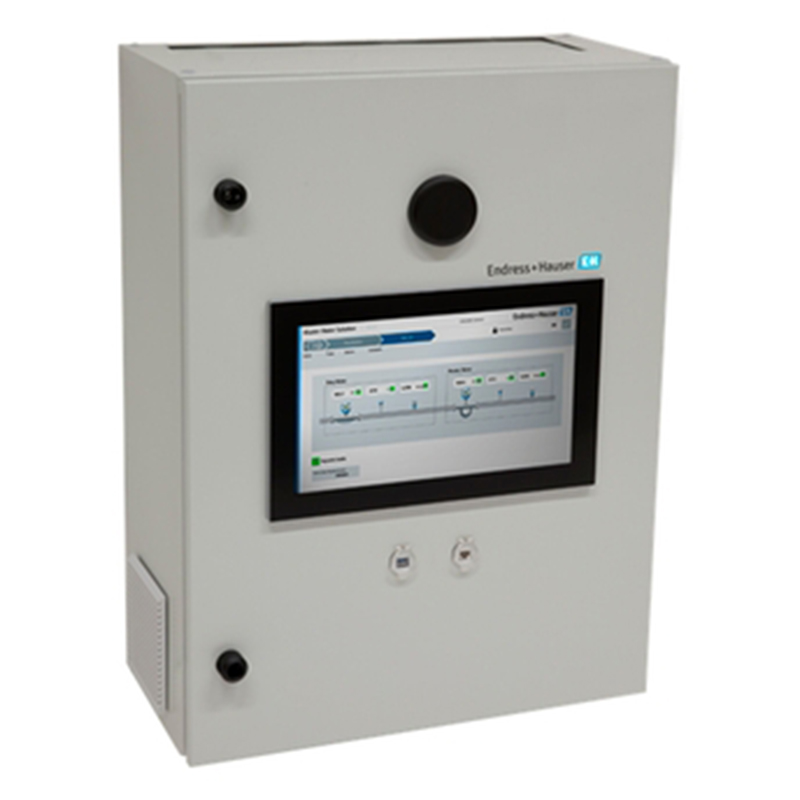

Endress+Hauser Master meter control system DSK1MM

Purpose-built control panel complete with support for up to two master meters in one panel

Category: E+H

Purpose-built control panel complete with support for up to two master meters in one panel

Specification

Measuring principle	Coriolis
Product headline	Purpose built control system complete with support for up to two master meter runs.
Solution Features	The master meter control system has an intuitive self-guided wizard to simplify the proving settings.
Ambient temperature range	–10 to +55 °C (+14 to +131 °F)
Sensor housing material	Control panel housing material: Stainless steel Sheet steel painted Anodized aluminum
Degree of protection	IP66/67, type 4x enclosure (with hazardous area approvals) IP54 non-hazardous area
Display/Operation	15.6 capacitive touch LCD display
Outputs	4 x Digital output (alarms, warning, error)
Inputs	6 x 4-20 mA (active/passive) 4 x Pulse/frequency (active/passive) 2 x RS485 MODBUS serial
Digital communication	Ethernet, OPC UA
Power supply	Input: AC 100 to 230 V Output: DC 24 V
Hazardous area approvals	ATEX, IECEx, QPS C/US, CCC, INMETRO, EAC, UK Ex
Product safety	CE
