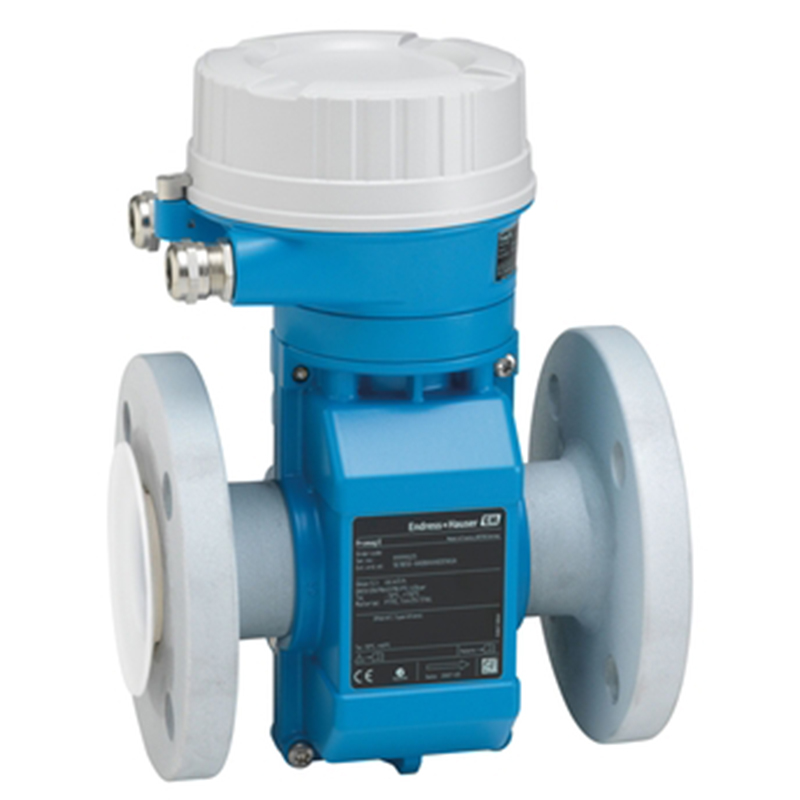

Endress+Hauser Proline Promag E 100 electromagnetic flowmeter

The economical flowmeter with an ultra-compact transmitter

Category:
Description

The economical flowmeter with an ultra-compact transmitter

Specification

Measuring principle Electromagnetic
Product headline
The Economical Flowmeter with Ultra-Compact Transmitter
Fully Suitable for Basic Applications in Chemical and Process Industries
Sensor features Cost-Effective Sensor Ideal for Basic Requirements
Energy-Saving Flow Measurement with No Pressure Loss
Maintenance-Free Design with No Moving Parts
Nominal Diameter: Max. DN 600 (24″)
Ex Approvals for Zone 2
Liner Material: PTFE
Transmitter features Space-Saving Transmitter with Full Functionality
Time-Saving Local Operation via Integrated Web Server
Integrated Verification with Heartbeat Technology
Robust, Ultra-Compact Transmitter Housing
Local Display Available
Nominal diameter range DN 15 to 600 (½ to 24″)
Wetted materials Liner: PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
Measured variables Volume flow, conductivity, mass flow
Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range 4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)
Max. process pressure PN 40, Class 150, 20K
Medium temperature range –10 to +110 °C (+14 to +230 °F)
Ambient temperature range –10 to +60 °C (+14 to +140 °F)
Sensor housing material DN 15 to 300 (½ to 12″): AlSi10Mg, coated
DN 350 to 600 (14 to 24″): Carbon steel with protective varnish
Transmitter housing material AlSi10Mg, coated
Degree of protection IP67, type 4X enclosure
Display/Operation 4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
Outputs 4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Inputs None
Digital communication HART, PROFIBUS DP, Modbus RS485, EtherNet/IP, PROFINET
Power supply DC 20 to 30 V
Hazardous area approvals ATEX, IECEx, cCSAus, INMETRO, EAC
Metrological approvals and certificates Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Pressure approvals and certificates PED
Material certificates 3.1 material
