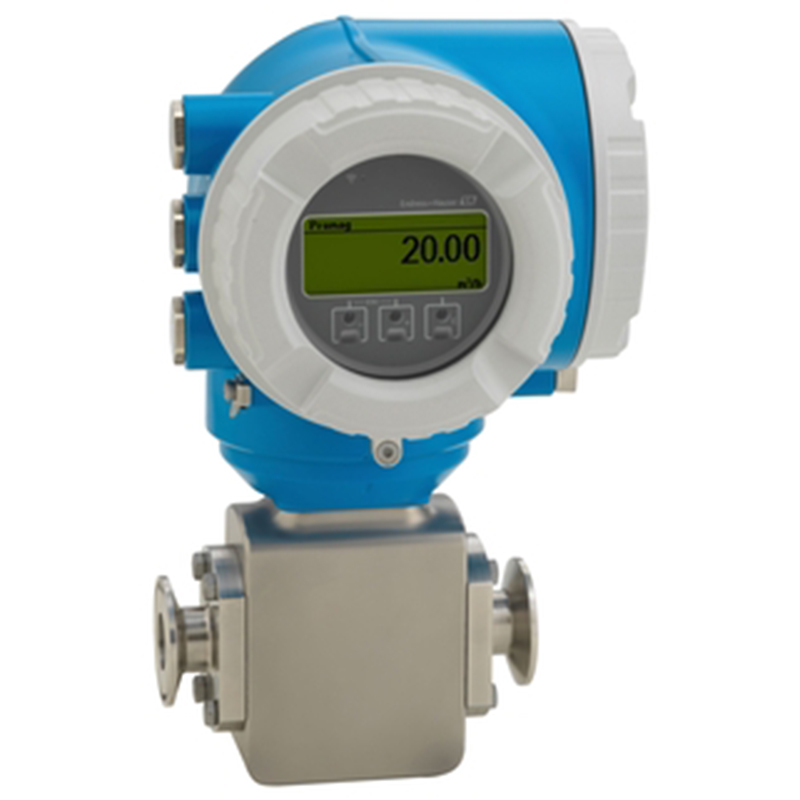

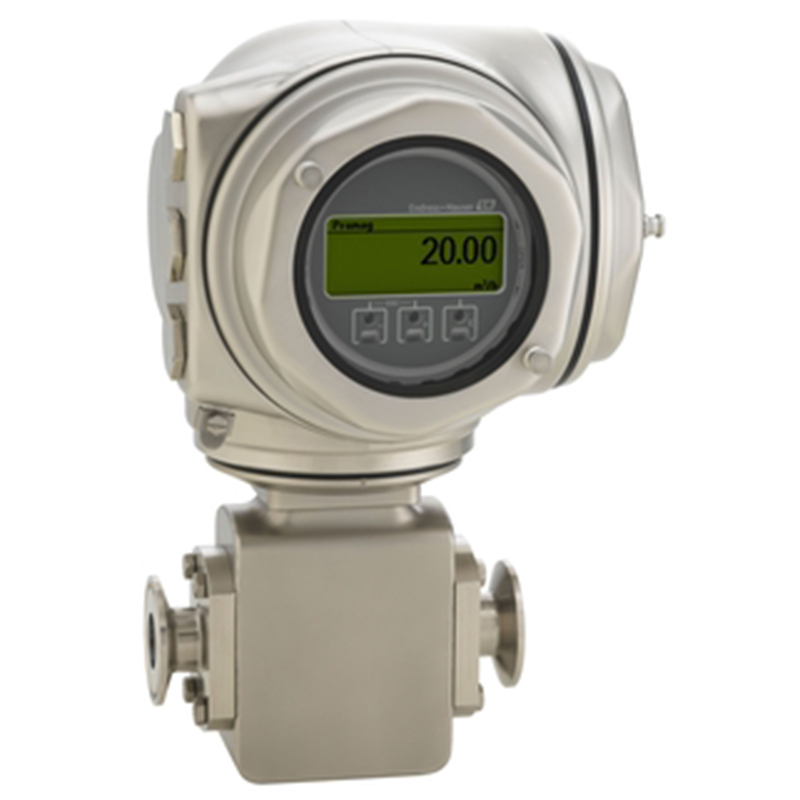

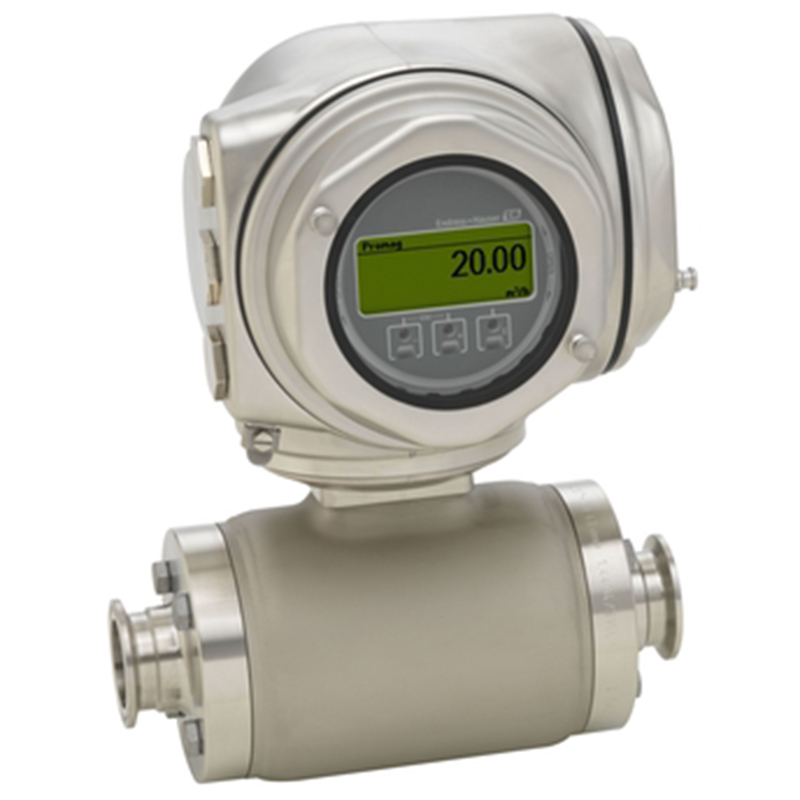

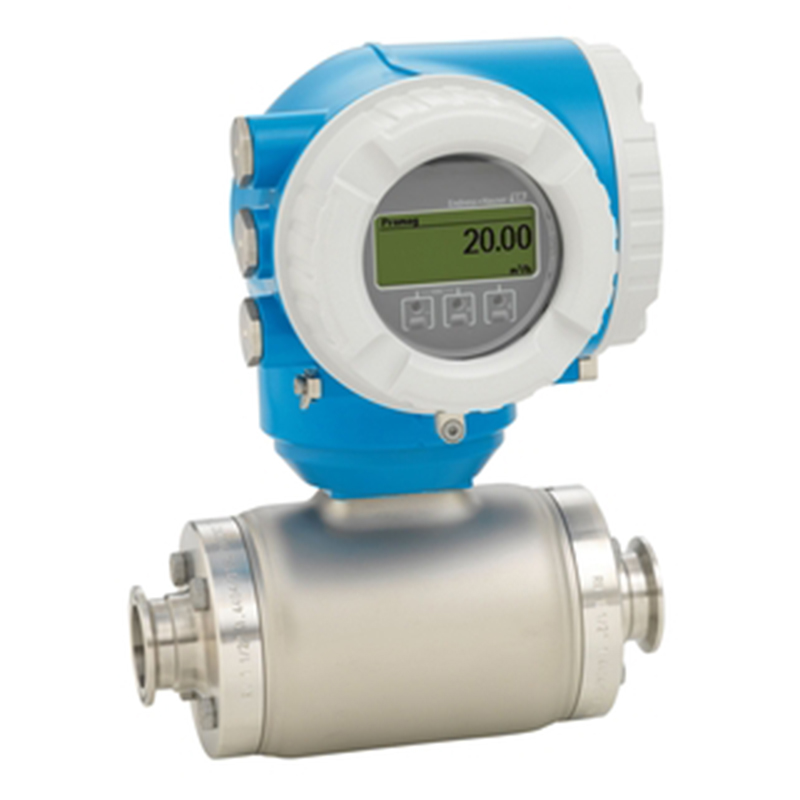

Endress+Hauser Proline Promag H 300 electromagnetic flowmeter

Specialist for hygienic applications with a compact, easily accessible transmitter

Category:
Description

Specialist for hygienic applications with a compact, easily accessible transmitter

Specification

Measuring principle Electromagnetic
Product headline Specialist for Hygienic Applications with Compact, Easily Accessible Transmitter
Designed for Demanding Applications in Food, Beverage, and Life Sciences Industries
Sensor features Flexible Installation with Numerous Hygienic Process Connections
Energy-Saving Flow Measurement with No Pressure Loss
Maintenance-Free Design with No Moving Parts
Liner Material: PFA
Sensor Housing: Stainless Steel (3-A, EHEDG)
Transmitter features Full Access to Process and Diagnostic Information with Numerous, Freely Combinable I/Os and Fieldbuses
Reduced Complexity and Variety with Freely Configurable I/O Functionality
Integrated Verification with Heartbeat Technology
Wetted Materials CIP/SIP Cleanable
Compact Hygienic Dual-Compartment Housing with IP69 and up to 3 I/Os
Backlit Display with Touch Control and WLAN Access
Nominal diameter range DN 2 to 150 (¹⁄₁₂ to 6″)
Wetted materials Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
Measured variables Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity
Max. measurement error Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Measuring range 0.06 dm³/min to 600 m³/h (0.015 gal/min to 2 650 gal/min)
Max. process pressure PN 40, Class 150, 20K
Medium temperature range –20 to +150 °C (–4 to +302 °F)
Ambient temperature range –40 to +60 °C (–40 to +140 °F)
Sensor housing material 1.4301 (304), corrosion resistant
Transmitter housing material AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
Degree of protection IP66/67, type 4X enclosure
IP69
Display/Operation 4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
Inputs Status input
4-20 mA input
Digital communication HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power supply DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
Product safety CE, C-tick, EAC marking
Functional safety Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological approvals and certificates Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine approvals and certificates LR approval, DNV approval, ABS approval, BV approval
Pressure approvals and certificates PED, CRN
Material certificates 3.1 material
Hygienic approvals and certificates
 Sanitary approval: EHEDG, 3-A, liner and seals acc. to FDA, cGMP
