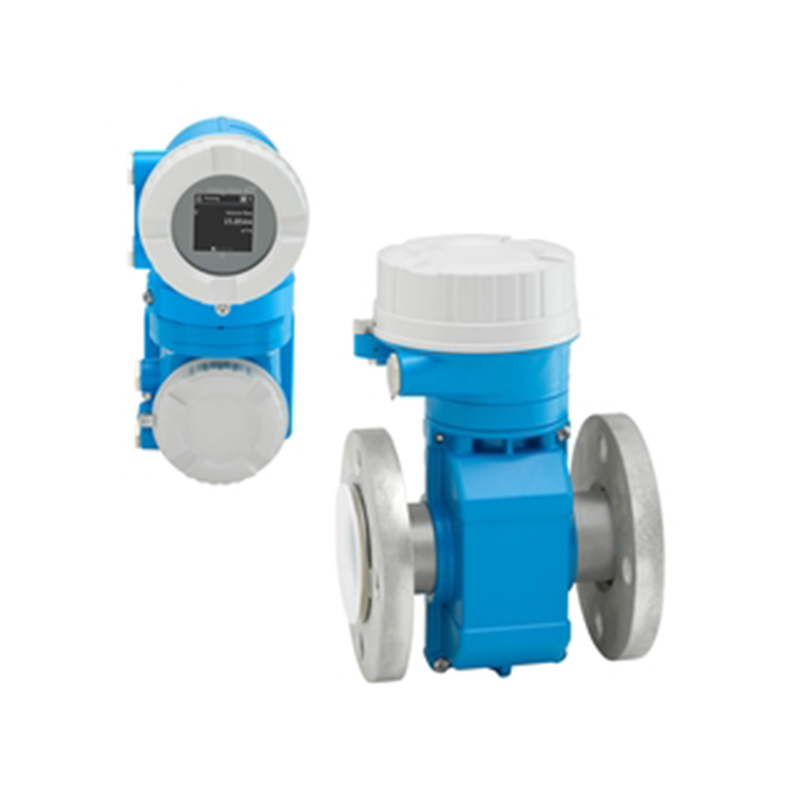

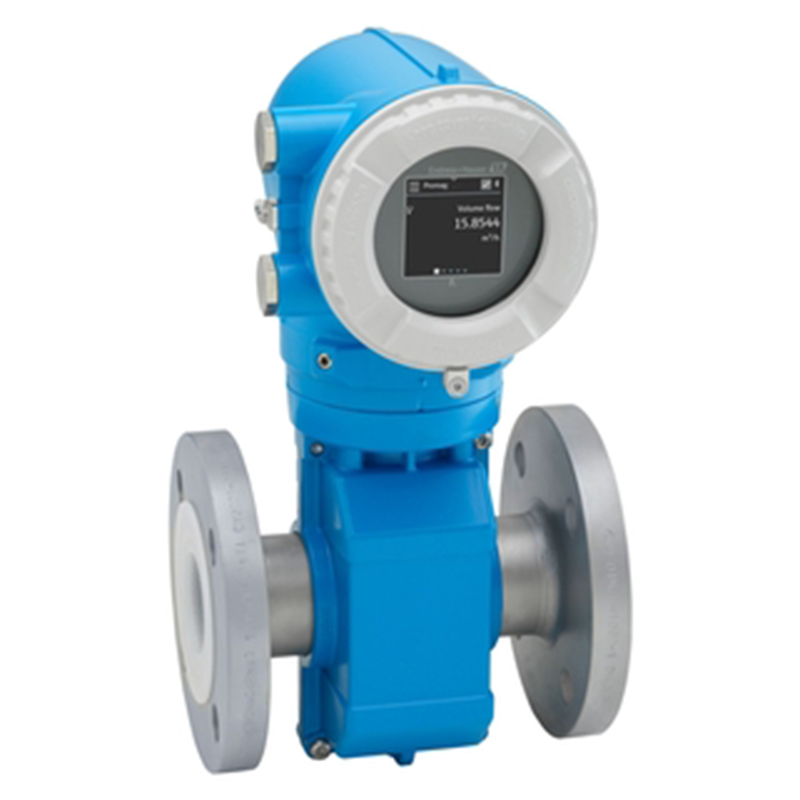

Endress+Hauser Proline Promag P 10 electromagnetic flowmeter

Flowmeter for basic process applications with easy-to-use operation concept

Category:
Description

Flowmeter for basic process applications with easy-to-use operation concept

Product headline

Introducing a flowmeter tailored for basic process applications with an intuitive operation concept. Specifically designed for chemical and process environments handling corrosive liquids, this flowmeter ensures straightforward usability while meeting the demands of industrial settings.

Sensor features

This flowmeter is versatile for diverse applications, offering a wide variety of wetted materials to suit different media. It provides energy-saving flow measurement without any pressure loss due to cross-section constriction and operates maintenance-free with no moving parts. With a maximum nominal diameter of DN 600 (24″), it accommodates various pipe sizes. It holds all common Ex approvals for hazardous environments and features a liner made of either PTFE or PFA, ensuring compatibility with corrosive liquids and gases.

Transmitter features

Achieve optimum usability with this flowmeter, offering operation via mobile devices using the SmartBlue app or through a touch screen display. Enjoy simple and time-saving commissioning with guided parameterization, both in advance and in the field. Integrated verification through Heartbeat Technology ensures continuous reliability.

This flowmeter supports seamless system integration with communication protocols like HART and Modbus RS485, enabling flexible operation through the app or an optional display for enhanced monitoring and control capabilities.

Specification

Measuring principle Electromagnetic
Nominal diameter range DN 15 to 600 (½ to 24″)
Wetted materials Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
Measured variables Volume flow, conductivity, mass flow
Max. measurement error Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Measuring range 4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
Max. process pressure PN 40, Class 300, 20K
Medium temperature range Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
Ambient temperature range Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing material DN 15 to 300 (½ to 12″”): AlSi10Mg, coated
DN 350 to 600 (14 to 24″”): Carbon steel with protective varnish
Transmitter housing material AlSi10Mg, coated
Degree of protection Standard: IP66/67, Type 4X enclosure
Display/Operation 2.4″ LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible
Outputs 4-20 mA HART (active/passive), Pulse/frequency/switch output
Modbus RS485, 4-20 mA
Digital communication HART, MODBUS RS485
Power supply DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals ATEX, IECEx, cCSAus, EAC, NEPSI, INMETRO, KC, JPN, UK Ex
Metrological approvals and certificates Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine approvals and certificates LR approval, DNV approval, ABS approval, BV approval
Pressure approvals and certificates PED, CRN
Material certificates 3.1 material
Hygienic approvals and certificates
 Driking water approvals: ACS; NSF61, WRAS
