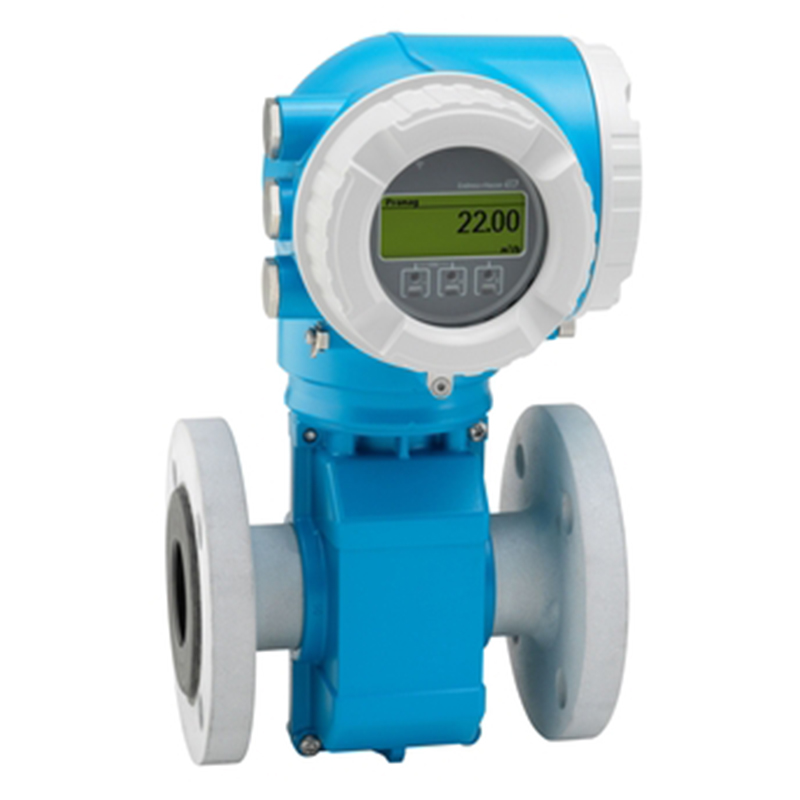

Endress+Hauser Proline Promag W 300 electromagnetic flowmeter

Specialist for demanding water and wastewater applications with a compact, easily accessible transmitter

Category:
Description

Specialist for demanding water and wastewater applications with a compact, easily accessible transmitter

Specification

Measuring principle Electromagnetic
Product headline
Specialist Flowmeter for Demanding Water and Wastewater Applications
Compact, Easily Accessible Transmitter
Reliable Measurement at Constant Accuracy with 0 x DN Inlet Run and No Pressure Loss
Dedicated to Industrial or Municipal Water and Wastewater Measurement
Sensor features
Flexible Engineering with Fixed or Lap-Joint Process Connections
Long-Term Operation with Robust, Completely Welded Sensor
Improved Plant Availability with Sensor Compliant to Industry-Specific Requirements
International Drinking Water Approvals
Transmitter features Gain comprehensive access to process and diagnostic data with multiple, freely combinable I/Os and fieldbus options. Simplify integration with freely configurable I/O functionality and ensure reliability with integrated Heartbeat Technology. The flowmeter features a compact dual-compartment housing with up to 3 I/Os, a backlit display with touch control, and WLAN access. Additionally, a remote display option is available for enhanced flexibility.
Nominal diameter range DN 25 to 3000(1 to 120″)
Wetted materials Liner: Polyurethane; Hard rubber, PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum
Measured variables Volume flow, conductivity, mass flow
Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec
Measuring range 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)
Max. process pressure PN 40, Class 300, 20K
Medium temperature range Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Ambient temperature range Flange material carbon steel: –10 to +60 °C (+14 to +140 °F)
Flange material stainless steel: –40 to +60 °C (–40 to +140 °F)
Sensor housing material DN 25 to 300 (1 to 12″): AlSi10Mg, coated
DN 25 to 2400 (1 to 90″): Carbon steel with protective varnish
Sensor connection housing (standard): AlSi10Mg, coated
Sensor connection housing (option): Polycarbonate; 1.4409 (CF3M) similar to 316L
Transmitter housing material AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygenic transmitter design
Display/Operation 4-line backlit display with touch control (operation from outside)
Configuration via local display and operating tools possible
Remote display available
Outputs 3 outputs:
4-20 mA HART (active/passive)
4-20 mA WirelessHART
4-20 mA (active/passive)
Pulse/frequency/switch output (active/passive)
Double pulse output (active/passive)
Relay output
Inputs Status input 4-20 mA input
Digital communication HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Power supply DC 24 V
AC 100 to 230 V
AC 100 to 230 V / DC 24 V (non-hazardous area)
Hazardous area approvals ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC; JPN, UK Ex, KC
Product safety CE, C-tick, EAC marking
Functional safety Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Metrological approvals and certificates Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Marine approvals and certificates LR approval, DNV approval, ABS approval, BV approval
Pressure approvals and certificates CRN, PED
Material certificates 3.1 material
Hygienic approvals and certificates
 Sanitary approval: 3-A, EHEDG, seals acc. to FDA
