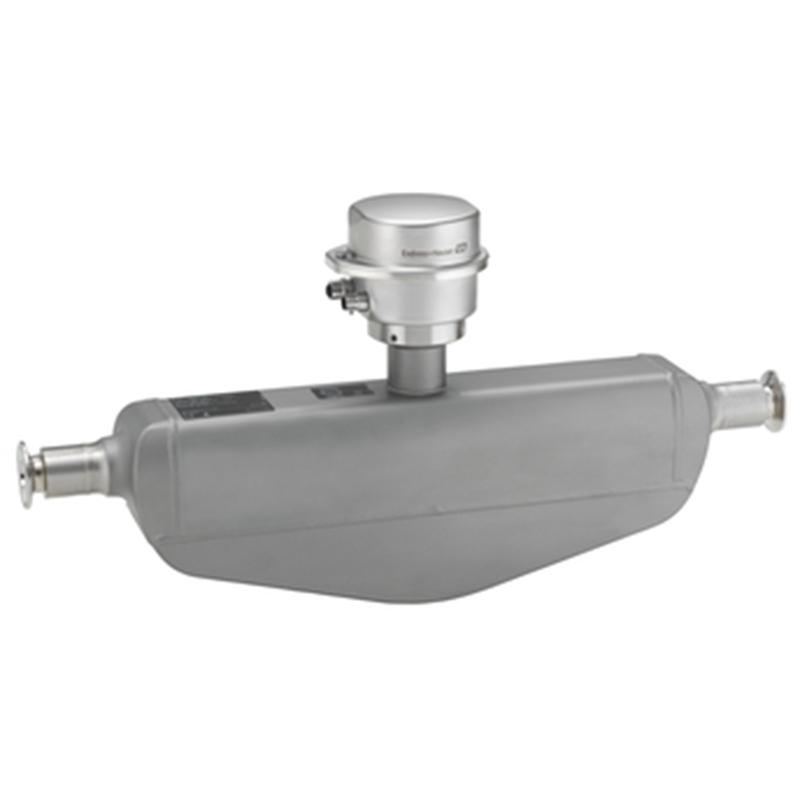

Endress+Hauser Proline Promass S 100 Coriolis flowmeter

Easy-to-clean flowmeter with self-drainable single-tube system and an ultra-compact transmitter

Category:
Description

Easy-to-clean flowmeter with self-drainable single-tube system and an ultra-compact transmitter

Specification

Measuring principle Coriolis
Product headline
Effortless-to-clean flowmeter equipped with a self-drainable single-tube system and an incredibly compact transmitter.
Designed specifically for applications that demand optimal cleanability in hygienic environments.
Sensor features Enhanced process safety – easily cleanable and completely self-drainable tube design. Reduced number of process measuring points – multivariable measurement (flow, density, temperature). Installation that saves space – no requirement for in-/outlet runs.
Wide range of hygienic process connections. Compliant with 3-A and EHEDG standards. Swift recovery from CIP/SIP procedures.
Transmitter features Transmitter that saves space – complete functionality on a minimal footprint. Time-saving local operation without the need for additional software and hardware – integrated web server. Integrated verification – Heartbeat Technology.
Sturdy, ultra-compact transmitter housing. Highest level of protection: IP69. Local display option available.
Nominal diameter range DN 8 to 50 (⅜ to 2″)
Wetted materials Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)
Measured variables Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration
Max. measurement error Mass flow (liquid): ±0.10 %
Volume flow (liquid): ±0.10 %
Density (liquid): ±0.0005 g/cm³
Measuring range 0 to 70 000 kg/h (0 to 2570 lb/min)
Max. process pressure PN 40, Class 150, 20K
Medium temperature range –50 to +150 °C (–58 to +302 °F)
Ambient temperature range Standard: –40 to +60 °C (–40 to +140 °F)
Option: –50 to +60 °C (–58 to +140 °F)
Sensor housing material 1.4301 (304), corrosion resistant
Transmitter housing material Compact: AlSi10Mg, coated
Compact/ultra‐compact: 1.4301 (304)
Degree of protection Standard: IP66/67, type 4X enclosure
Option: IP69
Display/Operation 4‐line backlit display available (no local operation)
Configuration via web browser and operating tools possible
Outputs 4‐20 mA HART (active)
Pulse/frequency/switch output (passive)
Inputs None
Digital communication HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET
Power supply DC 20 to 30 V
Hazardous area approvals ATEX, IECEx, cCSAus, INMETRO, NEPSI, EAC
Product safety CE, C-Tick, EAC marking
Metrological approvals and certificates Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
Heartbeat Technology complies with the requirements for measurement traceability according to ISO 9001:2015 – Section 7.1.5.2 a (TÜV SÜD attestation)
Pressure approvals and certificates PED, CRN
Material certificates 3.1 material
Hygienic approvals and certificates 3‐A, EHEDG, cGMP
