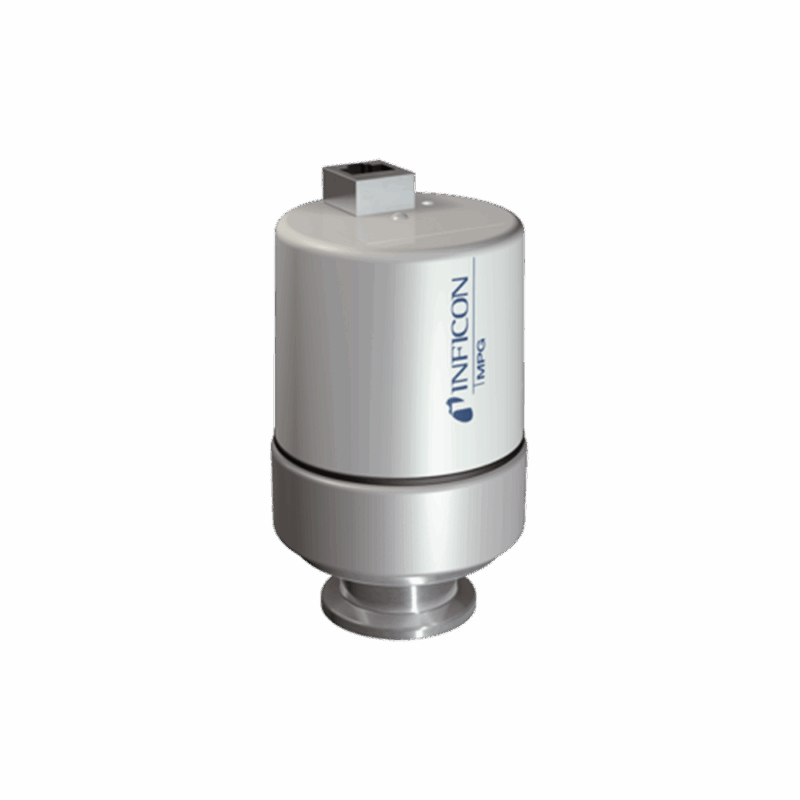

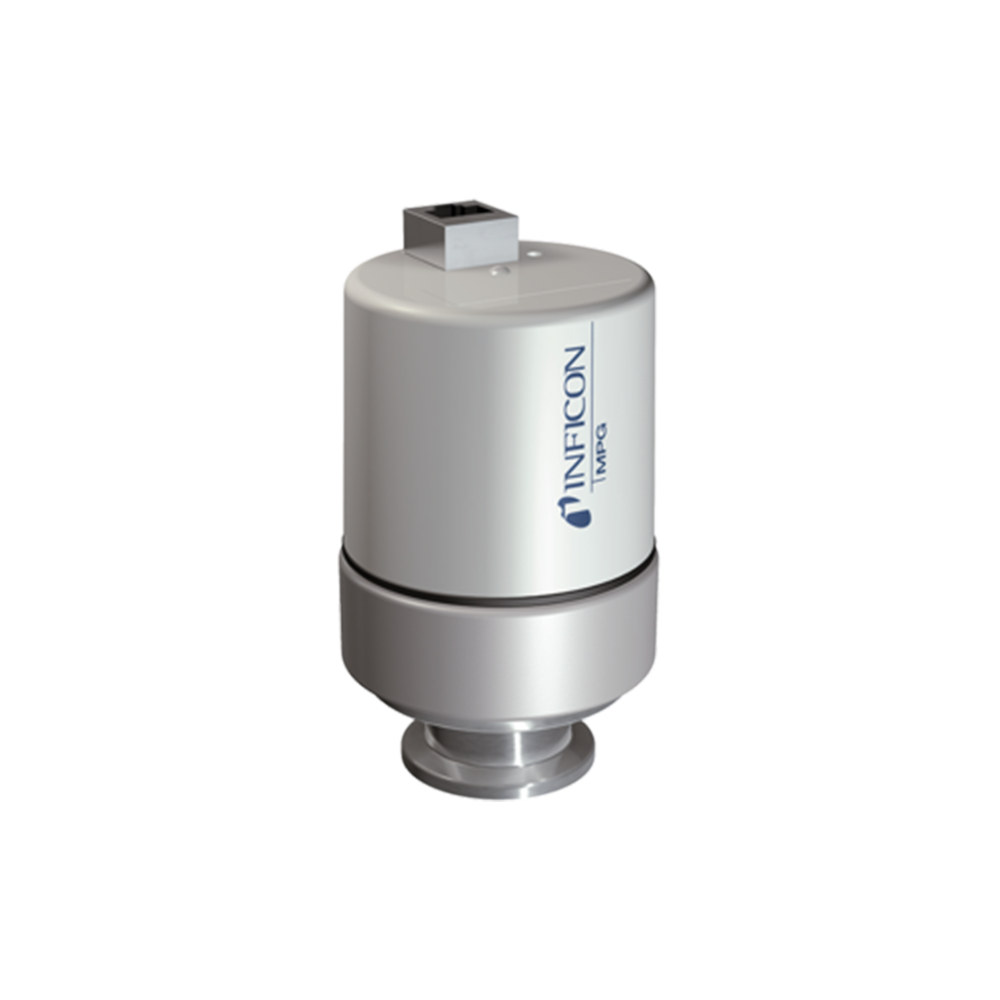

INFICON Cold cathode vacuum gauge MPG40X Atmospheric pressure to ultra-high vacuum gauge
The INFICON Pirani vacuum gauges MPG400 and MPG401 have a measurement range of 5 x 10-9 mbar to atmospheric pressure (3.8 x 10-9 Torr to atmospheric pressure). Integrating multiple technologies into a single compact device with a logarithmic analog output signal significantly reduces the complexity of installation, setup, and integration.
Description
The INFICON Pirani vacuum gauges MPG400 and MPG401 have a measurement range of 5 x 10-9 mbar to atmospheric pressure (3.8 x 10-9 Torr to atmospheric pressure). Integrating multiple technologies into a single compact device with a logarithmic analog output signal significantly reduces the complexity of installation, setup, and integration.
Benefit
Composite vacuum gauge – inverted magnetron and Pirani
Wide measurement range from 5 X 10-9 mbar to atmospheric pressure
There will be no phenomenon of filament burnout
Excellent ignition properties
Easy to clean
FPM or metal sealed feeding device
LED indicator, lights up when high voltage is applied
Logarithmic analog output signal
Part Number
| MPG400 FPM sealed | |
| Part Number | Description |
| 351-010 | MPG400 FPM sealed, DN 25 ISO-KF |
| 351-011 | MPG400 FPM sealed, DN 40 ISO-KF |
| 351-012 | MPG400 FPM sealed, DN 40 CF-F |
| MPG401 metal-sealed | |
| Part Number | Description |
| 351-020 | MPG401 metal sealed, DN 25 ISO-KF |
| 351-021 | MPG401 metal sealed, DN 40 ISO-KF |
| 351-022 | MPG401 metal sealed, DN 40 CF-F |
| 351-023 | Magnetic shield |
