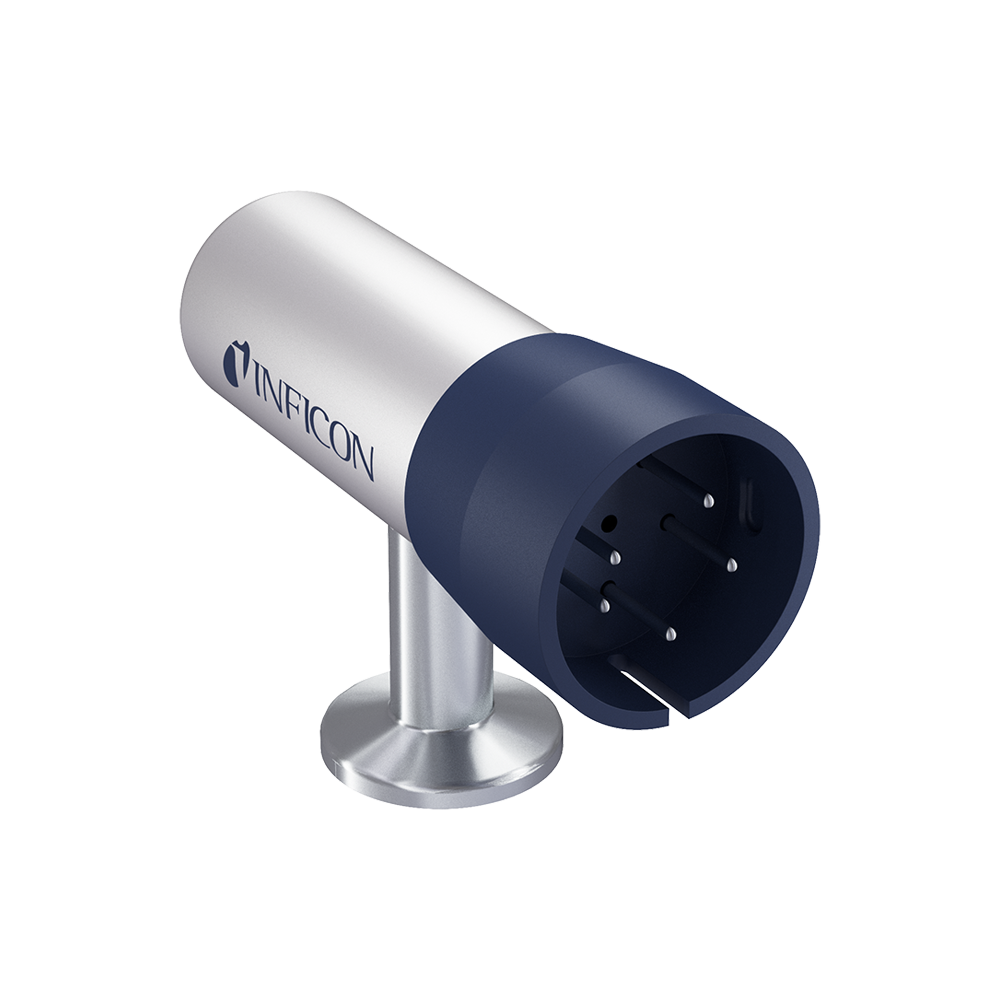

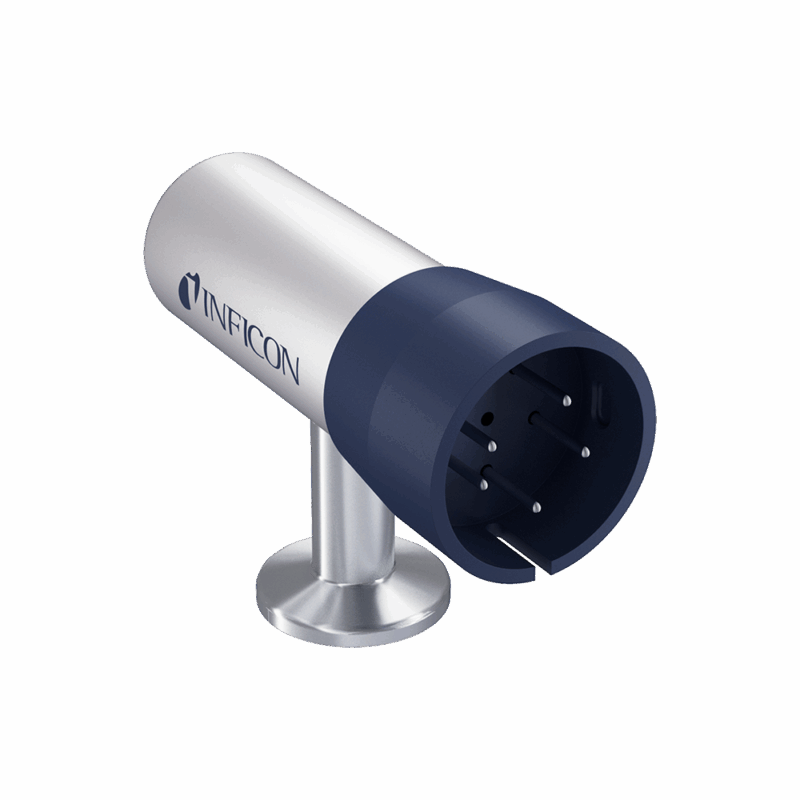

INFICON Pirani vacuum gauge PGE050 Convection enhanced passive Pirani meters for VGC083 and VGC031
Convection enhanced Pirani technology can achieve a wider measurement range and higher accuracy near the atmosphere
Description
Advantage
Convection enhanced Pirani technology can achieve a wider measurement range and higher accuracy near the atmosphere
Gold plated tungsten wire
The mechanical structure is sturdy and not easily affected by mechanical impact and vibration
Multiple flange options
Compliant with standards: CE and RoHS
Simply insert to replace Granville Phillips ® Convectron ® Pressure gauge sensor (same plug/pin)
PGE050 accepts Granite Phillips ® Convectron ® Controllers, cables, and modules
Ideal pressure gauge sensor for upgrading installed Pirani and thermocouple pressure gauges
PGE050
| Measuring principle | Convective enhanced Pirani |
| N2 | 1.3×10-4 … 1333 millibar |
| 1.3×10-4 … 1.3×10-3 millibar | 0.1×10-3 millibar resolution |
| 1.3×10-3 … 530 millibar | Reading of ±10 |
| 530 … 1333 millibar | Reading of ±2.5% |
| Repeatability (N2) | Reading of ±2 |
| Feedthrough | glass |
| Baking temperature | ≤150 °C |
| Materials exposed to vacuum | Stainless steel, glass, gold-plated tungsten wire, nickel, polytetrafluoroethylene (Teflon®) |
| Characteristic |
Gold plated tungsten (W) filament Installation direction: It is recommended to install horizontally (Direction has no effect on measurements below 1 millibar) |
