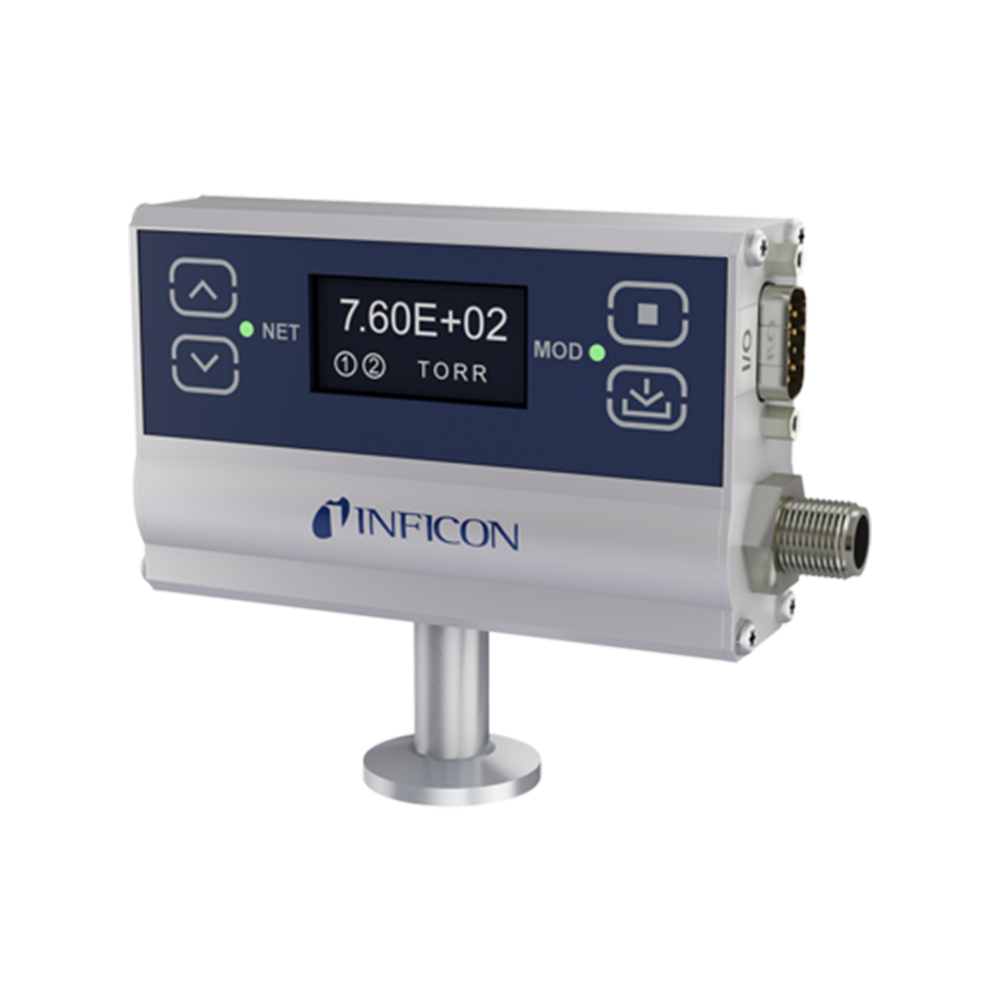

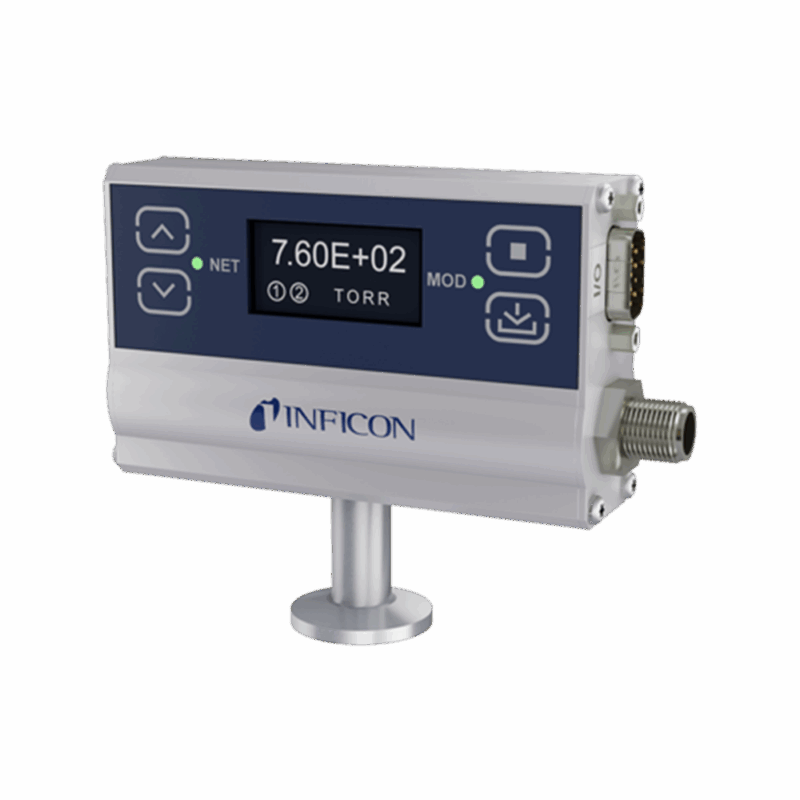

INFICON Pirani vacuum gauge PGE500 – DeviceNet Atmospheric pressure to medium vacuum gauge
Convection enhanced Pirani technology, with a wide measurement range and higher accuracy when approaching the atmosphere
Integrated active meter, built-in display screen, 2 set points, digital DeviceNet interface
Bright digital OLED display screen with keyboard, easy to set up.
Description
Advantage
Convection enhanced Pirani technology, with a wide measurement range and higher accuracy when approaching the atmosphere
Integrated active meter, built-in display screen, 2 set points, digital DeviceNet interface
Bright digital OLED display screen with keyboard, easy to set up.
The measurement display unit preset by the factory can be selected through the keyboard
User programmable set point relay (factory preset required for bulk orders)
Gold plated tungsten or platinum wire for corrosive applications
Mechanical strength, highly sturdy, not easily affected by mechanical impact and vibration
On site replaceable backup sensor unit
Flange selection
Compliance and standards. CE, RoHS
Direct plug-in compatible alternative to MKS/Granville Phillips ® Mini-Convectron ® DeviceNet version of GP275 module
| Measurement range (N2) |
1.3×10-4 … 1333 mbar
1×10-4 … 1000 Torr
1.3×10-2 … 133’000 Pa
|
|
| Accuracy (N2) |
1.3×10-4 … 1.3×10-3 mbar | 0.1×10-3 mbar resolution |
| 1.3×10-3 … 530 mbar | ±10 % of reading | |
| 530 … 1333 mbar | ±2.5 % of reading | |
| 1×10-4 … 1×10-3 Torr | 0.1 mTorr resolution | |
| 1×10-3 … 400 Torr | ±10 % of reading | |
| 400 … 1000 Torr | ±2.5 % of reading | |
| 1.3 × 10-2 … 1.3 × 10-1 Pa | 0.1 × 10-1 mbar resolution | |
| 1.3 × 10-1 … 53 kPa | ±10 % of reading | |
| 53 … 133 kPa | ±2.5 % of reading | |
| Repeatability (N2) | ±2 % of reading | |
| Admissible temperature |
Operation (ambient) | 0 … +40 °C |
| Storage | -40 … +70 °C | |
| Bakeout (electronics removed) | ≤150 °C | |
| Supply voltage | +12 … +26 V (dc) | |
| Setpoint relay |
2 (single-pole double-throw relays (SPDT))
1A at 30V (dc) resistive or V (ac) non-inductive
|
|
| Materials exposed to vacuum |
platinum, 304 & 316 stainless steel, glass, nickel, Teflon®, gold plated tungsten
|
|
