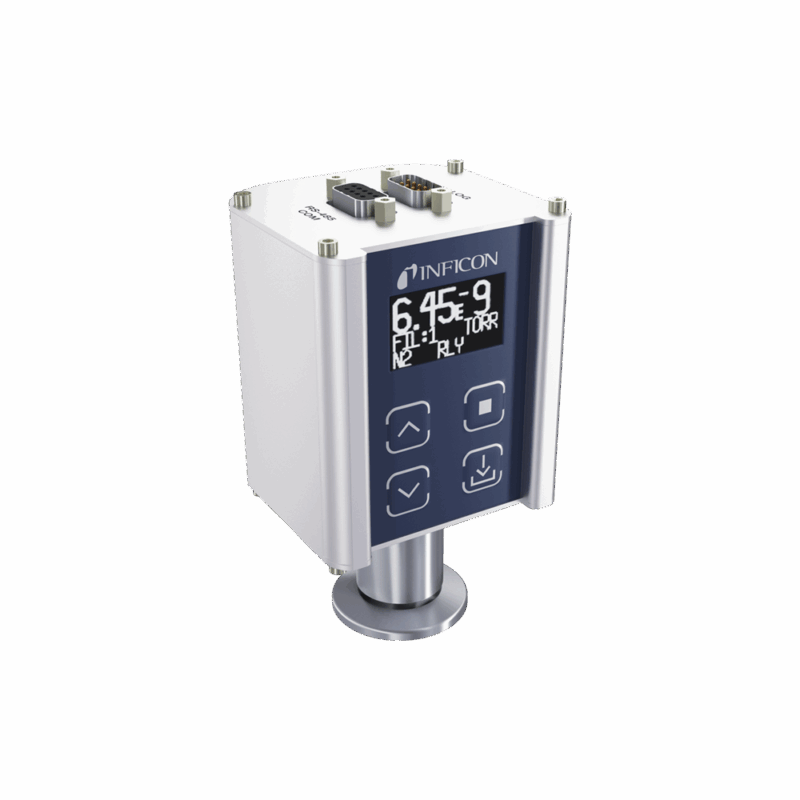

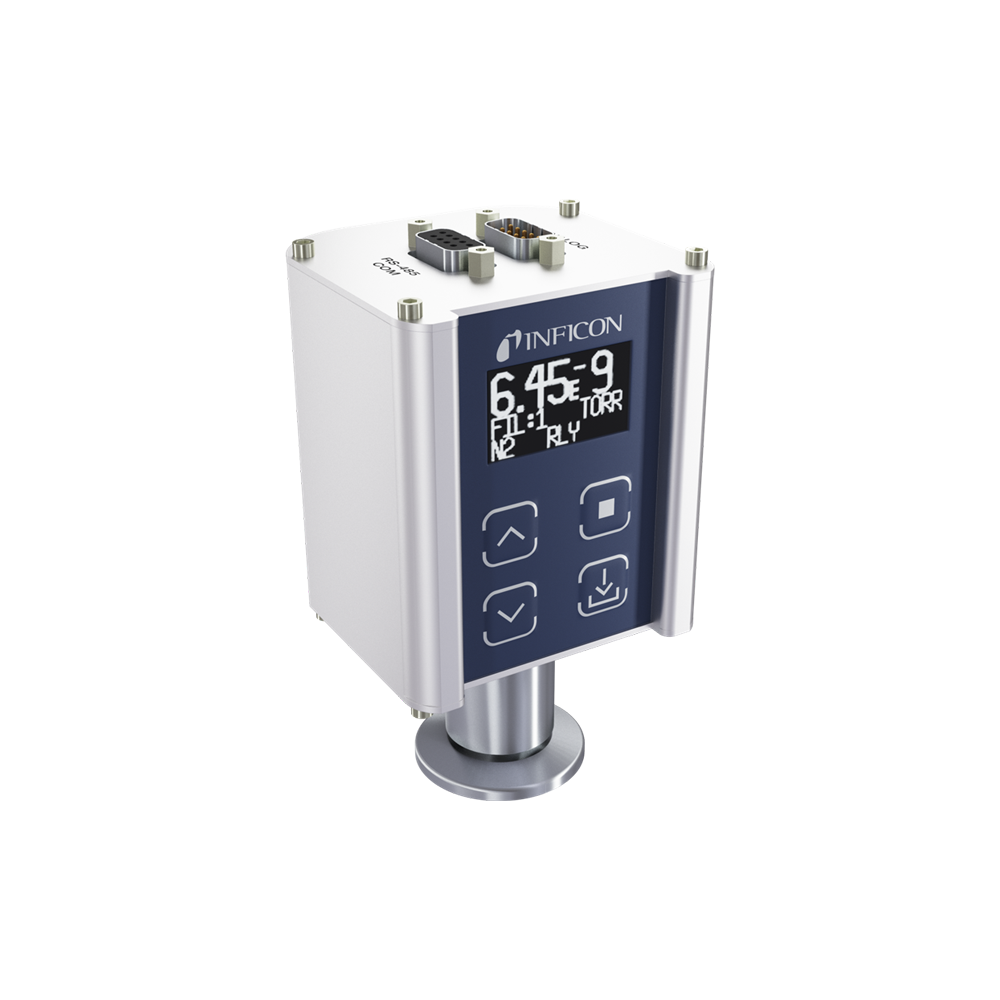

INFICON Thermoelectric vacuum gauge BAG302 Medium to ultra-high vacuum gauge
Measurement range from 1.3 × 10-9 to 6.7 × 10-2 mbar (1 × 10-9 to 5 × 10-2 Torr)
Double standard long service life yttrium iridium oxide wire
Integrated active measuring instrument with built-in display, set point, analog output, and standard integrated RS485 digital interface
Description
Benefit
Measurement range from 1.3 × 10-9 to 6.7 × 10-2 mbar (1 × 10-9 to 5 × 10-2 Torr)
Double standard long service life yttrium iridium oxide wire
Integrated active measuring instrument with built-in display, set point, analog output, and standard integrated RS485 digital interface
Bright digital OLED display with keyboard for simplified setup, operation, and programming
User programmable set point relay
User programmable display units: mbar, Torr, or Pa
User selectable range for automatic adjustment of emission current
Mechanical strength and durability
Selection of various flanges
Easy to replace sensing components
Compliance and standards: CE, RoHS
Directly replace Granville Phillips ® 354 Micro-Ion ® Module – Same control function including software commands (RS485) (Granville Phillips) ® And Micro Ion ® It is a registered trademark of MKS Instruments, Andover, MA
| Measurement range (air, O2, CO, N2) |
mbar | 1.3 x 10-9 … 6.7 x 10-2 |
| Torr | 1 x 10-9 … 5 x 10-2 | |
| Pa | 1.3 x 10-7 … 6.7 | |
| Accuracy (N2) |
||
| 1.3×10-8 … 6.7 ×10-2 mbar | % of reading | ±15 |
| 1×10-8 … 5×10-2 Torr | % of reading | ±15 |
| Repeatability | % of reading | ±5 |
| Temperature | °C | +10 … +50 |
| Storage | °C | 0 … +40 |
| Materials exposed to vacuum | °C | -40 … +70 |
| Bakeout at flange (sensor only, electrics removed) | °C | 200 |
| Supply voltage | V (dc) | +20 … +28 |
| Setpoint relay | 1 (single-pole double-throw relay (SPDT)) 1 A at 30 V (dc) resistive, or V (ac) non-inductive |
|
| Materials exposedtovacuum | Y2O3, Ir, W, Ta, stainless steel, glass, Ni | |
