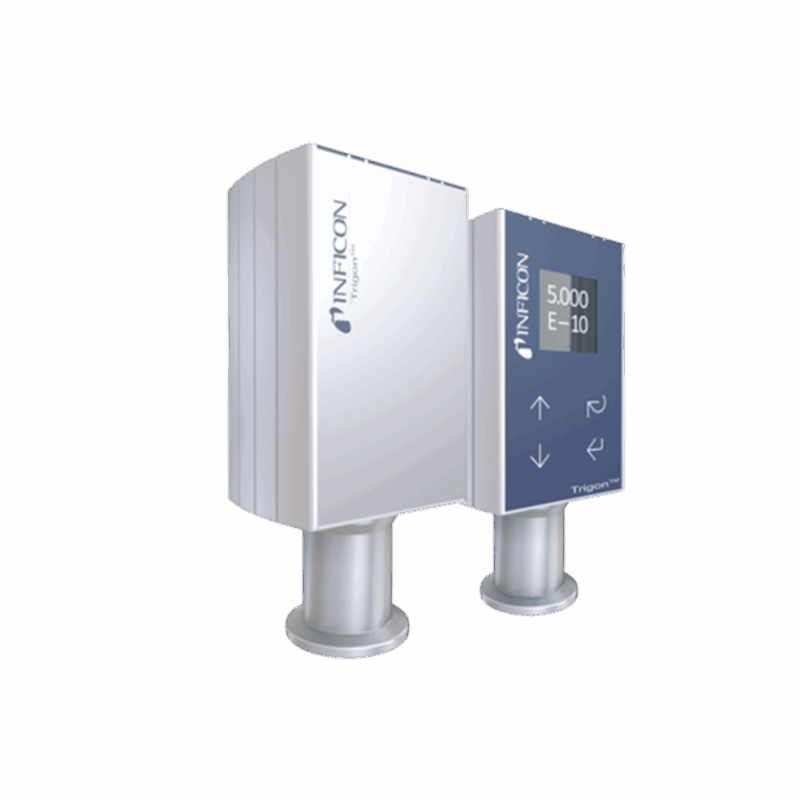

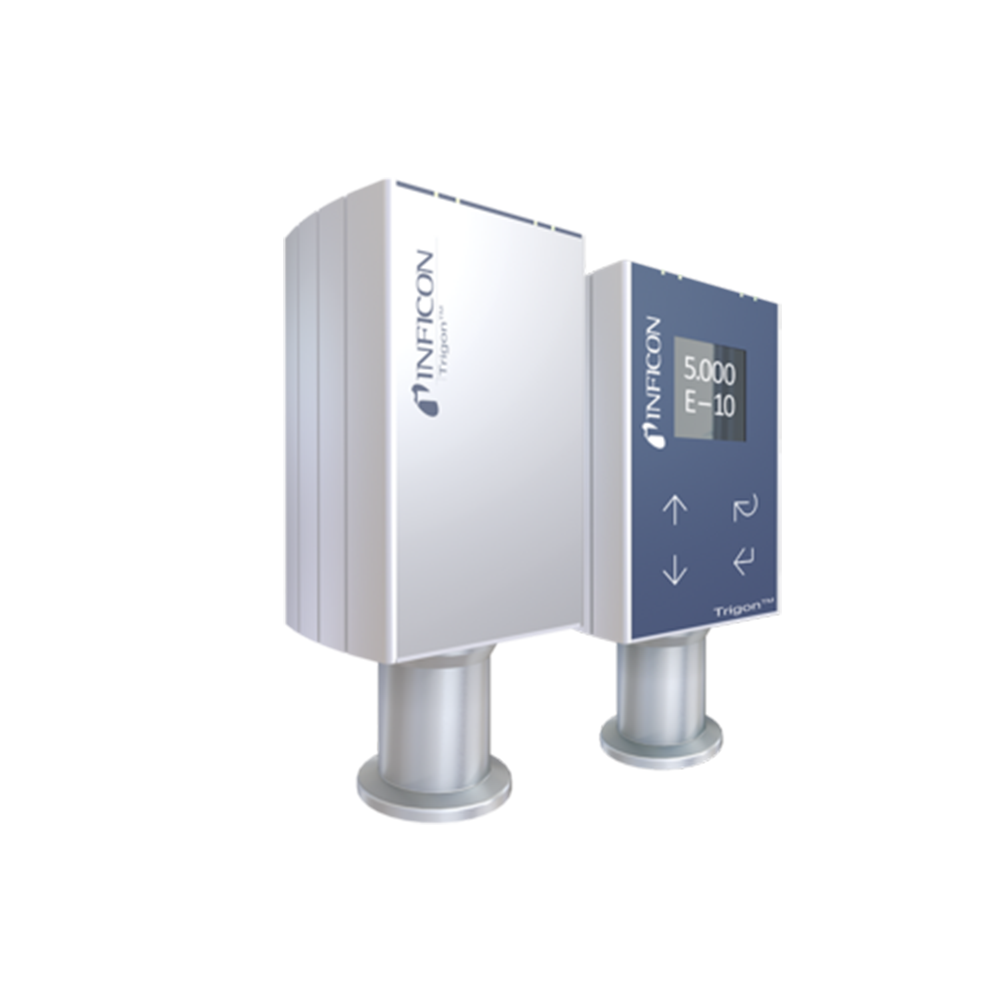

INFICON Trigon™ BAG552

For applications that require independent thermal ion gauge technology, Trigon ™ The series includes the Bayard Alpert thermoelectric ionization gauge BAG552, which uses a single technology.

BAG552 is specifically designed for pressure ranges of 5 × 10-10 Designed for gas vacuum measurement at 2 x 10-2 millibars. Supports dual filaments, with excellent precision, repeatability, and service life. BAG552 can also be used in conjunction with the INFICON vacuum gauge controller series VGC501, VGC502, and VGC503.

advantage

Pure Bayard Alpert measurement system, suitable for ultra-high and high pressure measurement ranges
Dual filament design
Electrical isolation of electronic devices to avoid stray currents
Sliding launch mode to avoid pressure jumps and freezing when switching launch streams
Mobile calibration data chip extends baking time
Set point relay
Bright large screen OLED display (rotatable 90 °) with user interface
Analog output, RS232C serial interface EtherCAT ® Interface
Can be used in conjunction with the VGC50x controller series
Compliant with RoHS regulations
