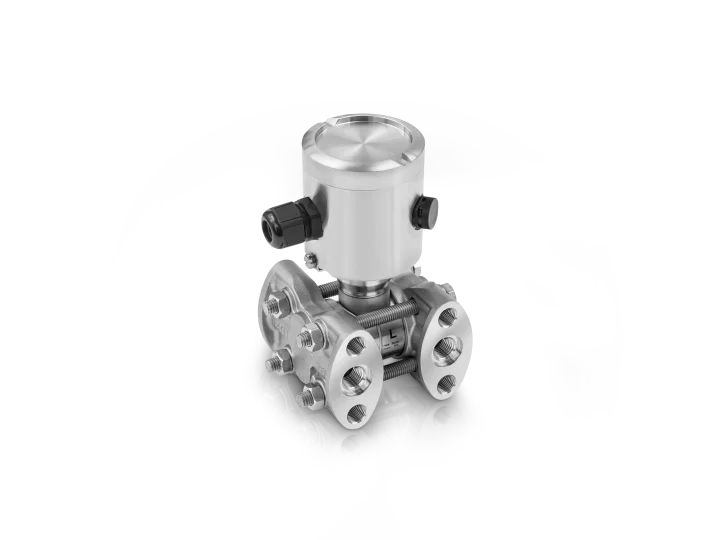

KROHNE Differential pressure transmitter for general flow, level and differential pressure applications
The OPTIBAR DP 3050 is a differential pressure transmitter with integrated absolute pressure measurement. It is the ideal choice for general flow, level and differential pressure applications. The DP transmitter is currently the most compact pressure transmitter in the market – worldwide. This makes it particularly suitable for space-saving installation in applications with limited space, e.g. in mechanical and technical plant engineering. The compact DP transmitter features the proven-in-use DP transmitter technology of the OPTIBAR series, but comes without the high-end options of the more advanced OPTIBAR DP 7060. This way, the OPTIBAR DP 3050 is also one of the most cost-effective DP pressure transmitters in the market. For DP flow measurements it can be perfectly combined with KROHNE primary flow elements. Equipped with diaphragm seals, it is the right choice for hydrostatic level and general purpose DP measurements.
Specifications
Depending on selected device configuration
General information
| Product type | Pressure transmitter |
| Product family name | OPTIBAR |
| Product positioning | For general flow, level and differential pressure applications |
| Measured media | Liquids, Gases |
Operating conditions
| Process temperature | 40…+105°C/ -40…+221°F |
Materials
| Diaphragm | Austenitic stainless steel (1.4435/316L), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Austenitic stainless steel (1.4435/316L) – gold-coat |
| Fill fluid | Silicone oil, Halocarbon oil |
| Measuring cell seal | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Copper |
Process connections
| Flange connections | EN (1092-1): DN25…80 ASME (B 16.5): 1…3″ |
| Thread connections | Female: ¼ NPT, ½ NPT |
| Hygienic adapters | With OPTIBAR DS series |
Approvals/Standards
| Ingress protection | IP66/67, NEMA4X |
| Certificates/Approvals Hygienic | ATEX, IECEx, NEPSI |
| Certificates/Approvals Others | Oxygen, Pressure Equipment Directive (PED) |
| NAMUR compliance | NE 107, NE 21, NE 43, NE 53 |
Communication
| Analogue outputs | 4…20 mA |
| Digital outputs | HART® |
Overview
The OPTIBAR DP 3050 is a differential pressure transmitter with integrated absolute pressure measurement. It is the ideal choice for general flow, level and differential pressure applications. The DP transmitter is currently the most compact pressure transmitter in the market – worldwide. This makes it particularly suitable for space-saving installation in applications with limited space, e.g. in mechanical and technical plant engineering. The compact DP transmitter features the proven-in-use DP transmitter technology of the OPTIBAR series, but comes without the high-end options of the more advanced OPTIBAR DP 7060. This way, the OPTIBAR DP 3050 is also one of the most cost-effective DP pressure transmitters in the market. For DP flow measurements it can be perfectly combined with KROHNE primary flow elements. Equipped with diaphragm seals, it is the right choice for hydrostatic level and general purpose DP measurements.
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Robust and space-saving stainless steel construction (316L / 1.4404)
- Total 3D linearisation for highest accuracy and stability under all process conditions
- Integrated static pressure measurement for additional process information
- Outstanding temperature stability even under harsh conditions
- Excellent repeatability and long-term stability
- Combined DP, SP and T measurements for maximum process reliability
- Suitable for OPTIBAR DSD diaphragm seal assembly
- Can be combined with many primary elements of the OPTIBAR OS and OPTIBAR PT series for flow measurement

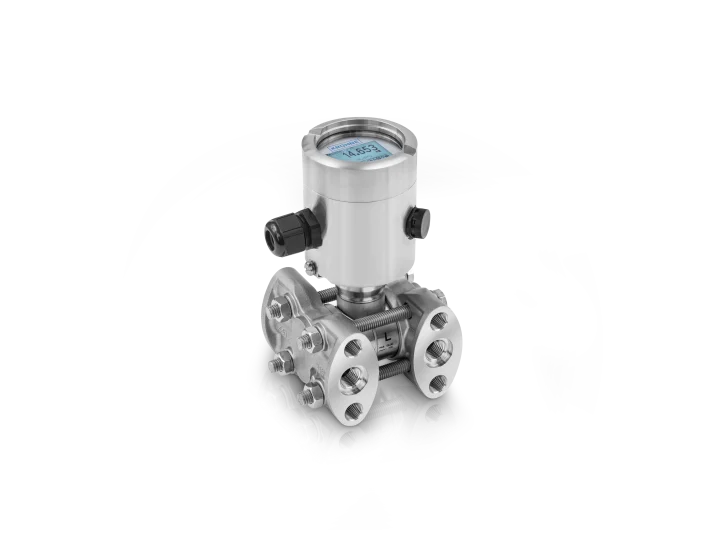

- Optional display and adjustment module with intuitive user concept
- Internal push buttons for quick parameter set up
- Ex ia approvals for gas and dust atmosphere
