Description

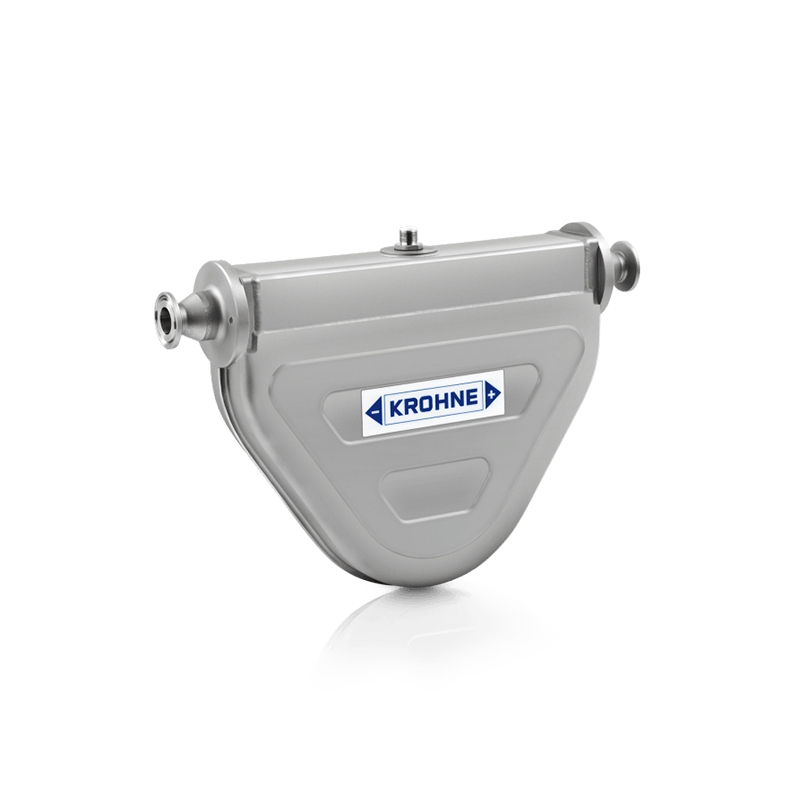

KROHNE OPTIBATCH 4011 Coriolis mass flowmeter for linear and rotating filling machines
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIBATCH |
| Product positioning | For linear and rotating filling machines |
| Measurement principle | Coriolis |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig |
| Process temperature | 0…+100°C/ +32…+212°F |
Materials
| Measuring tube | Austenitic stainless steel (1.4404/316L) |
Process connections
| Hygienic connections | Clamp (DIN 32676): DN10, DN15, DN20, DN25 Clamp (ISO 2852): 25 Tri-Clamp: ½”, ¾”, 1″ Clamp (BS 4825): ¾” Threaded ferrule (DIN 11851): DN10, DN15, DN20, DN25 Flange with collar (DIN 11864-2A): DN20 Threaded ferrule (SMS 1146): 25 mm IDF: 10A, 15A |
Approvals/Standards
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004, ASME BPE |
Communication
| Discrete outputs | Pulse, Frequency |
| Digital outputs | Modbus RTU |
