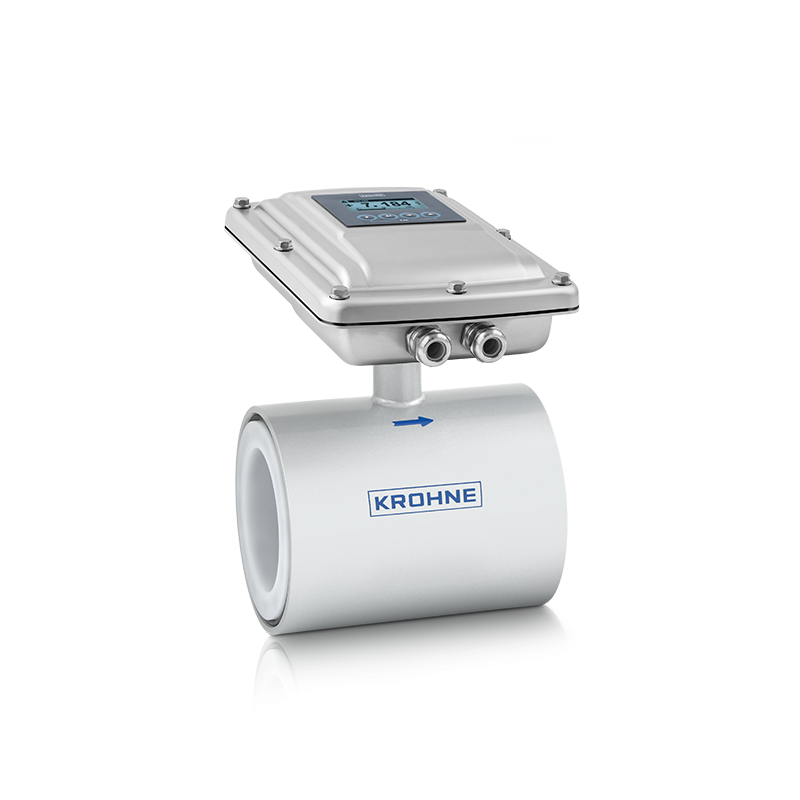

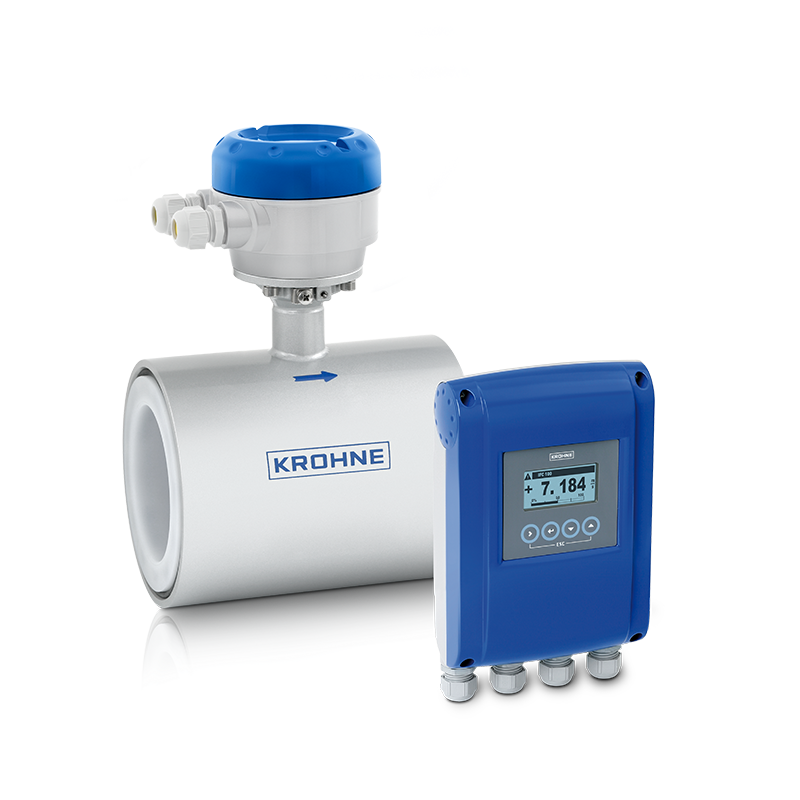

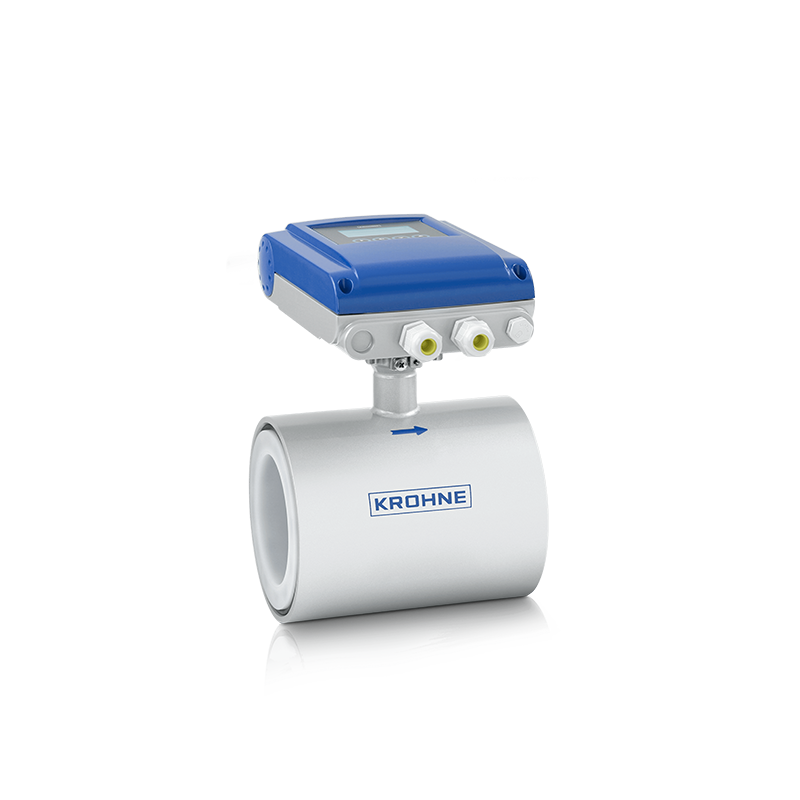

KROHNE OPTIFLUX 1100 Electromagnetic flowmeter
KROHNE OPTIFLUX 1100 Electromagnetic flowmeter for general applications with conductive liquids
Description
KROHNE OPTIFLUX 1100 Electromagnetic flowmeter for general applications with conductive liquids
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For general applications with conductive liquids |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 16 barg/ 230 psig |
| Process temperature | -25…+120°C/ -13…+248°F |
Materials
| Liner | Perfluoroalkoxy alkane (PFA) |
Process connections
| Flange connections | EN (1092-1): DN10…150 ASME (B 16.5): ⅜…6″ JIS (B 2220): 10…150A |
| Other connections | Sandwich (wafer) connection: DN10…150 ⅜…6″ 10…150A |
Approvals/Standards
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Pulse, Frequency, Status |
| Digital outputs | HART®, Modbus RTU |
Download
