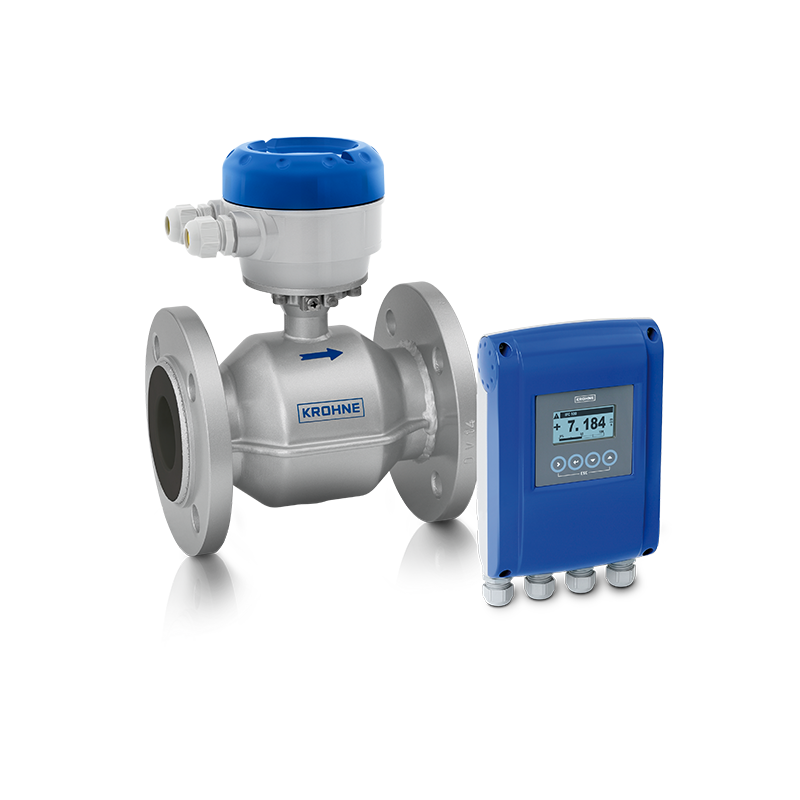

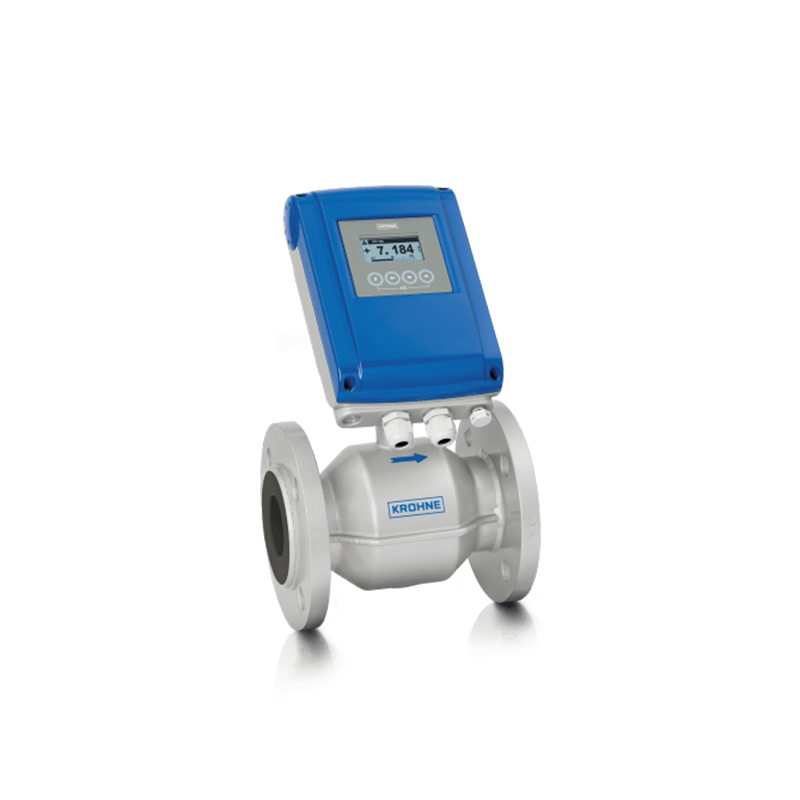

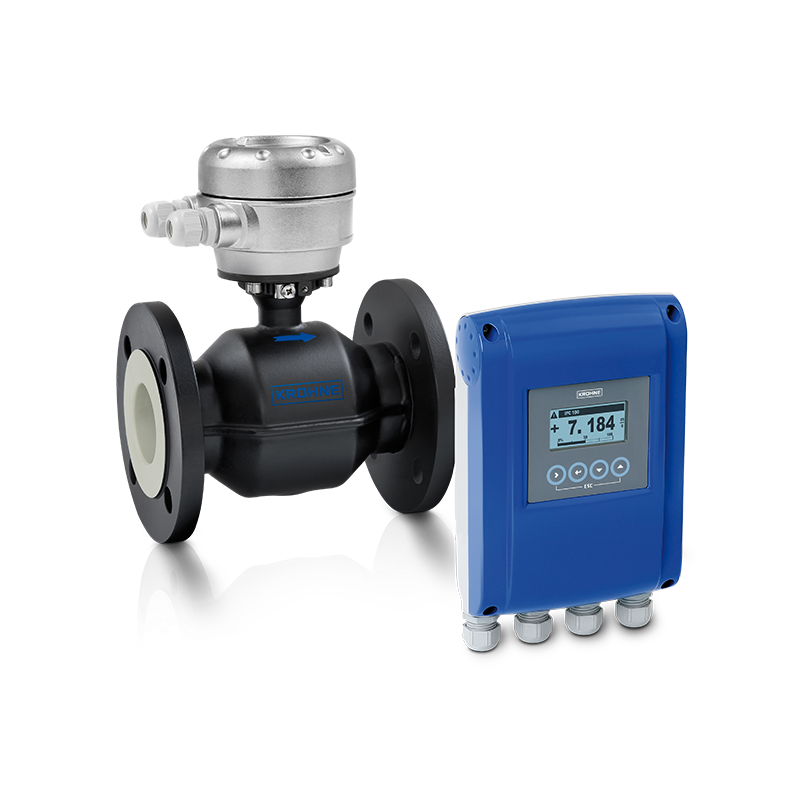

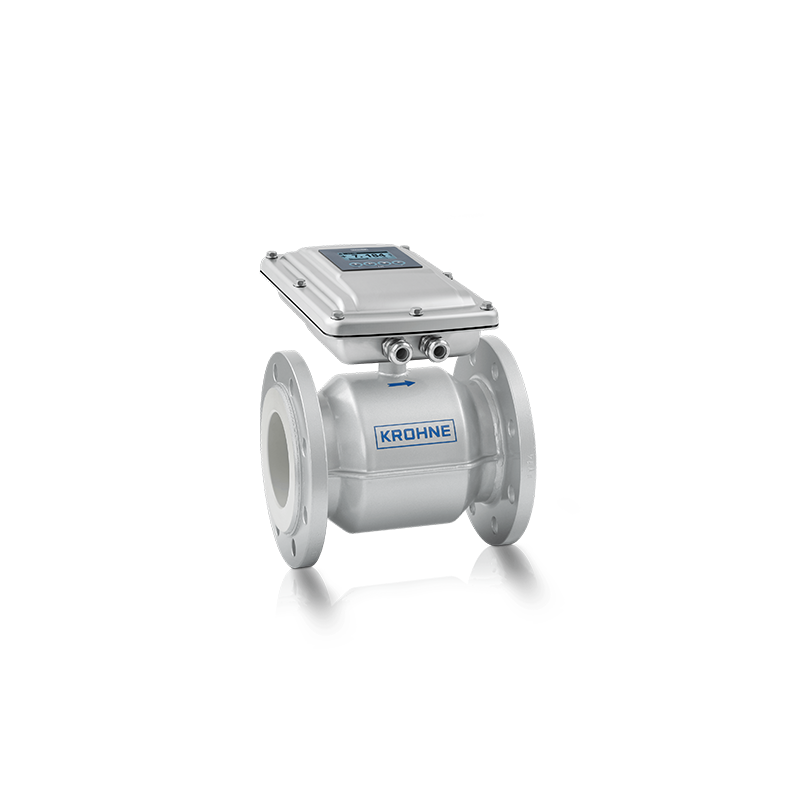

KROHNE OPTIFLUX 2100 Electromagnetic flowmeter
KROHNE OPTIFLUX 2100 Electromagnetic flowmeter for all standard water and wastewater applications
Description
KROHNE OPTIFLUX 2100 Electromagnetic flowmeter for all standard water and wastewater applications
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For all standard water and wastewater applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 40 barg/ 580 psig |
| Process temperature | -5…+90°C/ +23…+194°F |
Materials
| Liner | Polypropylene (PP), Hard rubber |
Process connections
| Flange connections | EN (1092-1): DN25…1200 ASME (B 16.5): 1…48″ JIS (B 2220): 25…1000A |
Approvals/Standards
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, FM, CSA |
| Certificates/Approvals Potable Water | DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Pulse, Frequency, Status |
| Digital outputs | HART® |
