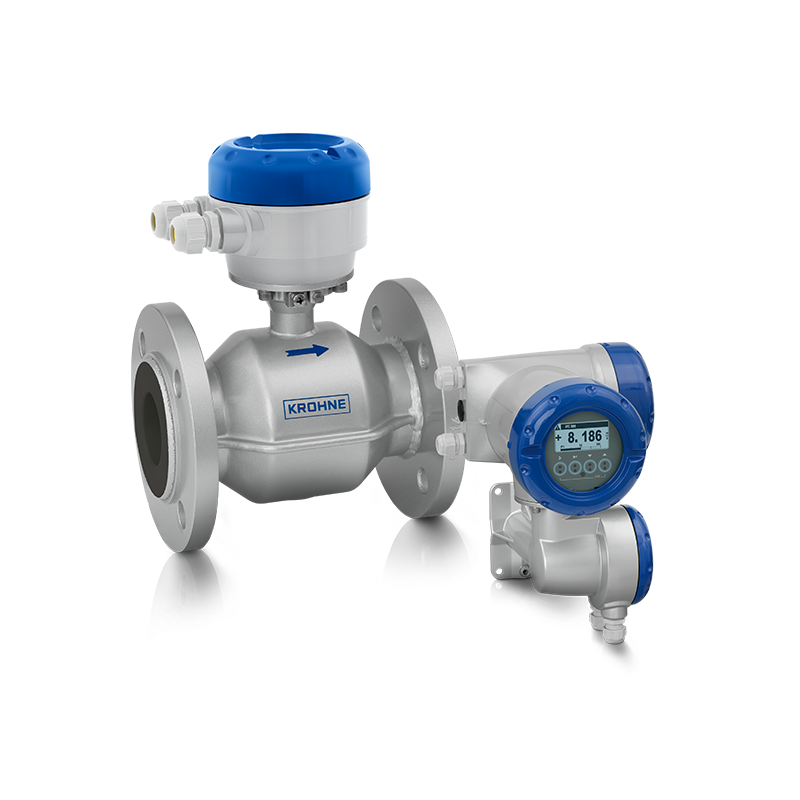

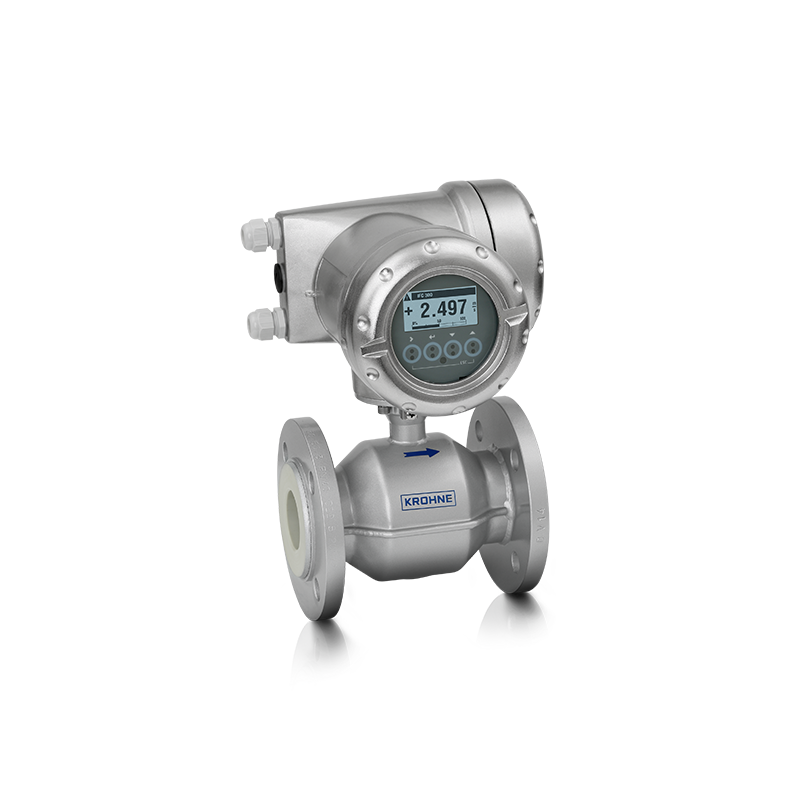

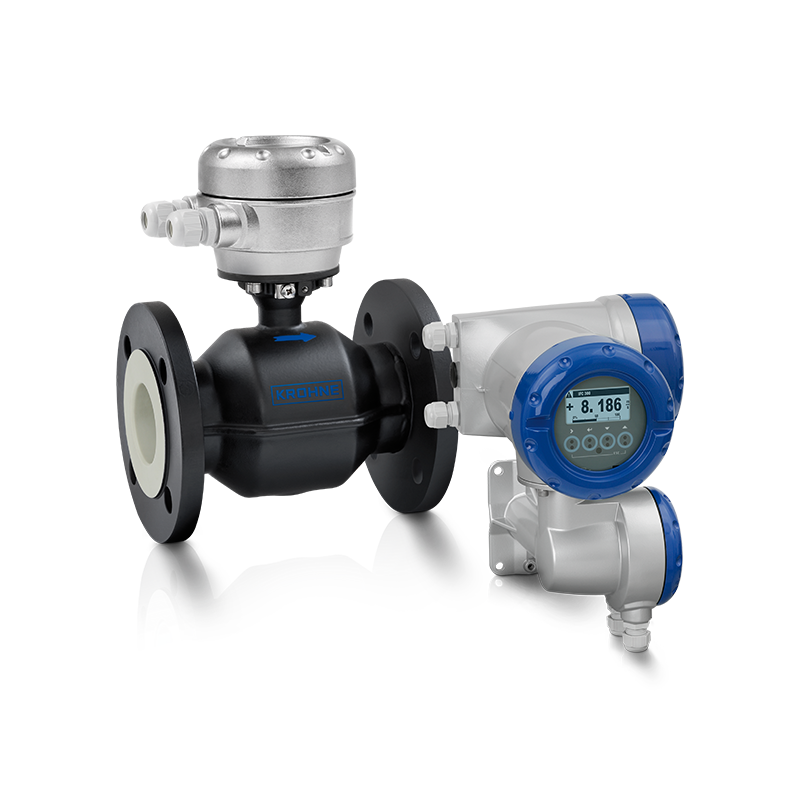

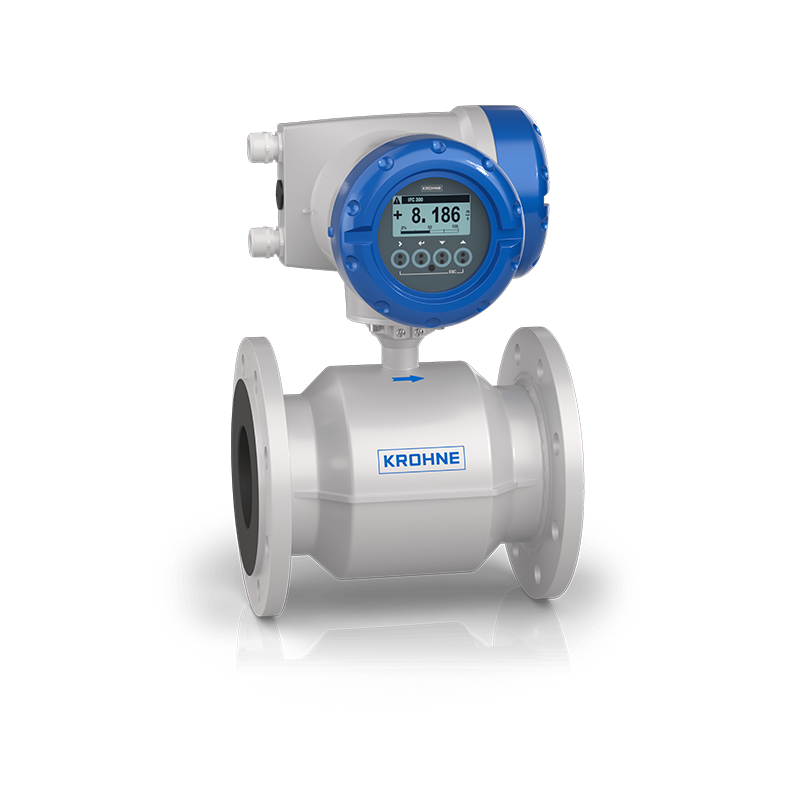

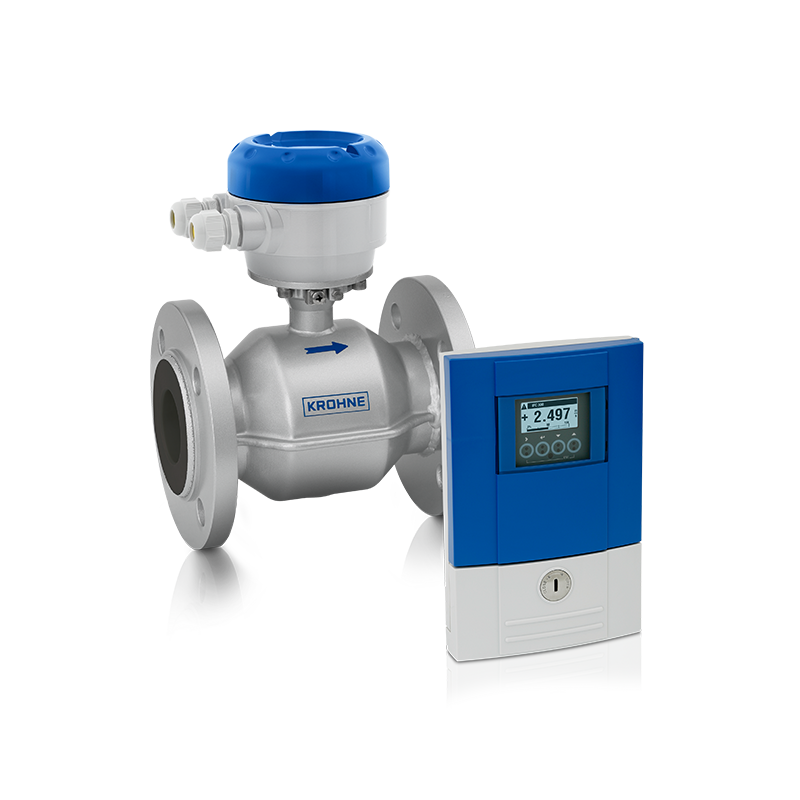

KROHNE OPTIFLUX 2300 Electromagnetic flowmeter
KROHNE OPTIFLUX 2300 Electromagnetic flowmeter for advanced water and wastewater applications
Description
KROHNE OPTIFLUX 2300 Electromagnetic flowmeter for advanced water and wastewater applications
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIFLUX |
| Product positioning | For advanced water, wastewater and custody transfer (CT) applications |
| Measurement principle | Electromagnetic |
| Measured media | Liquids |
Operating conditions
| Process pressure | max. 16 barg/ 230 psig |
| Process temperature | -5…+90°C/ +23…+194°F |
Materials
| Liner | Polypropylene (PP), Hard rubber |
Process connections
| Flange connections | EN (1092-1): DN25…3000 ASME (B 16.5): 1…120″ JIS (B 2220): 25…1000A |
Approvals/Standards
| Certificates/Approvals Custody transfer (CT) | MI-001, OIML R49 |
| Certificates/Approvals Ex | ATEX, cQPSus, IECEx, NEPSI, EAC Ex, INMETRO, FM, CSA, KCs, PESO, IA |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Potable Water | DVGW, NSF, TZW, KTW, WRAS, KIWA, ACS |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, PROFINET |
