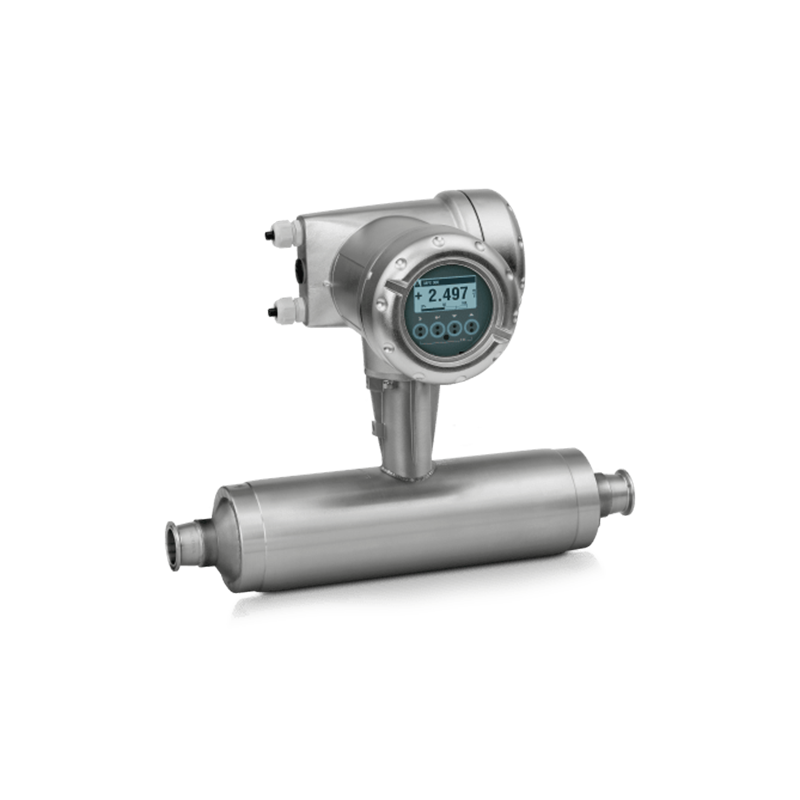

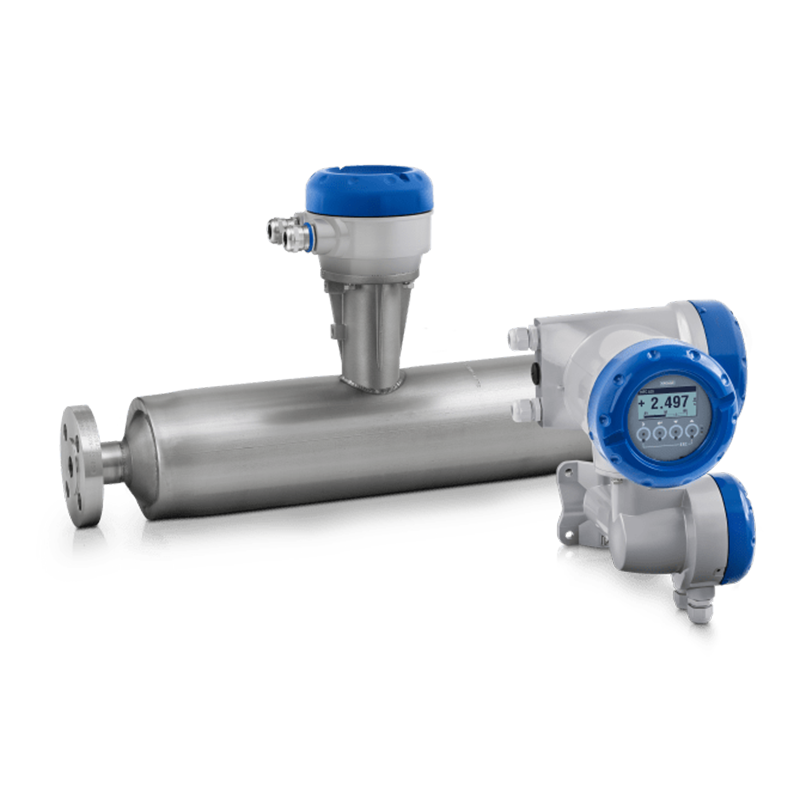

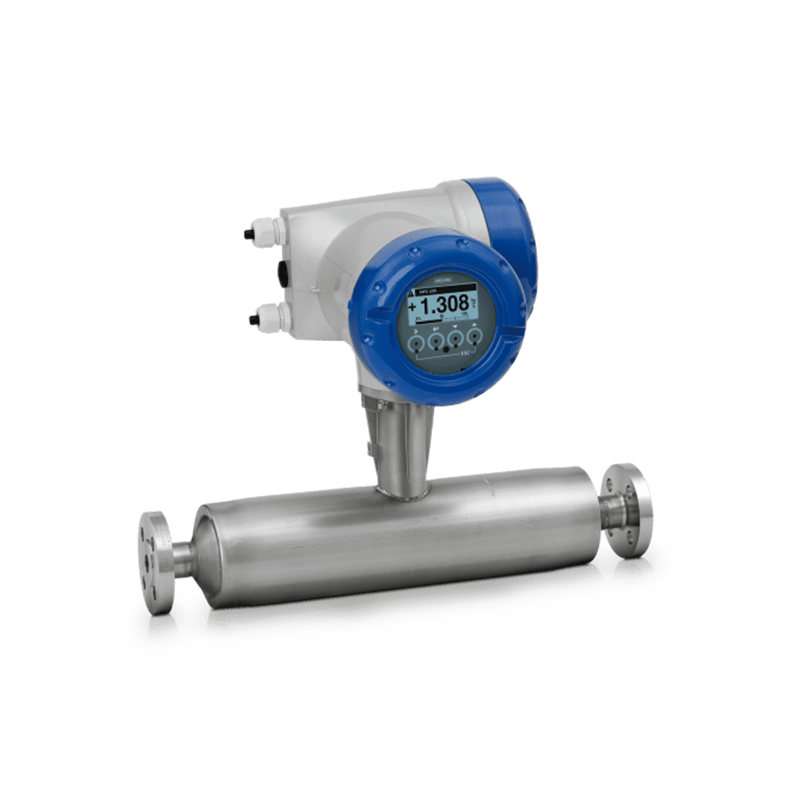

KROHNE OPTIMASS 1400 Coriolis mass flowmeter
KROHNE OPTIMASS 1400 Coriolis mass flowmeter for universal applications and process control
Description
KROHNE OPTIMASS 1400 Coriolis mass flowmeter for universal applications and process control
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For universal applications and process control |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 100 barg/ 1450 psig |
| Process temperature | -40…+130°C/ -40…+266°F |
Materials
| Measuring tube | Duplex stainless steel (1.4462/318) |
Process connections
| Flange connections | EN (1092-1): DN15…100 ASME (B 16.5): ½…4″ JIS (B 2220): 15…80A |
| Hygienic connections | Clamp (DIN 32676): DN25, DN40, DN50, DN80 Clamp (ISO 2852): 25, 40, 51, 76.1 Tri-Clamp: 1″, 1½”, 2″, 3″ Threaded ferrule (DIN 11851): DN25, DN40, DN50, DN80 Flange with groove (DIN 11864-2A): DN25, DN40, DN50, DN80 Threaded ferrule (SMS 1146): 25 mm, 38 mm, 51 mm, 76 mm |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, EAC Ex, cFMus, INMETRO, KCs, UKEX |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Nuclear |
Nuclear qualification on request (e.g. acc. to ASME III, RCC-M/E, etc.) |
| Certificates/Approvals Others | NACE |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ fieldbus, HART®, Profibus-PA, Profibus-DP, Modbus RTU, EtherNet/IP™, PROFINET, Bluetooth |
