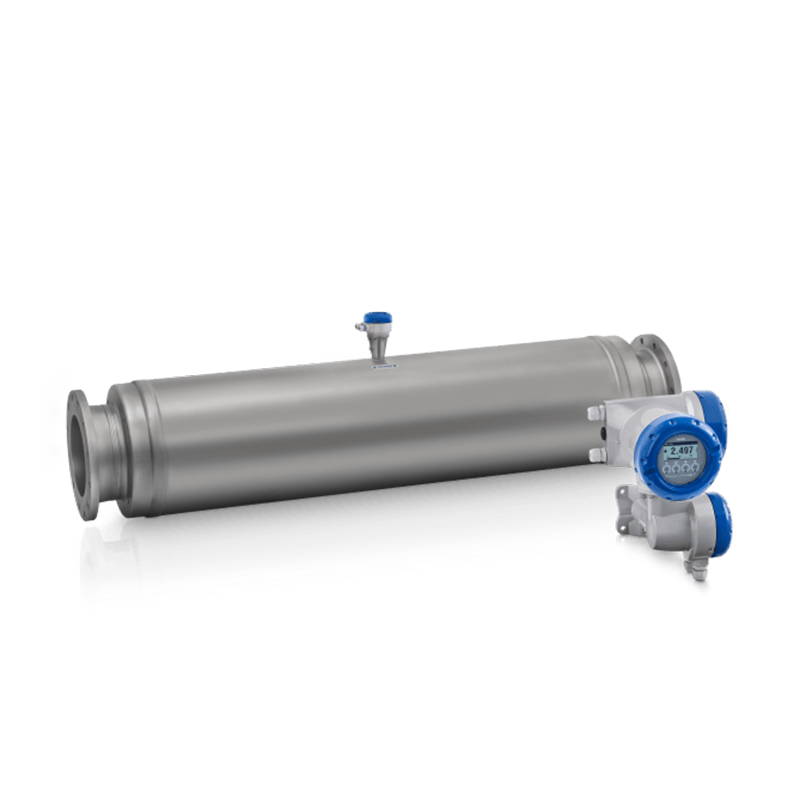

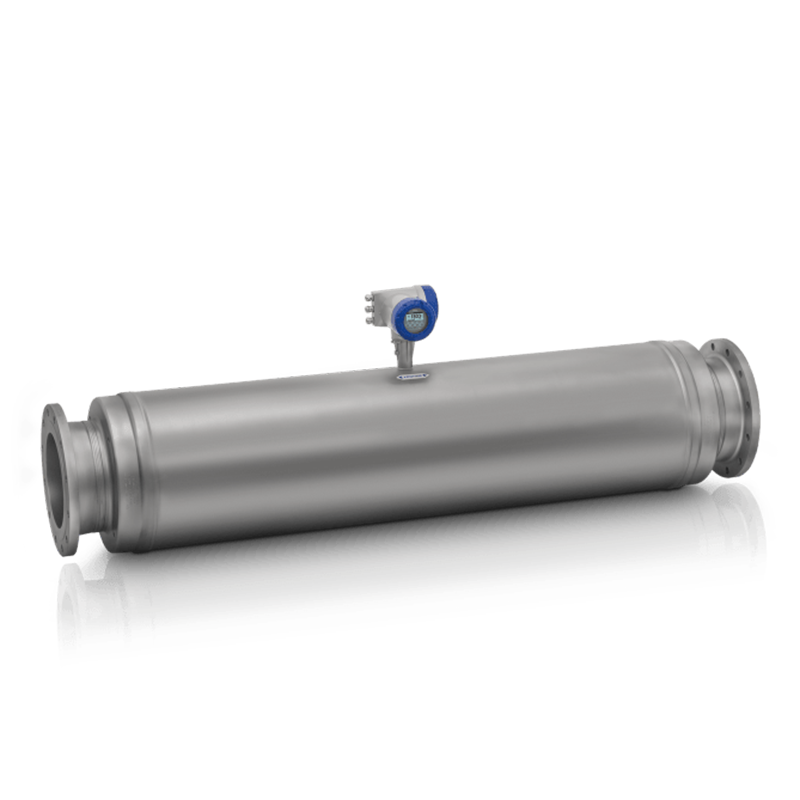

KROHNE OPTIMASS 2400 Coriolis mass flowmeter
KROHNE OPTIMASS 2400 Coriolis mass flowmeter for highest capacity bulk measurement
Description
KROHNE OPTIMASS 2400 Coriolis mass flowmeter for highest capacity bulk measurement
Specifications
Depending on selected device configuration
General information
| Product type | Flowmeter |
| Product family name | OPTIMASS |
| Product positioning | For bulk and custody transfer (CT) measurement of gases and liquids |
| Measurement principle | Coriolis |
| Measured media | Liquids, Gases |
Operating conditions
| Process pressure | max. 180 barg/ 2600 psig |
| Process temperature | -45…+130°C/ -49…+266°F |
Materials
| Measuring tube | Super Duplex stainless steel (1.4501/Alloy100), Duplex stainless steel (1.4462/318) |
Process connections
| Flange connections | EN (1092-1): DN100…400 ASME (B 16.5): 4…16″ JIS (B 2220): 100A |
| Hygienic connections | Clamp (DIN 32676): DN100; Clamp (ISO 2852): 101.6 Tri-Clamp: 4″ Threaded ferrule (DIN 11851): DN100 Flange with groove (DIN 11864-2A): DN100 Threaded ferrule (SMS 1146): 101.6 mm IDF/ISS: 4 |
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI, FM, CSA, UKEX |
| Certificates/Approvals Hygienic | FDA, EC 1935/2004 |
| Certificates/Approvals Marine | ABS, BV, CCS, DNV, KR, LR, NK, RINA, CRS, IRS, PRS, RS |
| Certificates/Approvals Others | NACE |
Communication
| Analogue outputs | 4…20 mA |
| Discrete outputs | Limit switches, Pulse, Frequency, Status |
| Digital outputs | FOUNDATION™ fieldbus, HART®, Profibus-PA, Profibus-DP, EtherNet/IP™, PROFINET, Bluetooth |
