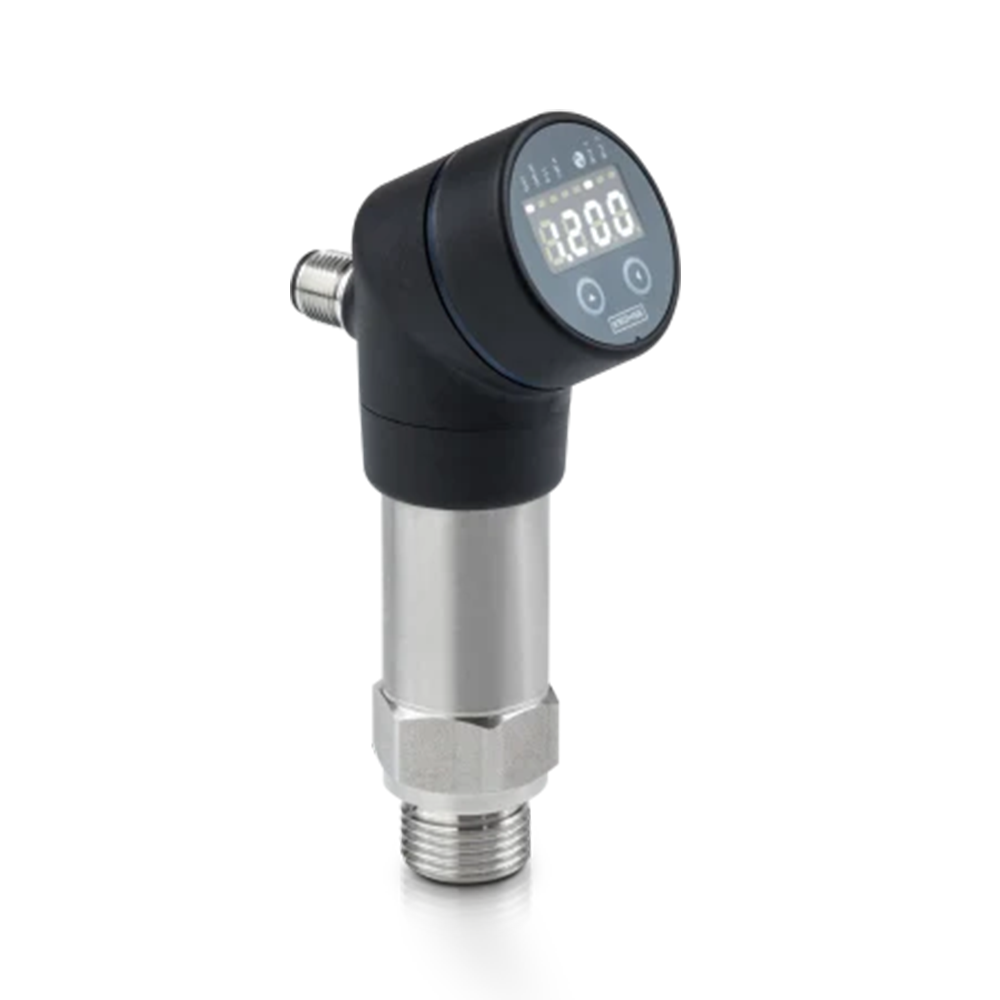

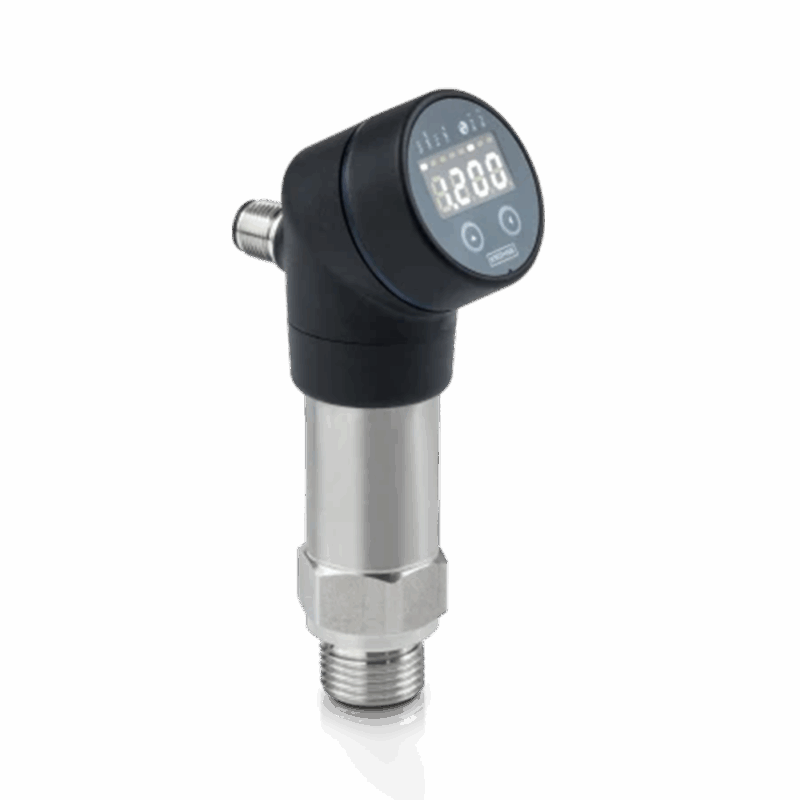

KROHNE Pressure switch for basic pressure and level applications
The OPTIBAR PSM 1010 is an electronic pressure switch for absolute or gauge pressure measurement of liquids and gases. The cost-effective pressure switch is suitable for simple process pressure applications (e.g. monitoring of pumps, compressors or other machinery) as well as hydrostatic level measurement in open vessels where space-saving installation is required. Due to its fully welded measuring cell with stainless steel diaphragm, the OPTIBAR PSM 1010 is corrosion-resistant to many aggressive media. Due to its advanced digital compensation, the OPTIBAR PSM 1010 offers excellent temperature stability.
Specifications
Depending on selected device configuration
General information
| Product type | Pressure transmitter |
| Product family name | OPTIBAR |
| Product positioning | For basic pressure and level applications |
| Measurement principle | Hydrostatic |
| Measured media | Liquids, Gases |
| Ambient temperature | -40…+85°C/ -40…+185°F |
| Measuring point | Open tank |
Operating conditions
| Process pressure | max. 600 bar/ 8700 psi |
| Process temperature | -40…+100°C/ -40…+212°F |
Materials
| Diaphragm | Austenitic stainless steel (1.4435/316L) |
| Fill fluid | Silicone oil |
| Measuring cell seal | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Perfluoroelastomer rubber (FFKM), Without (fully welded) |
Process connections
| Thread connections | Male: G¼, G½, (EN 837-1) G¼, G½ (DIN 3852) G½ (DIN 3852, 10 mm bore) ¼ NPT, ½ NPT |
Approvals/Standards
| Ingress protection | IP67 |
| Certificates/Approvals Others | Pressure Equipment Directive (PED) |
Communication
| Analogue outputs | 0…10 VDC, 4…20 mA |
| Discrete outputs | NPN/PNP |
| Digital outputs | IO-Link |
Overview
The OPTIBAR PSM 1010 is an electronic pressure switch for absolute or gauge pressure measurement of liquids and gases. The cost-effective pressure switch is suitable for simple process pressure applications (e.g. monitoring of pumps, compressors or other machinery) as well as hydrostatic level measurement in open vessels where space-saving installation is required. Due to its fully welded measuring cell with stainless steel diaphragm, the OPTIBAR PSM 1010 is corrosion-resistant to many aggressive media. Due to its advanced digital compensation, the OPTIBAR PSM 1010 offers excellent temperature stability.
Show more
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Electronic pressure switch with transmitter functionality and integrated display with switch state indication and 2-button setup
- Multi-rotatable display and adjustment module
- Standard IO: PNP/NPN and IO-Link; Secondary output: 4…20 mA, 0…10 V or PNP/NPN
- Corrosion resistance to many aggressive media due to fully welded pressure measuring cell with stainless steel diaphragm (1.4435 / 316L)
- Outstanding temperature stability due to its digital compensation
- Measuring accuracy ±0.35%
- Robust IP67 rated construction
- VDMA-conform display menu structure
