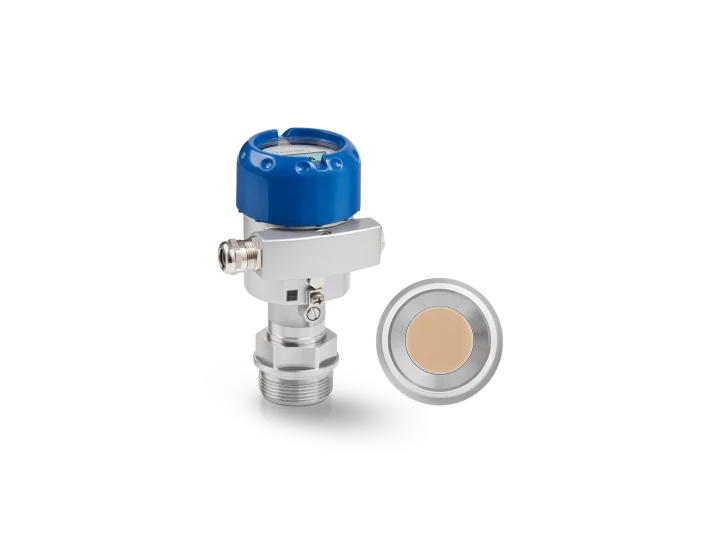

The OPTIBAR PC 5060 is a pressure transmitter for process pressure and hydrostatic level measurement in all kinds of process applications. It is designed for absolute and gauge pressure measurement in open tanks and – as dual version for electronic differential pressure measurement – also in closed vessels. The pressure device features a ceramic capacitive measuring cell that guarantees maximum overload and vacuum resistance for high plant availability.
Overview

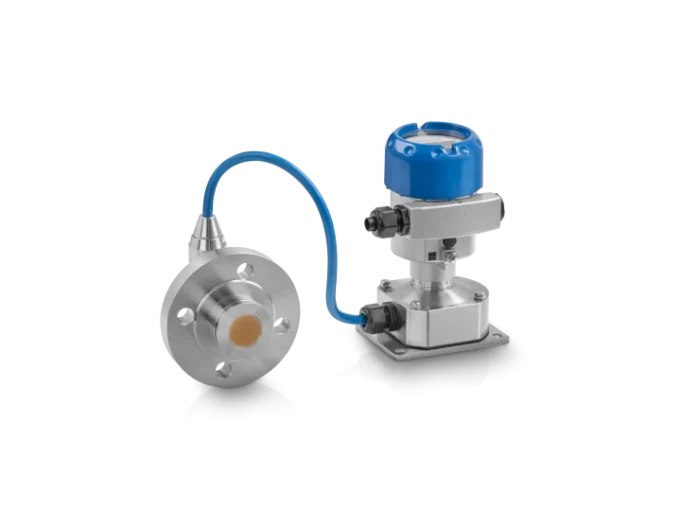

The OPTIBAR PC 5060 is a pressure transmitter for process pressure and hydrostatic level measurement in all kinds of process applications. It is designed for absolute and gauge pressure measurement in open tanks and – as dual version for electronic differential pressure measurement – also in closed vessels. The pressure device features a ceramic capacitive measuring cell that guarantees maximum overload and vacuum resistance for high plant availability.
Specifications
Depending on selected device configuration
General information
| Product type | Pressure transmitter |
| Product family name | OPTIBAR |
| Product positioning | For advanced pressure and level applications |
| Measurement principle | Hydrostatic |
| Measured media | Liquids, Gases, Steam |
| Measuring point | Open tank |
Operating conditions
| Process pressure | max. 100 bar/ 1450 psi |
| Process temperature | -40…+150°C/ -40…+302°F |
Materials
| Diaphragm | Ceramic (Al2O3) |
| Fill fluid | Dry measuring cell (without fill fluid) |
| Measuring cell seal | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Perfluoroelastomer rubber (FFKM) |
Process connections
| Flange connections | EN (1092-1): DN15…100 ASME (B 16.5): 1…4″ |
| Thread connections |
Male:
G½ (EN 837-1)
G½ (DIN 3852, 11 mm bore)
G½, G¾ front flush (DIN 3852)
G1 front flush (cone 40°, cone 33.4°)
Hygienic G1 for hygienic adapters
G2 (DIN 3852)
½ NPT (11 mm bore)
1 NPT front flush
1½ NPT, 2 NPT
M20 x 1.5 (EN 837-1)
Female:
G½, G¼ (DIN 3852)
½ NPT, ¼ NPT
|
| Hygienic adapters |
Clamp (DIN 32676): DN25, DN40, DN50
Clamp (ISO 2852): 25, 40, 51
Tri-Clamp: 1″, 1½”, 2″, 3″
Ferrule with collar (SMS 1147): 25 mm, 38 mm, 51 mm
Collar ferrule (DIN 11851): DN25, DN40, DN50
Ferrule with collar (DIN 11864-1A): DN40, DN50
Flange with collar (DIN 11864-2A): DN40, DN50
VARIVENT®: N, F
Hygienic fitting with compression nut: F40
NEUMO BioControl®: DN25, DN50, DN65, DN80
NEUMO BioConnect®: DN80
DRD and others
|
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | CCS, DNV, GL, NK |
| Certificates/Approvals Others | Oxygen, Pressure Equipment Directive (PED) |
| Certificates/Approvals Safety | SIL 2/3 |
Communication
| Analogue outputs | 4…20 mA |
| Digital outputs | FOUNDATION™ fieldbus, HART®, Profibus-PA |
Features & Options
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Modular design: converter platform for all applications
- Electronic differential pressure measurement
- Highest overload and vacuum resistance
- Wear-free measuring cell for less service and maintenance costs
- Extremely quick step response times <85 ms
- Various housing materials available: plastic, aluminium, stainless steel (precision casting or electro-polished)
- Quick setup for all applications
- Extensive diagnostic and parameterization functions on the display and adjustment module or the user-friendly and free DTMs
- Wireless device commissioning, verification and monitoring with the OPTICHECK Pressure Mobile app
- Ex ia, Ex d, Ex t approvals
- SIL 2/3 certified by TÜV Rheinland
OPTICHECK Pressure Mobile
Mobile app for pressure transmitters
- Works with all OPTIBAR PM 5060, OPTIBAR PC 5060 and OPTIBAR DP 7060 equipped with Bluetooth display and adjustment module
- Wireless device commissioning, verification and monitoring even in hard-to-reach areas
- Parameterisation similar to PACTware DTM including remote SIL mode activation
- Free download for iOS and Android
Download
