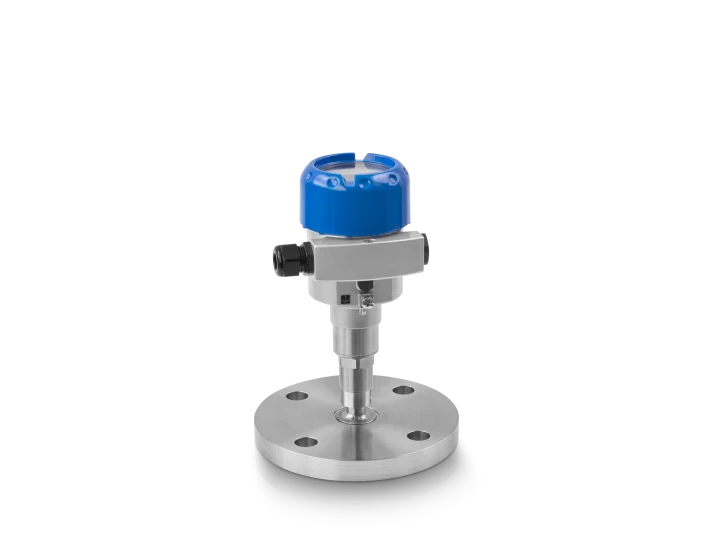

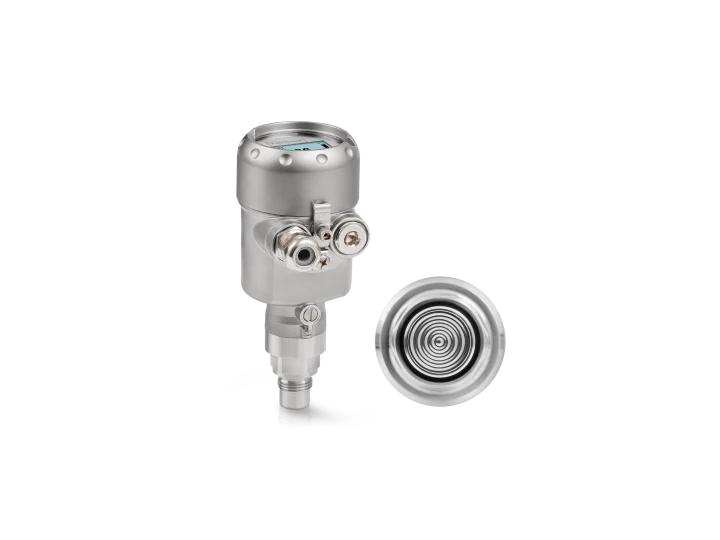

OPTIBAR PM 5060
Pressure transmitter for process pressure and level applications
·Rugged design with fully welded metallic diaphragm suited to high pressure ranges and hygienic requirements
·100 mbar…1000 bar / 1.45…14500 psi
·Various threads, flanges, aseptic and other connections
·2-wire 4…20 mA/HART®, FF, Profibus-PA, Bluetooth®
Specifications
Depending on selected device configuration
General information
| Product type | Pressure transmitter |
| Product family name | OPTIBAR |
| Product positioning | For all hygienic and non-hygienic process pressure and level applications |
| Measurement principle | Hydrostatic |
| Measured media | Liquids, Gases, Steam |
| Measuring point | Open tank |
Operating conditions
| Process pressure | max. 1000 bar/ 14500 psi |
| Process temperature | -40…+150°C/ -40…+302°F With optional diaphragm seals up to +400°C / +752°F |
Materials
| Diaphragm | Austenitic stainless steel (1.4404/316L), Nickel-chrome-molybdenum-tungsten alloy (2.4819/Alloy C276), Cobalt-Chromium-Nickel-Molybdenum alloy (2.4711 / Alloy 1058) |
| Fill fluid | Silicone oil, Halocarbon oil, Dry measuring cell (without fill fluid), Food grade oils (FDA listed), Medical grade white oil (FDA conform) |
| Measuring cell seal | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Perfluoroelastomer rubber (FFKM), Without (fully welded) |
Process connections
| Flange connections | EN (1092-1): DN32…100 ASME (B 16.5): 1…4″ |
| Thread connections |
Male:
G½ (EN 837-1)
G½, G1, G1½ (DIN 3852)
G½ front flush (DIN 3852)
G1 front flush (cone 40°, cone 33.4°)
Hygienic G1 for hygienic adapters
1 NPT front flush
¼ NPT, ½ NPT
M20 x 1.5 (EN 837-1)
Female:
½ NPT, ¼ NPT
|
| Hygienic adapters |
Clamp (DIN 32676): DN40, DN50
Clamp (ISO 2852): 40, 51
Tri-Clamp: 1½”, 2″
Collar ferrule (SMS 1147): 38 mm, 51 mm
Collar ferrule (DIN 11851): DN25, DN40, DN50
Collar ferrule (DIN 11864-1A): DN40, DN50
Flange with collar (DIN 11864-2A): DN40, DN50
Aseptic clamp union (DIN 11864-3A): DN40, DN50
VARIVENT®: N, F
Hygienic fitting with compression nut: F40
NEUMO BioControl®: DN50, DN65, DN80
|
Approvals/Standards
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | CCS, DNV, GL, NK |
| Certificates/Approvals Others | Pressure Equipment Directive (PED) |
| Certificates/Approvals Safety | SIL 2/3 |
Communication
| Analogue outputs | 4…20 mA |
| Digital outputs | FOUNDATION™ fieldbus, HART®, Profibus-PA |
Overview
The OPTIBAR PM 5060 is a pressure transmitter for process pressure and level measurement in hygienic and non-hygienic applications with gases, liquids and steam. It can be used in open tanks and – as dual version for electronic differential pressure measurement – also in closed vessels. The pressure device features a piezoresistive or a strain gauge metallic diaphragm. Depending on the measuring cell, the pressure transmitter can operate over a wide process pressure range from 100 mbar / 1.45 psi up to 1000 bar / 14500 psi.
