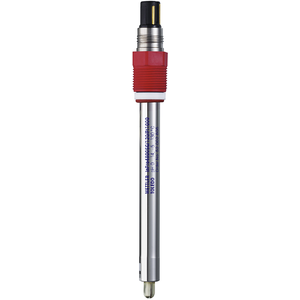

METTLER pH Sensor InPro4800/SG/225/PT1000
The InPro 4800 is a pH sensor designed for harsh environments. It offers a strong resistance to oxidizing media, solvents, and highly acidic or alkali solutions.
pH Measurement in Harsh Environments.
The InPro 4800 is a pH sensor designed for harsh environments. It offers a strong resistance to oxidizing media, solvents, and highly acidic or alkali solutions.
Performance in Harsh Conditions
This pH sensor is designed to perform accurately in demanding industrial environments, at high temperatures, and under high pressure.
Reduce Maintenance Costs
The PTFE annular junction, long diffusion path, and double electrolyte chamber combine to reduce cleaning and maintenance needs.
Resistant to Poisoning Substances
The advanced reference system of this pH sensor ensures stability and resistance to harsh processes containing aggressive or sticky agents.
| ISM (Digital) or Analog | Analog |
| PH Sensing Technology | Highly Alkali Resistant Glass Membrane for Tough Conditions (HA) |
| PH Range | 0 – 14 |
| Reference System | Gel electrolyte, PTFE annular diaphragm, pressure compensated double chamber Ag/AgCl system |
| Operating Temperature (Fahrenheit) | 23 °F – 176 °F |
| Operating Temperature (Celsius) | -5 °C – 80 °C |
| Cable Connector | VP |
| Process Connection | Pg 13.5 Thread |
| Sterilizable/Autoclavable | No |
| Sensor Length | 225 mm |
| Certificates & Approvals |
CE
METTLER TOLEDO Quality Certificate
FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6
ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb
PED
|
| Operating Pressure (Bar) |
0 to 12 barg @ 80°C
|
| Model Family |
InPro4800(i)
|
| Temperature Sensor |
PT 1000
|
| Measurement Parameter |
pH
ORP/Redox
|
| Shaft Material |
Glass
|
| Operating Pressure (PSI) |
0 to 174 psig @ 266 °F
|
| Solution Ground/Redox Metal | Platinum |
| Refillable Electrolyte |
No
|
| Hazardous Area Approvals |
Yes
|
| Primary Media/Application |
Chemical Processes
|
| Hygienic/Biocompatibility |
No
|
