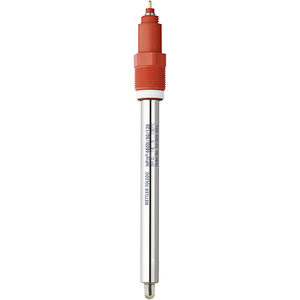

METTLER pH Sensor InPro4802i/SG/120
The InPro 4802i is a digital pH sensor designed for harsh environments and hydrofluoric acid resistance. It works well in oxidizing media, solvents and highly acidic or alkali solutions. This sensor provides predictive sensor-health diagnostics.
pH Measurement in Harsh Environments.
The InPro 4802i is a digital pH sensor designed for harsh environments and hydrofluoric acid resistance. It works well in oxidizing media, solvents and highly acidic or alkali solutions. This sensor provides predictive sensor-health diagnostics.
Performance in Harsh Conditions
This pH sensor is designed to perform accurately in demanding industrial environments, in the presence of hydrofluoric acid, and under high pressure.
Reduce Maintenance Costs
The PTFE annular junction, long diffusion path, and double electrolyte chamber combine to reduce cleaning and maintenance needs.
Advanced Predictive Diagnostics
This pH sensor has Intelligent Sensor Management (ISM) technology, offering predictive diagnostics to reduce maintenance and simplify calibration.
| ISM (Digital) or Analog | ISM (Digital) |
| PH Sensing Technology | Hydrofluoric Acid Resistant Glass Membrane (HF) |
| PH Range | 1 – 11 |
| Reference System | Gel electrolyte, PTFE annular diaphragm, pressure compensated double chamber Ag/AgCl system |
| Operating Temperature (Fahrenheit) | 23 °F – 176 °F |
| Operating Temperature (Celsius) | 0 °C – 80 °C |
| Cable Connector | K8S |
| Process Connection | Pg 13.5 Thread |
| Sterilizable/Autoclavable | No |
| Sensor Length | 120 mm |
| Certificates & Approvals |
CE
METTLER TOLEDO Quality Certificate
FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6
ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb
PED
|
| Operating Pressure (Bar) |
0 to 12 barg @ 80°C
|
| Model Family |
InPro4800(i)
|
| Temperature Sensor |
Digital
|
| Measurement Parameter |
pH
ORP/Redox
|
| Shaft Material |
Glass
|
| Operating Pressure (PSI) |
0 to 174 psig @ 176°F
|
| Solution Ground/Redox Metal | Platinum |
| Refillable Electrolyte |
No
|
| Hazardous Area Approvals |
Yes
|
| Primary Media/Application |
Chemical Processes
|
| Hygienic/Biocompatibility |
No
|
