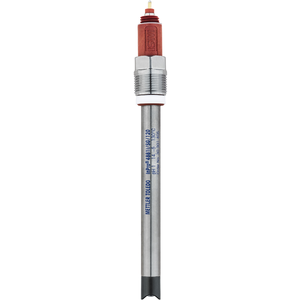

METTLER pH Sensor InPro4881i/SG/425
The InPro 4881i is a digital pH sensor designed for harsh environments and low temperatures. It can withstand challenging chemical processes and is protected with a titanium shaft. This sensor provides predictive sensor-health diagnostics.
Titanium Shaft pH Sensor.
The InPro 4881i is a digital pH sensor designed for harsh environments and low temperatures. It can withstand challenging chemical processes and is protected with a titanium shaft. This sensor provides predictive sensor-health diagnostics.
Performance in Harsh Conditions
This pH sensor is designed to perform accurately in demanding industrial environments, at low and high temperatures and under high pressure.
Reduce Maintenance Costs
The PTFE annular junction, long diffusion path, and double electrolyte chamber combine to reduce cleaning and maintenance needs.
Advanced Predictive Diagnostics
This pH sensor has Intelligent Sensor Management (ISM) technology, offering predictive diagnostics to reduce maintenance and simplify calibration.
| ISM (Digital) or Analog | ISM (Digital) |
| PH Sensing Technology | Glass Membrane Suitable For Low Temperatures (LoT) |
| PH Range | 1 – 14 |
| Reference System | Gel electrolyte, PTFE annular diaphragm, pressure compensated double chamber Ag/AgCl system |
| Operating Temperature (Fahrenheit) | 23 °F – 176 °F |
| Operating Temperature (Celsius) | -5 °C – 80 °C |
| Cable Connector | K8S |
| Process Connection | Pg 13.5 Thread |
| Sterilizable/Autoclavable | No |
| Sensor Length | 425 mm |
| Certificates & Approvals |
CE
METTLER TOLEDO Quality Certificate
FM: IS Cl. I, II, III, Div 1, GR ABCDEFG/T6
ATEX/IECEx: Ex ia IIC T6/T5/T4/T3 Ga/Gb
PED
|
| Operating Pressure (Bar) |
0 to 12 barg @ 80°C
|
| Model Family |
InPro4800(i)
|
| Temperature Sensor |
PT 1000
|
| Measurement Parameter |
pH
ORP/Redox
|
| Shaft Material |
Glass
|
| Operating Pressure (PSI) |
0 to 174 psig @ 176°F
|
| Solution Ground/Redox Metal | Platinum |
| Refillable Electrolyte |
No
|
| Hazardous Area Approvals |
Yes
|
| Primary Media/Application |
Chemical Processes
|
| Hygienic/Biocompatibility |
No
|
Download
