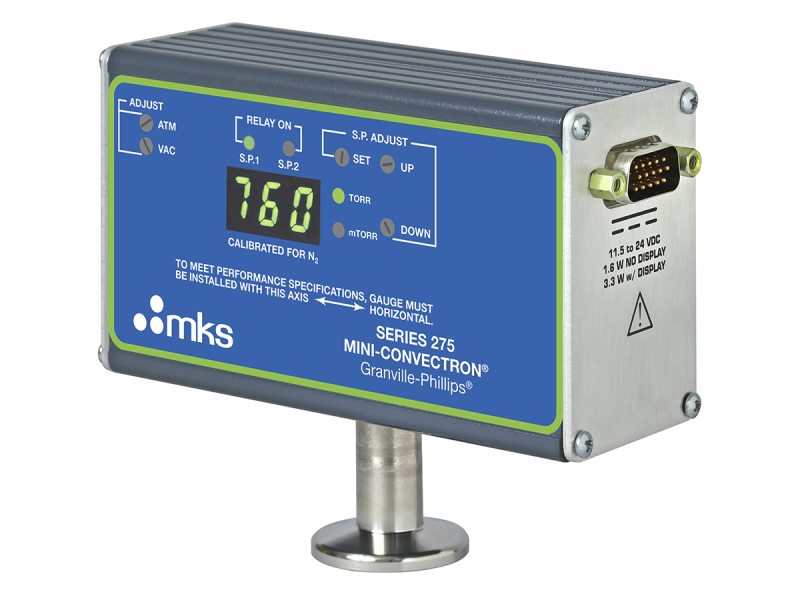

MKS 275 Mini-Convectron® Vacuum Pressure Transducers
Measurement Range(Air, N2):
1×10-4 to 1000 Torr
1×10-4 to 1300 mbar
1×10-2 Pa to 130 kPa
Description
Specifications
| Digital Communication | RS485 or DeviceNet™ |
| Sensor |
Gold-plated tungsten or Platinum
|
| Display | 3-digit green LED, automatic ranging (optional) |
| Installation Orientation | Horizontal preferred |
| Measurement Range(Air, N2) | 1×10-4 to 1000 Torr 1×10-4 to 1300 mbar 1×10-2 Pa to 130 kPa |
| Operating Temperature | 0-40°C (32-104°F) |
| Maximum Bakeout Temperature | 150°C maximum, non-operating, with electronics removed |
| Analog Output | 0.375-5.659 VDC for 0 to 1000 Torr of N2, non-linear |
| Internal Volume | 40 cc |
| Electronic Casing and Flange |
Aluminum extrusion
|
| Weight |
340 gm (12oz) with 1/8 NPT fitting
|
| Compliance |
CE
|
