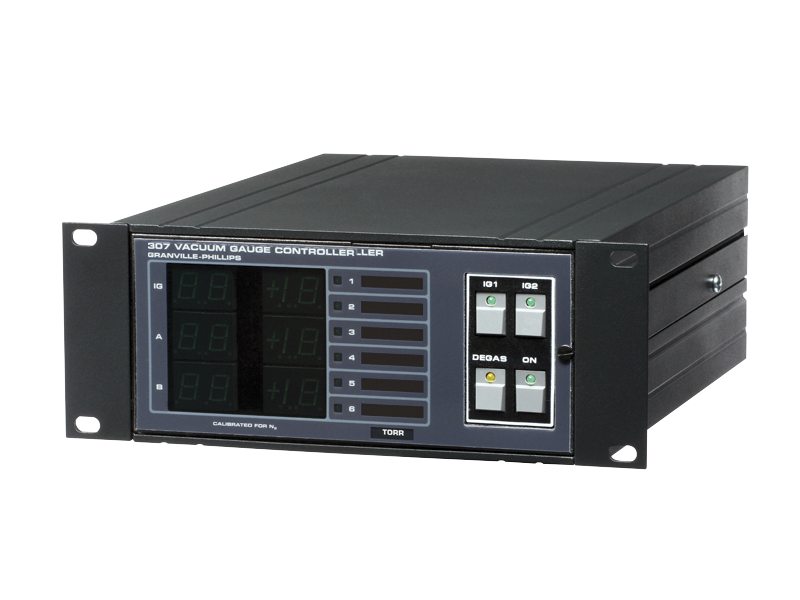

MKS 307 Bayard-Alpert Vacuum Gauge Controller
Bayard-Alpert Gauge Controller
1 x 10-10 Torr with 10 mA emission and tube sensitivity of 10/Torr
Description
Specifications
| Type | Bayard-Alpert Gauge Controller |
| Lower Measurement Limit | 1 x 10-10 Torr with 10 mA emission and tube sensitivity of 10/Torr |
| Upper Measurement Limit | 0.1 Torr with 0.1 mA emission and tube sensitivity of 10/Torr |
| Pressure Range | 7 decades within above limits for given emission setting and tube sensitivity |
| Display | Digital (green LED) |
| Display Update Rate | 0.5 second typical |
| Units | Torr, mbar, Pascal (user-selectable) |
| Power Requirements | 100/115/230 ±10% VAC (user-specified), 250 watts, 50 or 60 Hz |
| Communication Protocol | Optional: RS-232 or RS-485 (serial) |
| Analog Output | Logarithmic: 1 V per decade, 0-10 VDC |
| Emission Current |
Controlled, adjustable from 0.01 to 10.0 mA |
| Degas |
Electron Bombardment: 10-40 watts adjustable
I2R: 8 V nominal, (fixed) 80 W maximum
|
| Operating Temperature |
40°C maximum
|
