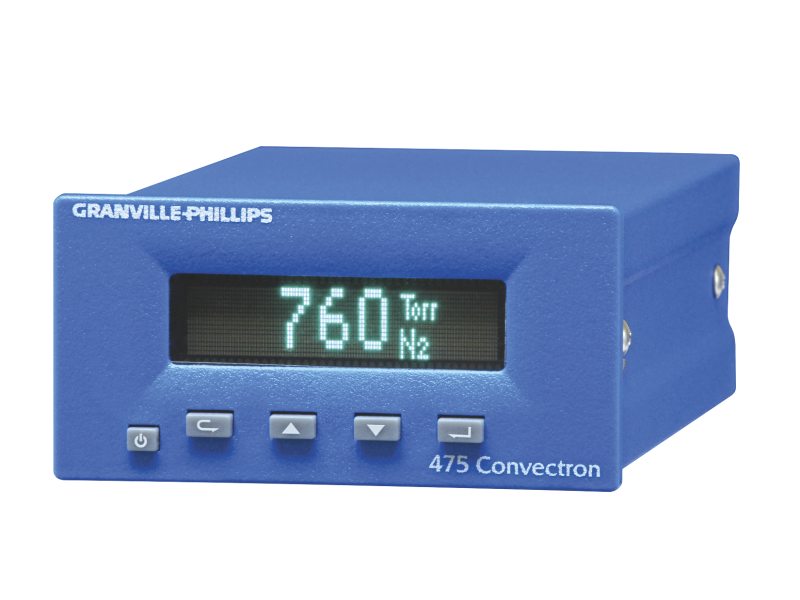

MKS 475 Convectron® Vacuum Gauge Controller
Measurement Range
1×10-4 Torr to Atmosphere
1×10-4 mbar to Atmosphere
1×10-2 Pa to Atmosphere
Description
Specifications
| Type | Convectron® Gauge Controller |
| Measurement Range(N2) |
1×10-4 Torr to Atmosphere
1×10-4 mbar to Atmosphere
1×10-2 Pa to Atmosphere
|
| Step Size at Minimum Pressure | 1 x 10-4 Torr, 1 x 10-4 mbar, 1 x 10-2 Pa |
| Display | Vacuum Fluorescent |
| Display Update Rate | Every 0.5 sec |
| Units | mBar, Pascal, or Torr (optional) |
| Compatible with | Series 275 Convectron® Vacuum Gauges |
| Power Requirements | 12 to 24 VDC, 6 W continuous |
| Communication Protocol | RS232 or RS485 (optional) |
| Relays | 0 or 2 (optional) |
| Set Point Configuration | Two single pole, double-throw (optional) |
| Set Point Range |
1 x 10-3 to 1000 Torr
1 x 10-3 to 1333 mbar
1 x 10-1 Pa to 133 kPa
|
| Set Point Resolution |
2 significant digits
|
| Operating Temperature |
0° to 40°C
|
| Storage Temperature |
-40°C to 70°C
|
| Weight |
720 gm (25 oz)
|
| Compliance |
CE
|
