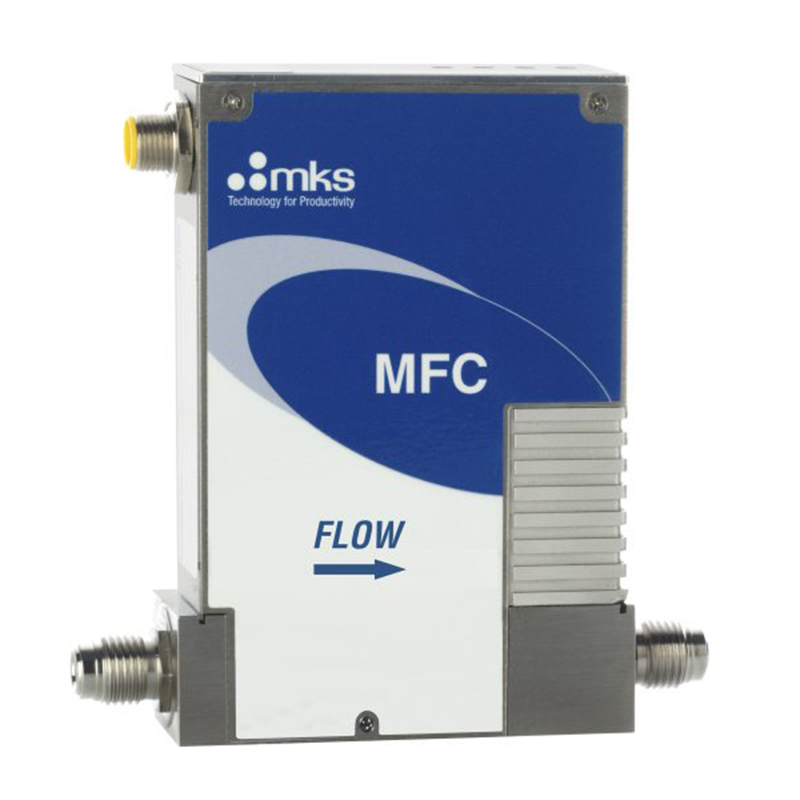

MKS P-Series High Performance Mass Flow Controllers P4B High Performance 5-50,000 sccm Mass Flow Controllers
The P4B mass flow controller is an advanced solution that addresses the critical requirements of gas flow control, including accuracy and response speed, while minimizing the need for extensive inventory of controllers. It is designed to provide precise control and versatility in handling multiple gases and flow ranges.
High Performance Multi-gas, Multi-range 5 to 50,000 sccm Mass Flow Controllers
The P4B mass flow controller is an advanced solution that addresses the critical requirements of gas flow control, including accuracy and response speed, while minimizing the need for extensive inventory of controllers. It is designed to provide precise control and versatility in handling multiple gases and flow ranges.
Key Features of the P4B Mass Flow Controller:
- Flow rates ranging from 5 to 50,000 sccm
- Multi-gas/multi-range capabilities with 1% accuracy of the set point
- Analog input/output: 0 to 5 VDC
- Optional MFM (Mass Flow Meter) functionality
The P4B MFC incorporates stored gas parameters in its memory, enabling efficient multi-gas/multi-range operation. It achieves 1% accuracy for the user-selected gas, ensuring precise flow control. The Full Scale ranges supported by the P4B MFC range from 5 sccm to 50 slm, providing flexibility in various applications.
Additionally, the P4B MFC offers analog input/output capabilities, allowing for easy integration into existing systems. It also provides the option for MFM functionality, enhancing flow measurement capabilities in addition to control.
Overall, the P4B MFC is designed to deliver accurate and responsive gas flow control while optimizing inventory requirements and offering flexibility for a wide range of flow rates and gases.
