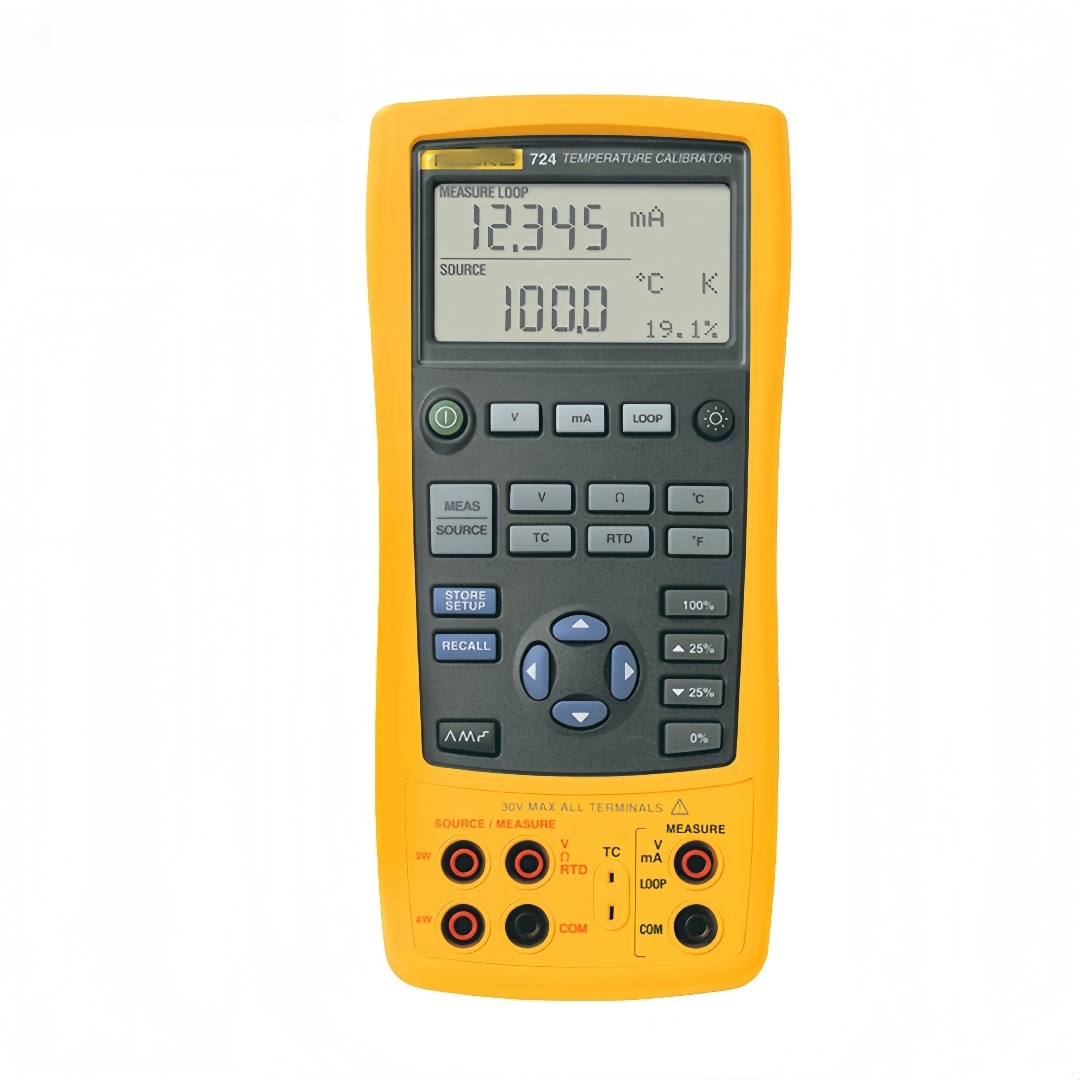

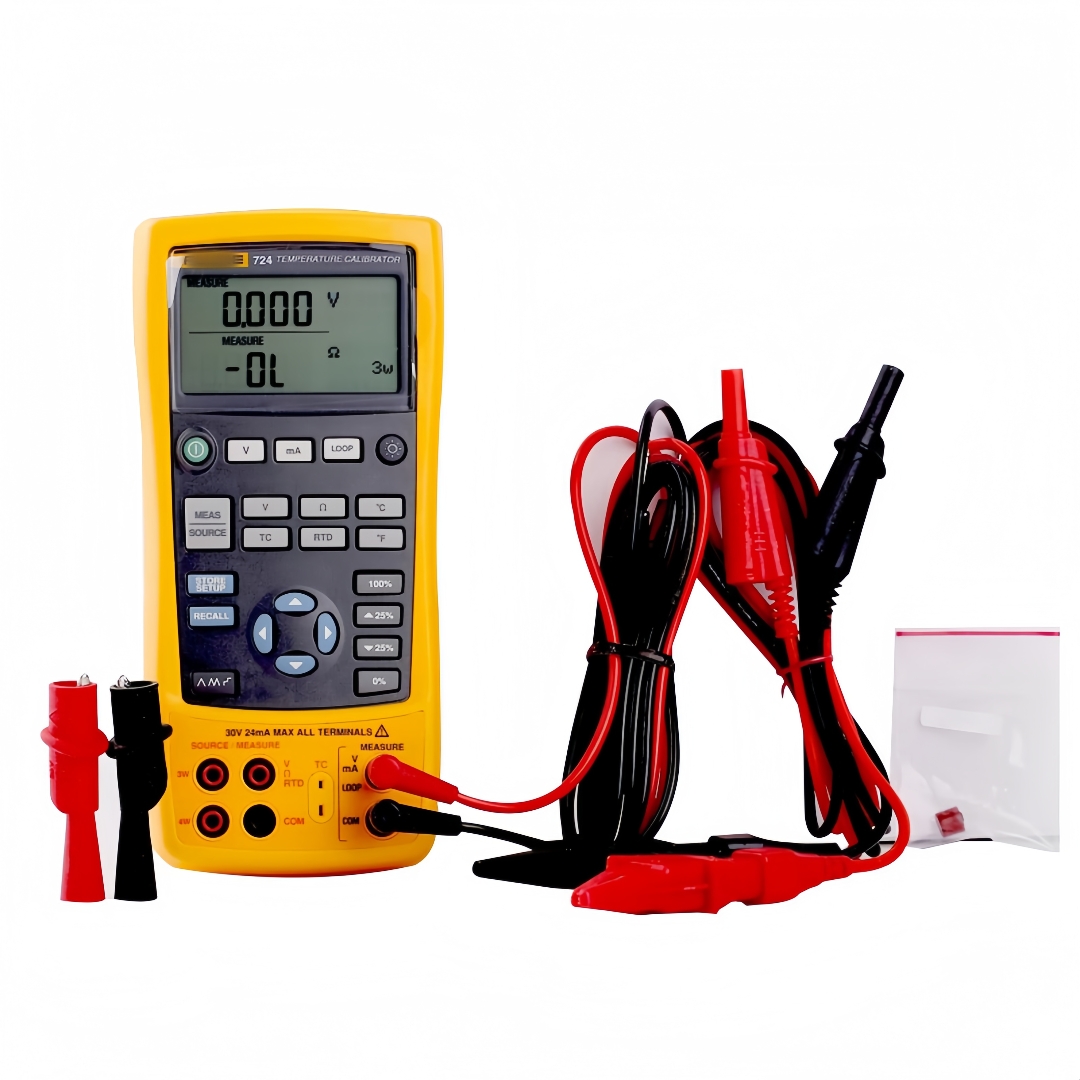

Multifunction Process Calibrator Fluke 724
The Fluke 724 is a master-level temperature calibration solution. The Fluke 724 can measure and output 10 types of thermocouples and 7 types of platinum resistance (RTD) sensors, as well as voltage and resistance signals.
Description
The Fluke 724 is a master-level temperature calibration solution. The Fluke 724 can measure and output 10 types of thermocouples and 7 types of platinum resistance (RTD) sensors, as well as voltage and resistance signals.
•The brand-new 724 temperature calibrator is a powerful and user-friendly on-site calibrator. With its measurement and output functions, it can be used to test and calibrate almost all temperature instruments.
• With dual display screens, you can view both input and output signals simultaneously • Measure RTD, thermocouples, ohms and voltages, test sensors and transmitters
• Output/Analog thermal resistors, thermocouples, voltages, resistances to calibrate transmitters
• Perform rapid linear tests in 25% and 100% increments
• Achieve remote testing through automatic stepping and automatic ramp functions
• Provide loop power to the transmitter while measuring mA
• Compact and streamlined design, easy to carry and hold
• Robust and reliable, suitable for on-site use
| Measurement accuracy | ||
| Direct current voltage | 30.000 V | 0.02%+ 2 characters (upper part of the display screen) |
| 20.000 V | 0.02% + 2 characters (at the bottom of the display screen) | |
| 100.00 mV | 0.02%+2 characters | |
| 10.00 mVto 75.00 mV0.025%+ 1 character(using, thermocouple compensation connector) | ||
| Direct current | 24.000 mA | 0.02% + 2 characters |
| Resistor | 0.0 to 400.0 Ω | 0.1Ω (4-wire); 0.15Ω (2-wire and 3-wire) |
| 401 to 1500 ohms | 0.5Ω (4-wire); 1Ω (2-wire and 3-wire) | |
| 1500 to 3200 ohms | 1Ω (4-wire); 1.5Ω (2-wire and 3-wire) | |
| Output accuracy | ||
| Direct current voltage | 100.00 mV | 0.02%+2 characters |
| 10.000 V | 0.02% +2 characters | |
| .10.00 mV to75.00 mV0.025%+ 1 character (using thermocouple compensation connector) | ||
| Resistor | 15.0 to 400.0 Ω |
0.15Ω(Excitation current: 0.15 to 0.5 mA)
0.1Ω(Excitation current: 0.5 to 2 mA)
|
| 401 to 1500 ohms |
0.5Ω (Excitation current: 0.05 to 0.8 mA)
|
|
| 1500 to 3200 ohms |
1Ω(Excitation current: 0.05 to 0.4 mA)
|
|
| Technicalindicators | ||
| Harmonic signal | Output Function: |
Voltage; Curent, Resistance, Frequency, Temperature
|
| Sloping wave: |
Slow shearwave, Fast shearwwave, 259b stepwise shearwave
|
|
| Loop power supply | Voltage: |
24V
|
| Accuracy: |
10%
|
|
| Maximum current: |
22 mA; Short-circuit protection
|
|
| Step signal | Output Function: |
Voltage: Curent, Resistance, Frequency, Temperature
|
| Step length: |
25% and 100% of the range
|
|
| Mechanicaland generalparameters | ||
| Size | 96x200X47 mm |
|
| Weight | 650g |
|
| Battery | Four AA type alkaline batteries |
|
| Warranty period | 3 years |
|
| Battery life | 25 hours, typical value |
|
