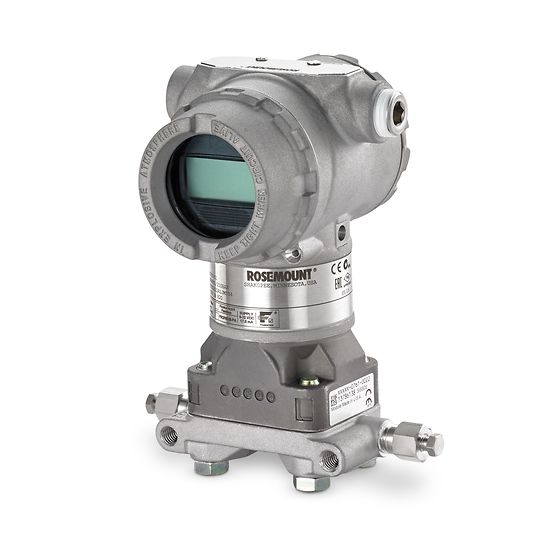

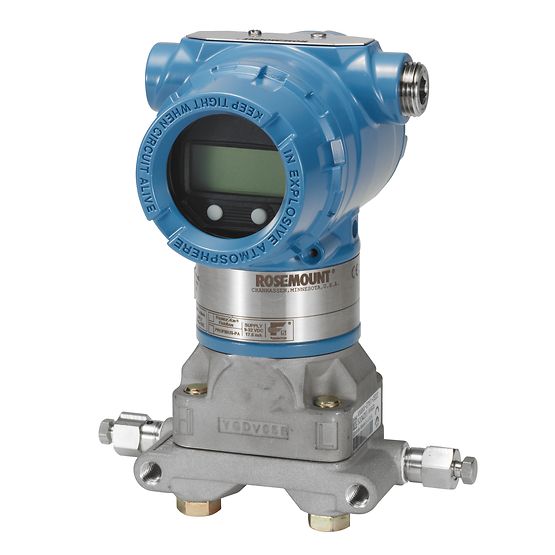

Rosemoun 3051 Coplanar Pressure Transmitter
The Rosemount 3051, a trusted industry solution, features patented Coplanar technology for direct mounting in various measurement applications. With 10-year stability and a rangedown ratio of 150:1, it delivers reliable measurements and offers flexibility for a wide range of applications. It comes with a back-lit display for easy viewing, Bluetooth® connectivity for seamless connection, and enhanced software capabilities that allow for faster access to the necessary data.
The Rosemount 3051, a trusted industry solution, features patented Coplanar technology for direct mounting in various measurement applications. With 10-year stability and a rangedown ratio of 150:1, it delivers reliable measurements and offers flexibility for a wide range of applications. It comes with a back-lit display for easy viewing, Bluetooth® connectivity for seamless connection, and enhanced software capabilities that allow for faster access to the necessary data.
Specifications
| Warranty |
Up to 5-year limited warranty
|
| Rangedown |
Up to 150:1
|
| Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
| Measurement Range |
Up to 2000 psi (137,89 bar) differentia
Up to 2000 psig (137,89 bar) gage
Up to 4000 psia (275,79 bar) absolute
|
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400 |
| Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications |
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |
