Rosemount 3051 Coplanar Pressure Transmitter and 304 Manifold
Introducing the Rosemount 3051 Coplanar Pressure Transmitter and 304 Manifold, a renowned industry solution designed with patented coplanar technology. This innovative transmitter allows for direct mounting in various measurement applications, ensuring reliable and accurate measurements. With its flexibility and compatibility across a wide range of applications, it is a trusted choice for many industry professionals.
Introducing the Rosemount 3051 Coplanar Pressure Transmitter and 304 Manifold, a renowned industry solution designed with patented coplanar technology. This innovative transmitter allows for direct mounting in various measurement applications, ensuring reliable and accurate measurements. With its flexibility and compatibility across a wide range of applications, it is a trusted choice for many industry professionals.

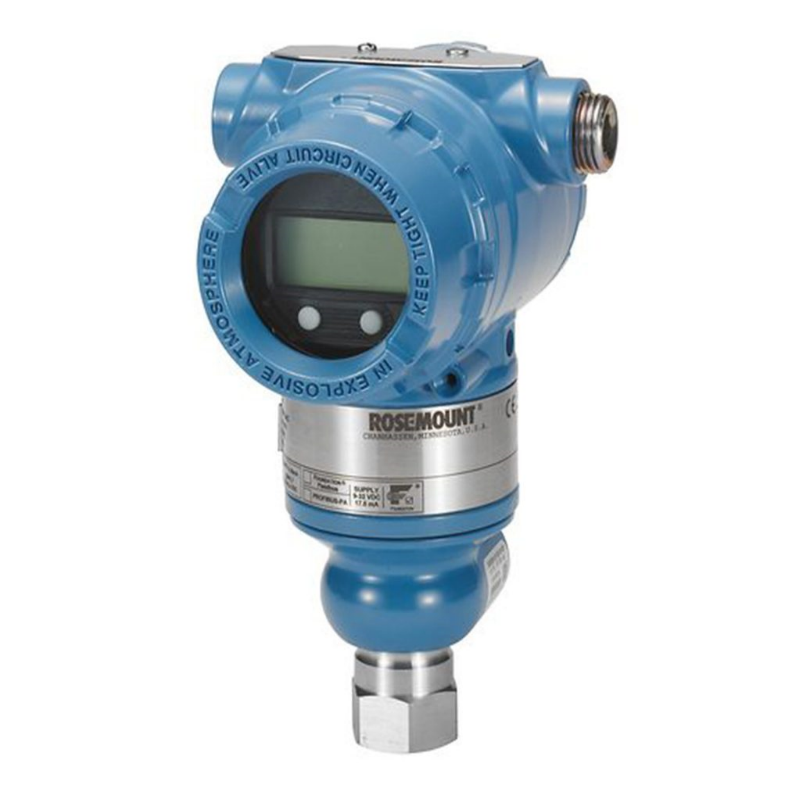

Rosemount™ 3051 Coplanar™ Pressure Transmitter
Specifications
| Warranty |
Up to 5-year limited warranty
|
| Rangedown |
Up to 150:1
|
| Communication Protocol | 4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART® |
| Measurement Range | Up to 2000 psi (137,89 bar) differential Up to 2000 psig (137,89 bar) gage Up to 4000 psia (275,79 bar) absolute |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400 |
| Diagnostics | Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications |
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Internal antenna (225 m) |

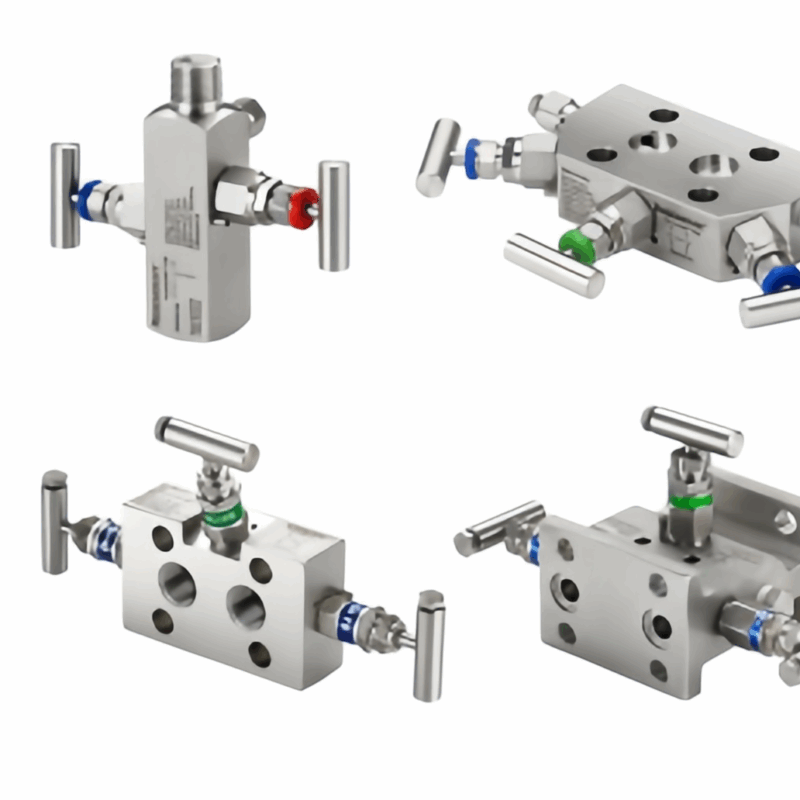

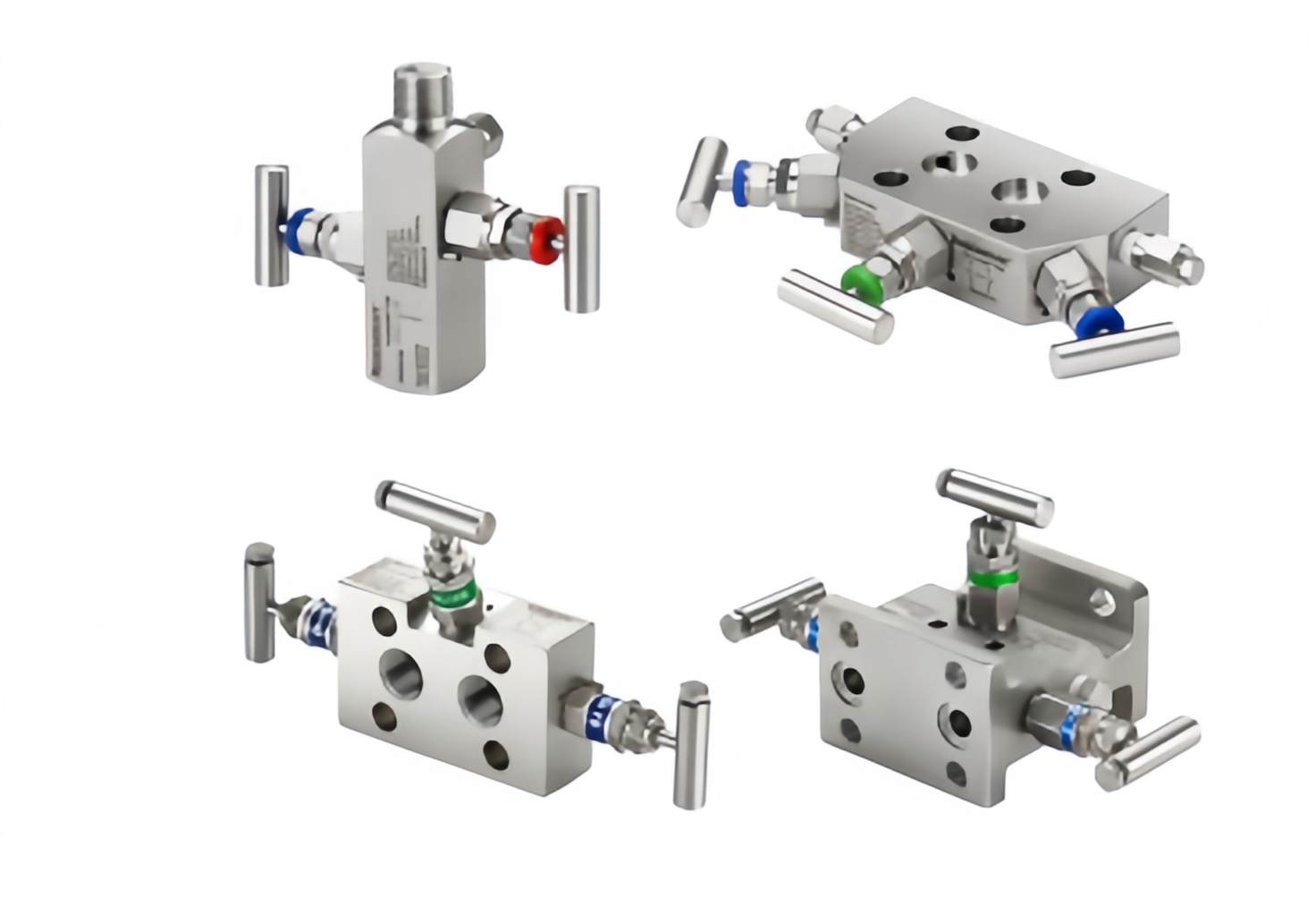

Rosemount™ 304 Conventional Manifold
Specifications
| Maximum Operating Temperature |
1000°F (538°C)
|
| Manifold Material |
316 SST/316L SST, Carbon Steel
|
| Packing Material | PTFE, Graphite-based |
| Process Connections | 1/2″-14 female NPT, IEC 61518 |
| Process Connection Orientation | Parallel transmitter, 90° transmitter |
| Certifications | Cleaning for special services, sour gas (meets NACE MR 0175/ISO 15156, MR0103), see full specs for complete list of certifications |
| Warranty | Up to 5-year limited warranty |
| Features |
Assembles to transmitter flange in accordance with IEC 61518
Traditional (Flange x Flange and Flange x NPT) and wafer manifold styles meet a wide range of applications
2-,3- and 5-valve configuration for assembly to multi-variable, absolute, gage and differential pressure transmitters
Manifold can be factory-assembled to a transmitter, leak-tested and calibrated for quick installation
5-valve natural gas configuration available for extra protection from leaking to ensure DP signal integrity
|
Download
Related products
Rosemount 3051S High Static DP Transmitter

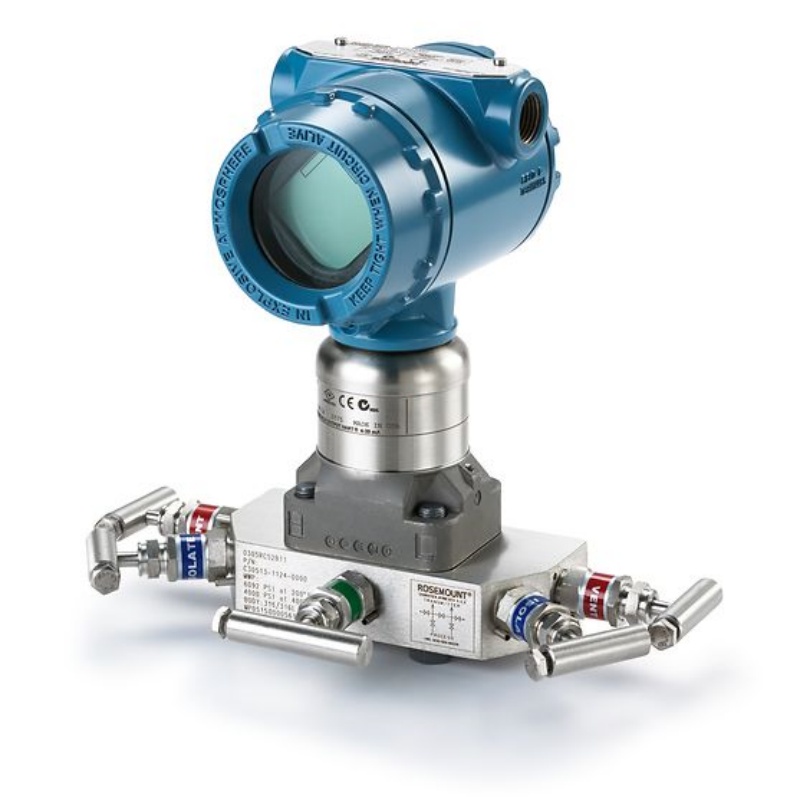

Rosemount 3051S Differential Pressure Flow Transmitter
