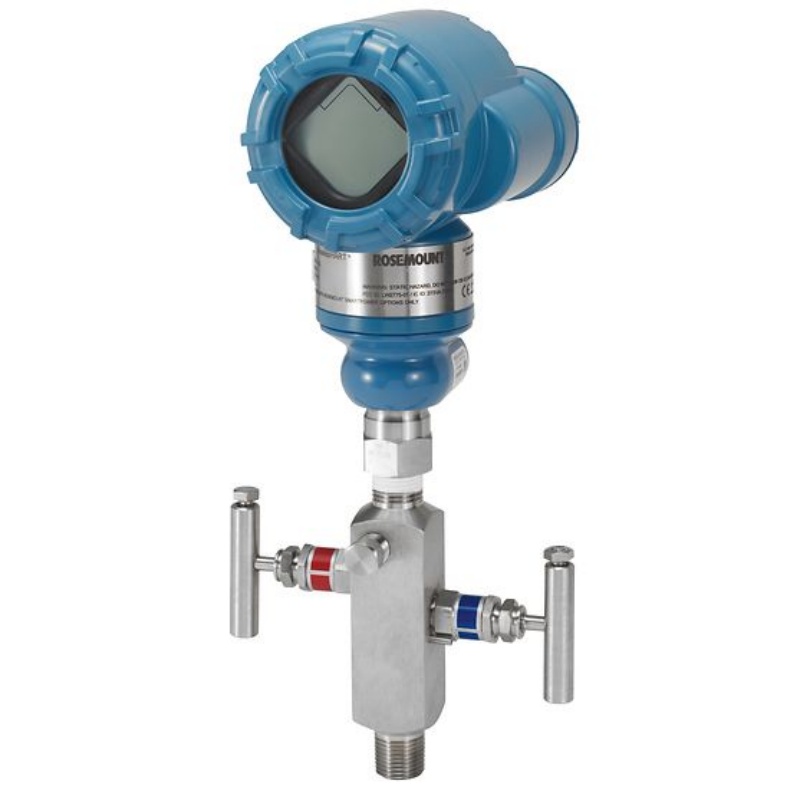

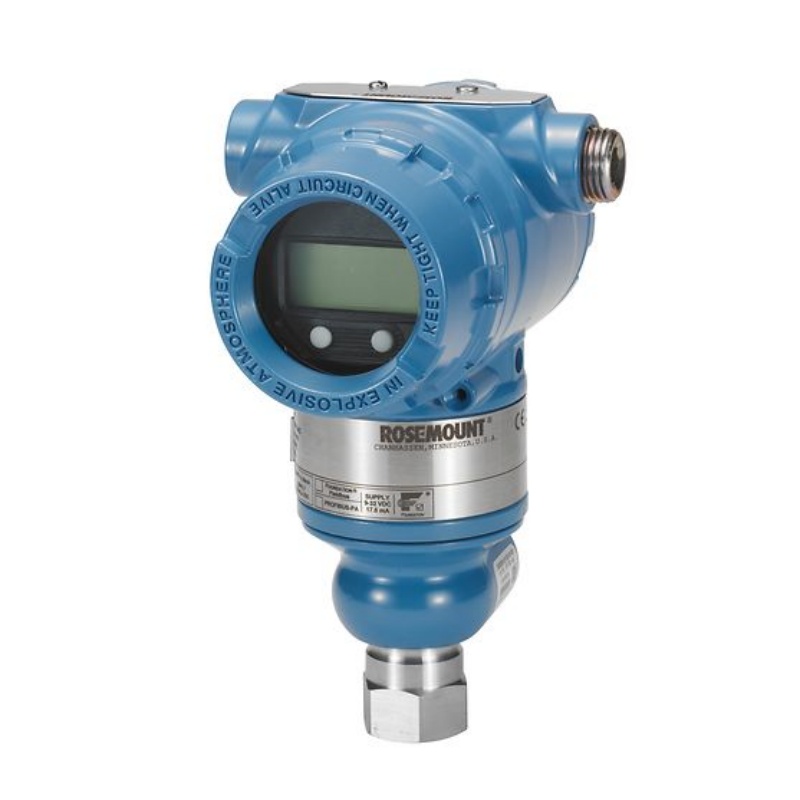

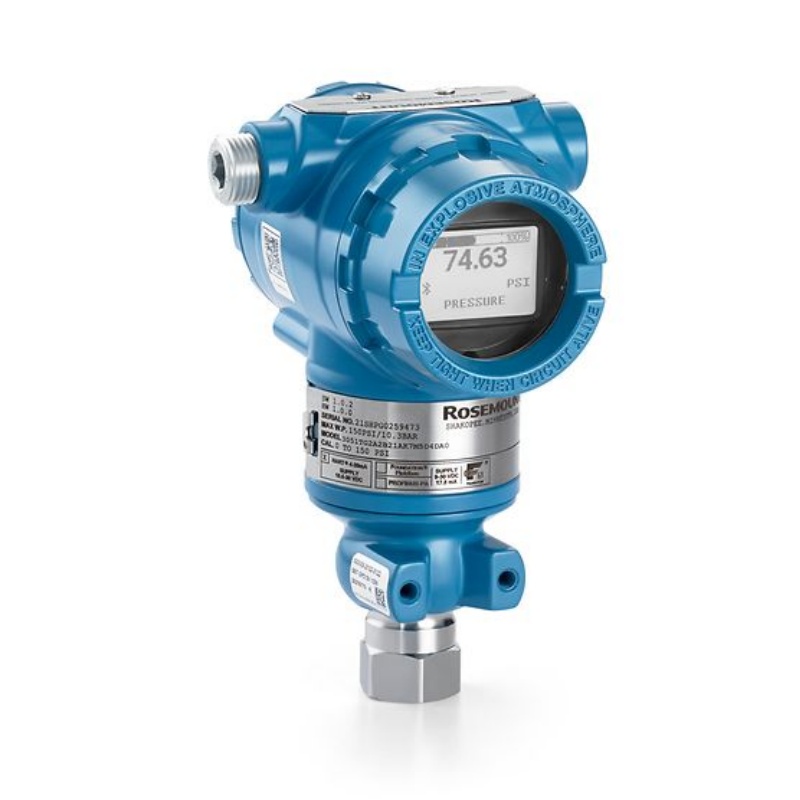

Rosemount 3051 In-Line Pressure Transmitter

Ensure confidence in pressure and level measurements with the Rosemount 3051 In-Line Pressure Transmitter. Engineered for exceptional 10-year installed stability and boasting an impressive accuracy of 0.04% of span, this high-end pressure transmitter provides vital information for seamless process operation, control, and monitoring. It incorporates advanced features including a graphical, back-lit display, Bluetooth® connectivity, and cutting-edge software capabilities, facilitating swift access to the necessary data. Embrace newfound efficiency like never before with this outstanding solution.

Category: EMERSON ROSEMOUNT

Send Inquiry

Description

Specifications

Warranty	Up to 5-year limited warranty
Rangedown	Up to 150:1
Communication Protocol	4-20 MA HART^®, WirelessHART^®, FOUNDATION™ fieldbus, PROFIBUS^® PA, 1-5 V Low Power HART^®
Measurement Range	Up to 20000 psig (1378,95 bar) gage Up to 20000 psia (1378,95 bar) absolute
Process Wetted Material	316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
Diagnostics	Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals	SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE^®, hazardous location, see full specs for complete list of certifications
Update Rate	1 sec. to 60 min., user selectable
Power Module Life	Up to 10-year life, field replaceable (order separately)
Wireless Range	Internal antenna (225 m)
Features	In-line gage and absolute pressure measurements support up to 20,000 psi (1378,95 bar) for pressure or level solutions Application specific configuration allows you to transform your pressure transmitter into a level transmitter with volume calculations Complete pressure or level assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation 10-year installed stability a nd 150:1 rangedown produce reliable measurements and wide application flexibility Bluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration tool The graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditions Loop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtime Quick service buttons offer built-in configuration buttons for streamlined commissioning SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
Wireless Features	WirelessHART® technology is secure and cost-effective and delivers >99% data reliability SmartPower module provides up to 10-year maintenance-free operation and field replacement without transmitter removal Easy installation enables quick instrumentation of measurement points without the cost of wiring
