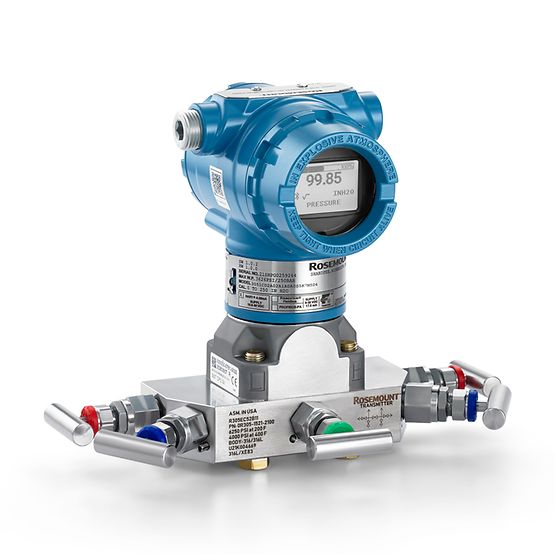

Rosemount 3051CD differential pressure transmitter
With exceptional performance, reliability, and security, the installed capacity of this solution exceeds 7 million. It offers a reference accuracy range of 0.04% and maintains total installation performance within a measurement range of 0.14%. The stability of the system can be upheld within 0.1% of the URL for an impressive duration of 12 years. Additionally, it holds SIL2/3 certification according to IEC 61508 standards.
With exceptional performance, reliability, and security, the installed capacity of this solution exceeds 7 million. It offers a reference accuracy range of 0.04% and maintains total installation performance within a measurement range of 0.14%. The stability of the system can be upheld within 0.1% of the URL for an impressive duration of 12 years. Additionally, it holds SIL2/3 certification according to IEC 61508 standards.
Specifications
| Extended warranty period |
5 years Limited warranty
|
| Rangedown |
Up to 150:1
|
| Communication Protocol | 4-20 Ma Hart ® No filter ® Ground Bus Foundation ™ Profibus ® Dad 1-5 V Hart low power consumption ® |
| Measurement Range | 3051CD0 ± 747 Pa 3051CD1 ± 6.22 kPa 3051CD2 ± 62.2 kPa 3051CD3 ± 248kPa 3051CD4 ± 2070kPa 3051CD5 ± 13789kPa |
| Handling materials in contact with fluids | 316L stainless steel, C-276 alloy, 400 alloy, tantalum, 316L gold-plated stainless steel, 400 gold-plated alloy |
Download
